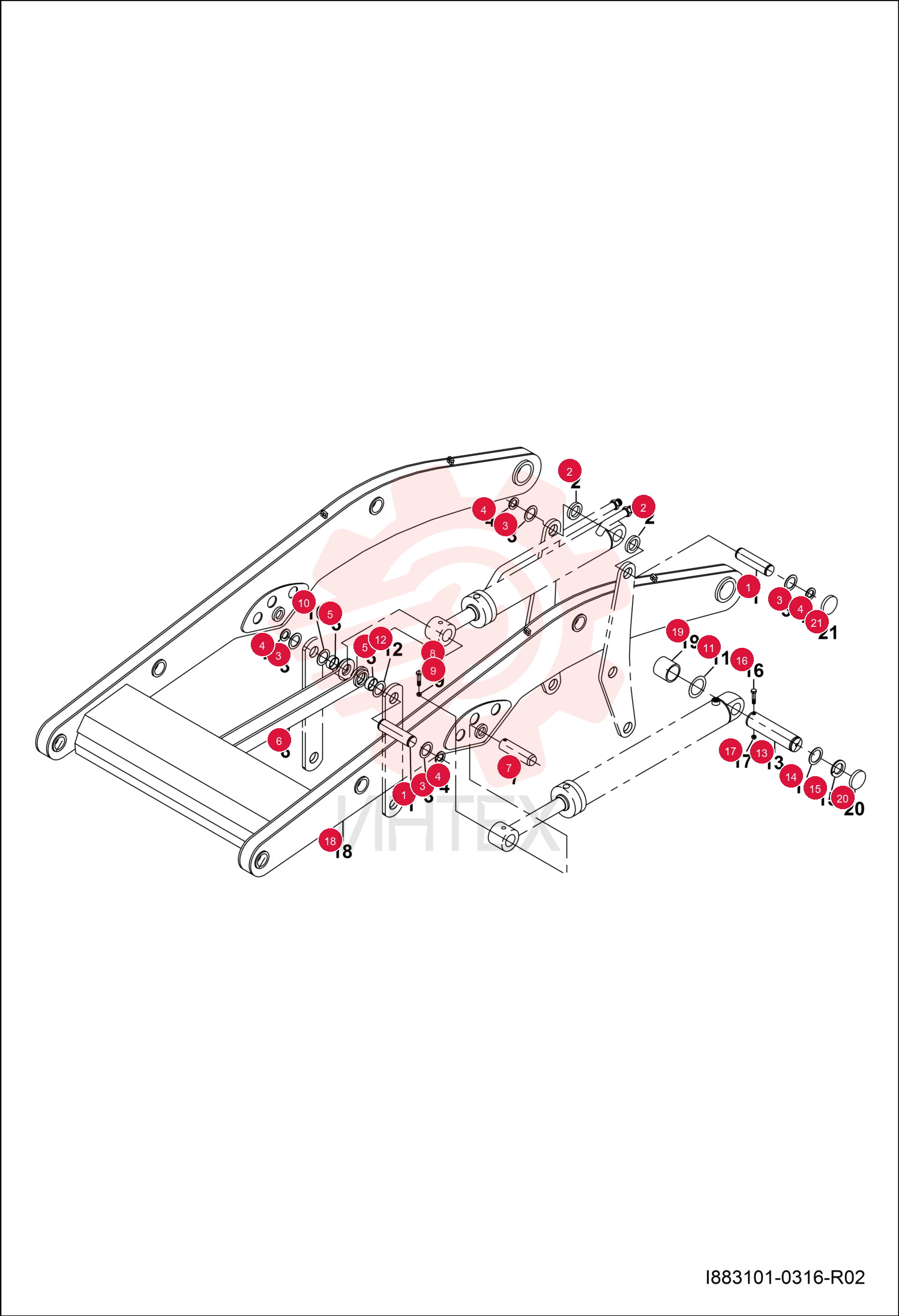

PIN BASE CYLINDER 7292520 (1)

PIN BASE CYLINDER 7292520 (1)

PIN BASE CYLINDER 7292520 (1)

1 7292520

  • 7292520 - PIN BASE CYLINDER

2 7292521

  • 7292521 - WASHER FLAT

3 7290745

  • 7290745 - WASHER FLAT

4 7290746

  • 7290746 - WASHER

5 7292522

  • 7292522 - BUSHING PIVOT

6 7304328

  • 7304328 - LEVER ASSEMBLY

7 7292524

  • 7292524 - PIN PIVOT

8 7292525

  • 7292525 - BOLT HEX

9 7288888

  • 7288888 - NUT HEX

10 7292526

  • 7292526 - SHIM RING

11 7290679

  • 7290679 - WASHER FLAT

12 7292527

  • 7292527 - SHIM RING

13 7292528

  • 7292528 - PIN CYLINDER

14 7290774

  • 7290774 - WASHER FLAT

15 7290773

  • 7290773 - SEGMENT

16 7290719

  • 7290719 - BOLT HEX

17 7289514

  • 7289514 - NUT HEX

18 7292529

  • 7292529 - LOADER BOOM ASSEMBLY

19 7292531

  • 7292531 - BUSHING PIVOT

20 7292532

  • 7292532 - PLUG PIPE

21 7292533

  • 7292533 - PLUG PIPE
