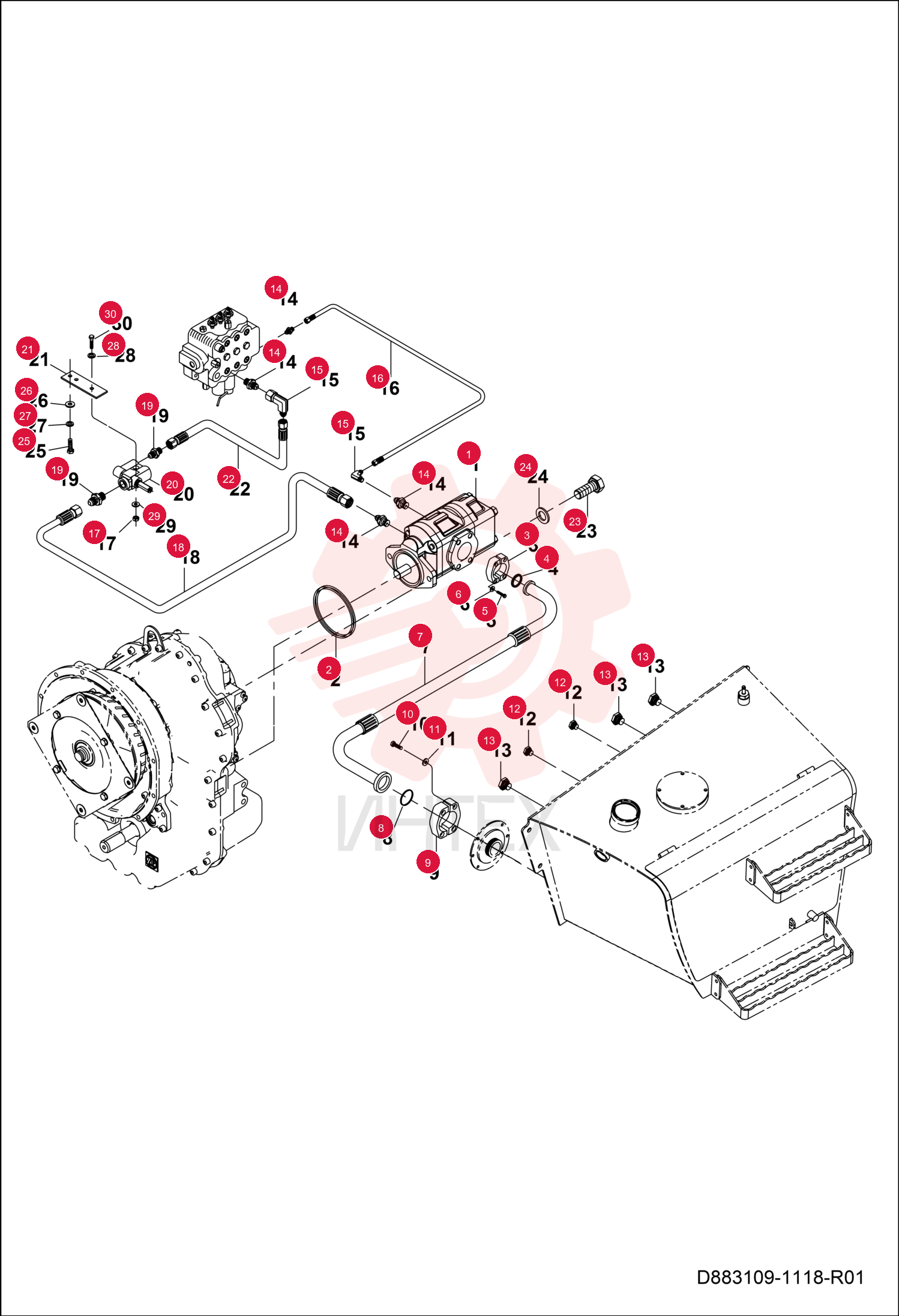

PUMP 7291463 (2)

PUMP 7291463 (2)

PUMP 7291463 (2)

1 7291463

  • 7291463 - PUMP

2 7291464

  • 7291464 - O-RING

3 7289743

  • 7289743 - FLANGE

4 7291465

  • 7291465 - O-RING

5 7289752

  • 7289752 - BOLT HEX

6 7289635

  • 7289635 - WASHER LOCK

7 7291466

  • 7291466 - HOSE

8 7289755

  • 7289755 - O-RING

9 7289756

  • 7289756 - FLANGE

10 7289757

  • 7289757 - BOLT

11 7289758

  • 7289758 - WASHER LOCK

12 7289761

  • 7289761 - PLUG MALE

13 7289762

  • 7289762 - PLUG DRAIN

14 7289748

  • 7289748 - FITTING

15 7291467

  • 7291467 - FITTING HYDRAULIC

16 7291468

  • 7291468 - HOSE ASS'Y

17 7289263

  • 7289263 - NUT HEX

18 7291469

  • 7291469 - HOSE ASS'Y

19 7289740

  • 7289740 - FITTING

20 7371066

  • 7371066 - PRIORITY VALVE

21 7299326

  • 7299326 - BRACKET

22 7291471

  • 7291471 - HOSE ASS'Y

23 7289750

  • 7289750 - BOLT HEX

24 7289751

  • 7289751 - WASHER

25 7289849

  • 7289849 - BOLT HEX

26 7288892

  • 7288892 - WASHER FLAT

27 7289259

  • 7289259 - WASHER LOCK

28 7288891

  • 7288891 - WASHER LOCK

29 7291472

  • 7291472 - WASHER

30 7289753

  • 7289753 - BOLT
