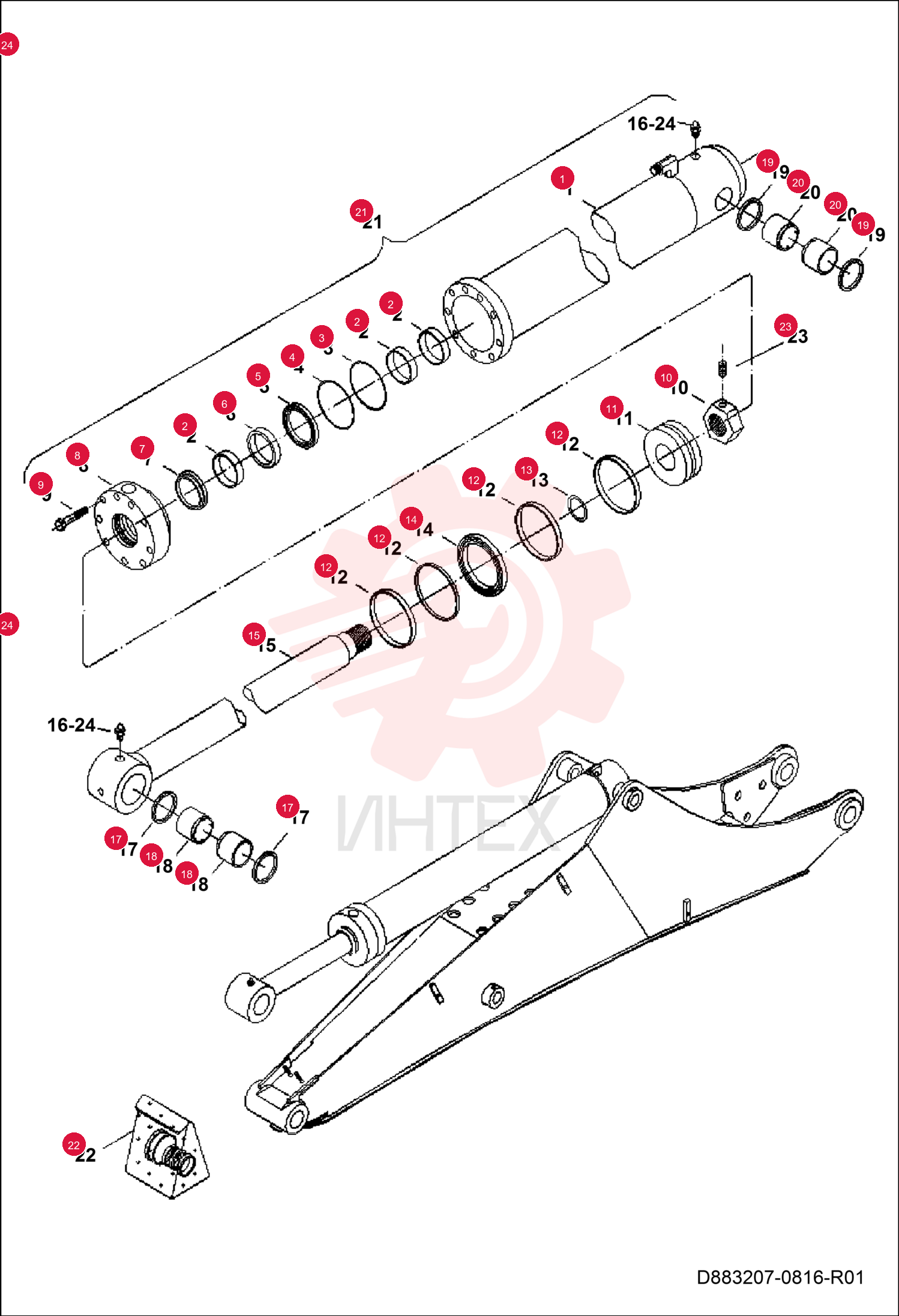

CYLINDER PIPE ASSEMBLY 7291603 (2)

CYLINDER PIPE ASSEMBLY 7291603 (2)

CYLINDER PIPE ASSEMBLY 7291603 (2)

1 7291603

  • 7291603 - CYLINDER PIPE ASSEMBLY

2 7291591

  • 7291591 - RING TEFLON

3 7289874

  • 7289874 - RING BACK-UP

4 7289873

  • 7289873 - O-RING

5 7291604

  • 7291604 - OMEGAT

6 7289845

  • 7289845 - NUT RING

7 7289911

  • 7289911 - SEAL DUST

8 7291605

  • 7291605 - GUIDE

9 7291594

  • 7291594 - BOLT HEX

10 7291606

  • 7291606 - NUT HEX

11 7311463

  • 7311463 - PISTON

12 7289918

  • 7289918 - RING TEFLON

13 7291608

  • 7291608 - O-RING

14 7289879

  • 7289879 - OMEGAT

15 7304246

  • 7304246 - ROD ASSEMBLY

16 7289862

  • 7289862 - FITTING GREASE

17 7291610

  • 7291610 - DUST SEAL

18 7291611

  • 7291611 - SEAL BUSHING

19 7289943

  • 7289943 - SEAL DUST

20 7291612

  • 7291612 - BUSHING PIVOT

21 7311464

  • 7311464 - STICK CYLINDER ASSY

22 7291614

  • 7291614 - KIT
  • REPAIR

23 7291544

  • 7291544 - SCREW SET

24 7289871

  • 7289871 - GREASER COVER
