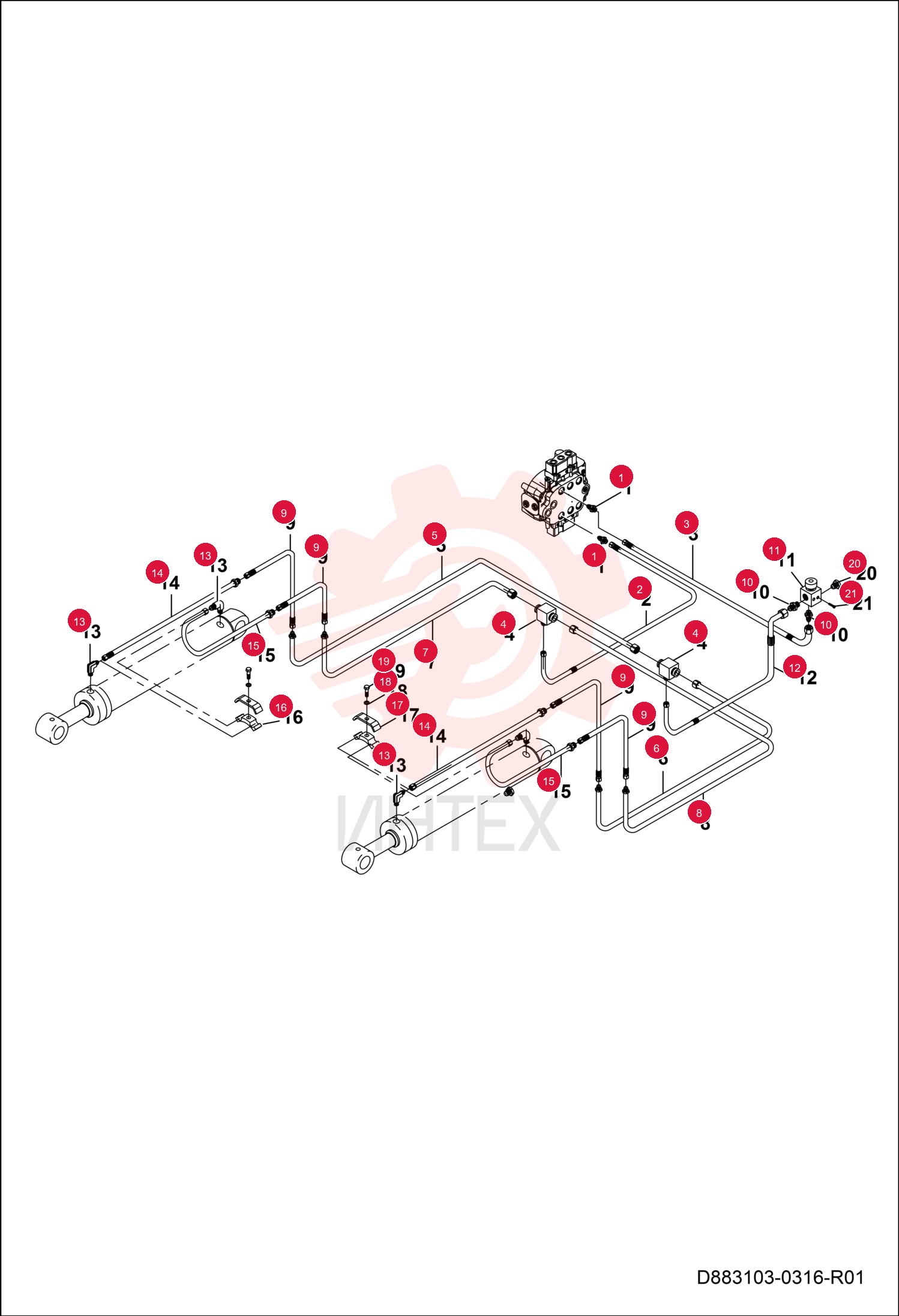

FITTING HYDRAULIC 7291308 (6)

FITTING HYDRAULIC 7291308 (6)

FITTING HYDRAULIC 7291308 (6)

1 7291308

  • 7291308 - FITTING HYDRAULIC

2 7291362

  • 7291362 - HOSE

3 7291363

  • 7291363 - HOSE

4 7291364

  • 7291364 - FITTING

5 7291365

  • 7291365 - PIPE RIGHT

6 7291366

  • 7291366 - PIPE LEFT

7 7291367

  • 7291367 - PIPE RIGHT

8 7291368

  • 7291368 - PIPE LEFT

9 7291369

  • 7291369 - HOSE HYDRAULIC

10 7304199

  • 7304199 - FITTING

11 7304061

  • 7304061 - VALVE

12 7304200

  • 7304200 - HOSE

13 7291357

  • 7291357 - FITTING HYDRAULIC

14 7291373

  • 7291373 - PIPE

15 7291374

  • 7291374 - PIPE

16 7291375

  • 7291375 - CLAMP PIPE

17 7291376

  • 7291376 - CLAMP PIPE

18 7289278

  • 7289278 - WASHER FLAT

19 7291377

  • 7291377 - BOLT

20 7304062

  • 7304062 - PLUG

21 7291457

  • 7291457 - BOLT HEX
