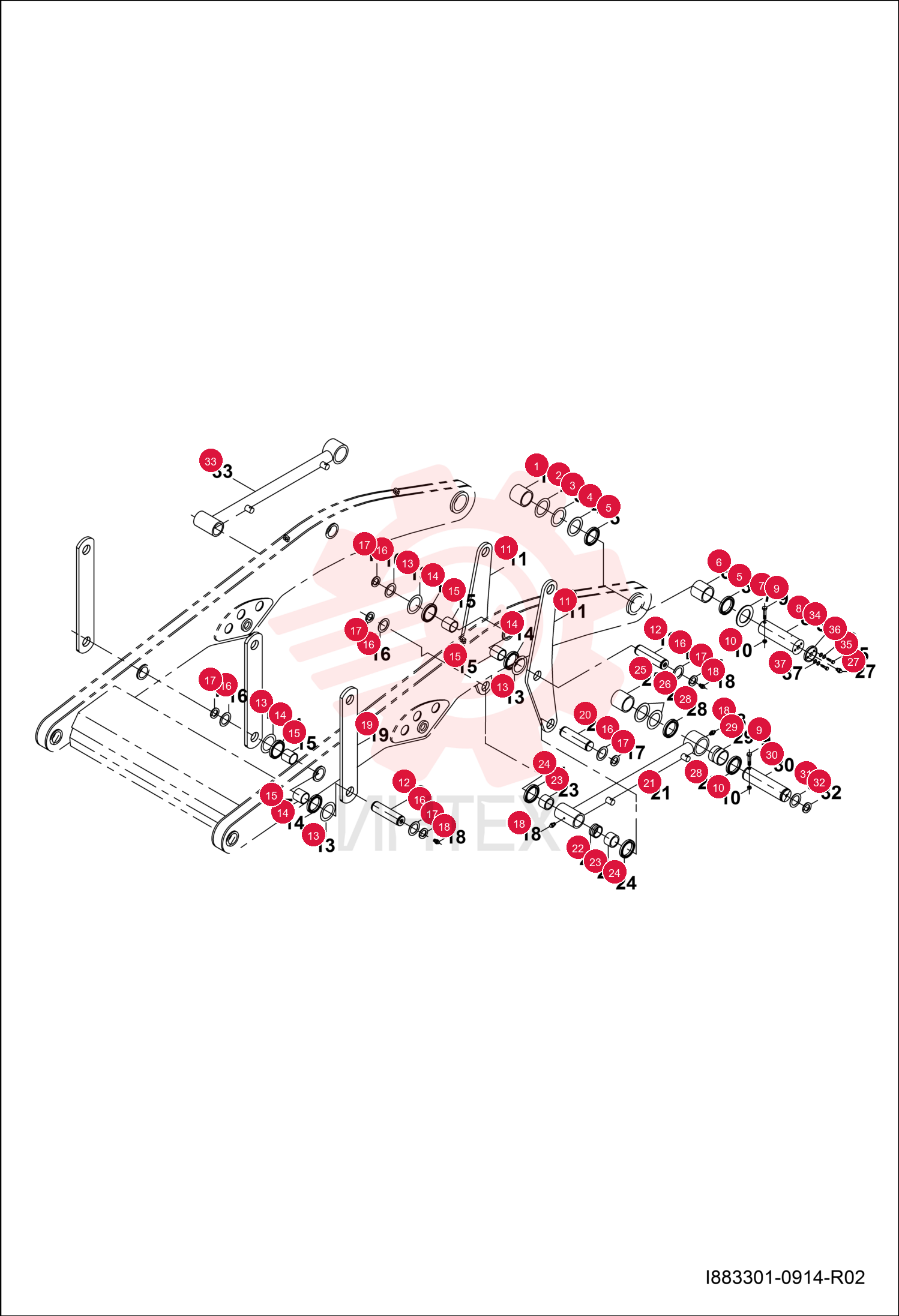

BUSHING PIVOT 7292534 (2)

BUSHING PIVOT 7292534 (2)

BUSHING PIVOT 7292534 (2)

1 7292534

  • 7292534 - BUSHING PIVOT

2 7292535

  • 7292535 - SHIM RING

3 7292536

  • 7292536 - SHIM RING

4 7292537

  • 7292537 - SHIM RING

5 7292538

  • 7292538 - SEAL OIL

6 7292539

  • 7292539 - BUSHING PIVOT

7 7292540

  • 7292540 - WASHER FLAT

8 7292541

  • 7292541 - PIN PIVOT

9 7289980

  • 7289980 - BOLT HEX

10 7289514

  • 7289514 - NUT HEX

11 7292542

  • 7292542 - LEVER

12 7292543

  • 7292543 - PIN PIVOT

13 7292527

  • 7292527 - SHIM RING

14 7289943

  • 7289943 - SEAL DUST

15 7292544

  • 7292544 - BUSHING PIVOT

16 7290745

  • 7290745 - WASHER FLAT

17 7290746

  • 7290746 - WASHER

18 7289862

  • 7289862 - FITTING GREASE

19 7292545

  • 7292545 - FLAT LEVER

20 7292546

  • 7292546 - PIN PIVOT

21 7292547

  • 7292547 - ARM LEFT ASSEMBLY

22 7292548

  • 7292548 - BUSHING SPACER

23 7292549

  • 7292549 - BUSHING SPACER

24 7289920

  • 7289920 - SEAL DUST

25 7292550

  • 7292550 - BUSHING SPACER

26 7292551

  • 7292551 - SHIM RING

27 7292552

  • 7292552 - GREASER

28 7292490

  • 7292490 - SEAL DUST

29 7292553

  • 7292553 - BUSHING SPACER

30 7292554

  • 7292554 - PIN PIVOT

31 7292555

  • 7292555 - WASHER FLAT

32 7292556

  • 7292556 - SEGMENT

33 7292557

  • 7292557 - ARM RIGHT ASSEMBLY

34 7292558

  • 7292558 - FLANGE SEAL

35 7292559

  • 7292559 - BOLT HEX

36 7292560

  • 7292560 - WASHER

37 7289259

  • 7289259 - WASHER LOCK
