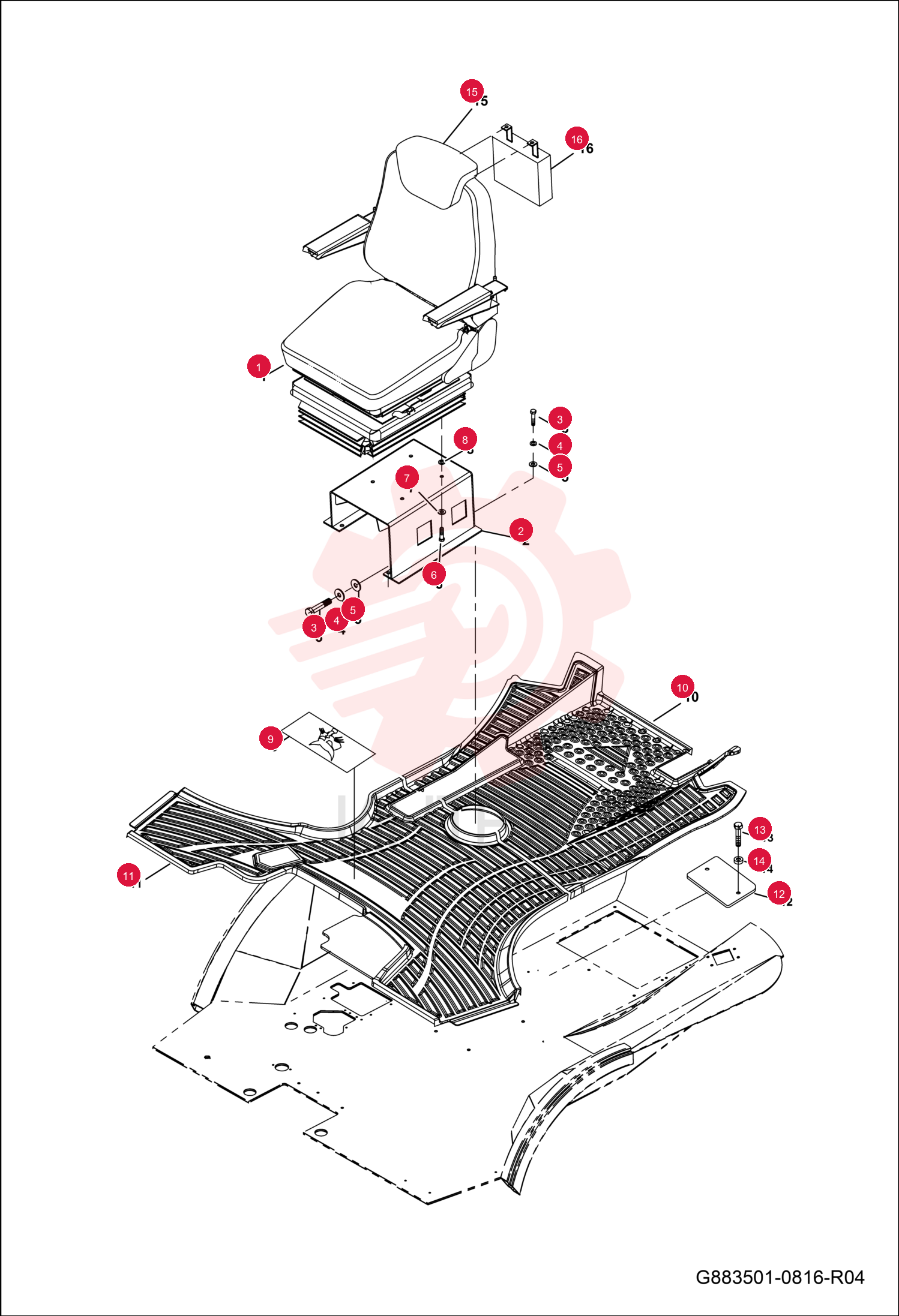

SEAT 7292191 (3)

SEAT 7292191 (3)

SEAT 7292191 (3)

1 7292191

  • 7292191 - SEAT

2 7292193

  • 7292193 - PLATE

3 7289258

  • 7289258 - BOLT HEX

4 7289259

  • 7289259 - WASHER LOCK

5 7289278

  • 7289278 - WASHER FLAT

6 7289261

  • 7289261 - BOLT HEX

7 7288891

  • 7288891 - WASHER LOCK

8 7288892

  • 7288892 - WASHER FLAT

9 7292194

  • 7292194 - COVER

10 7292196

  • 7292196 - MAT (REAR)

11 7292198

  • 7292198 - MAT (FRONT)

12 7292199

  • 7292199 - PLATE

13 7291292

  • 7291292 - SCREW MACHINE

14 7289598

  • 7289598 - WASHER FLAT

15 7292200

  • 7292200 - SEAT HEAD

16 7304146

  • 7304146 - BAG
