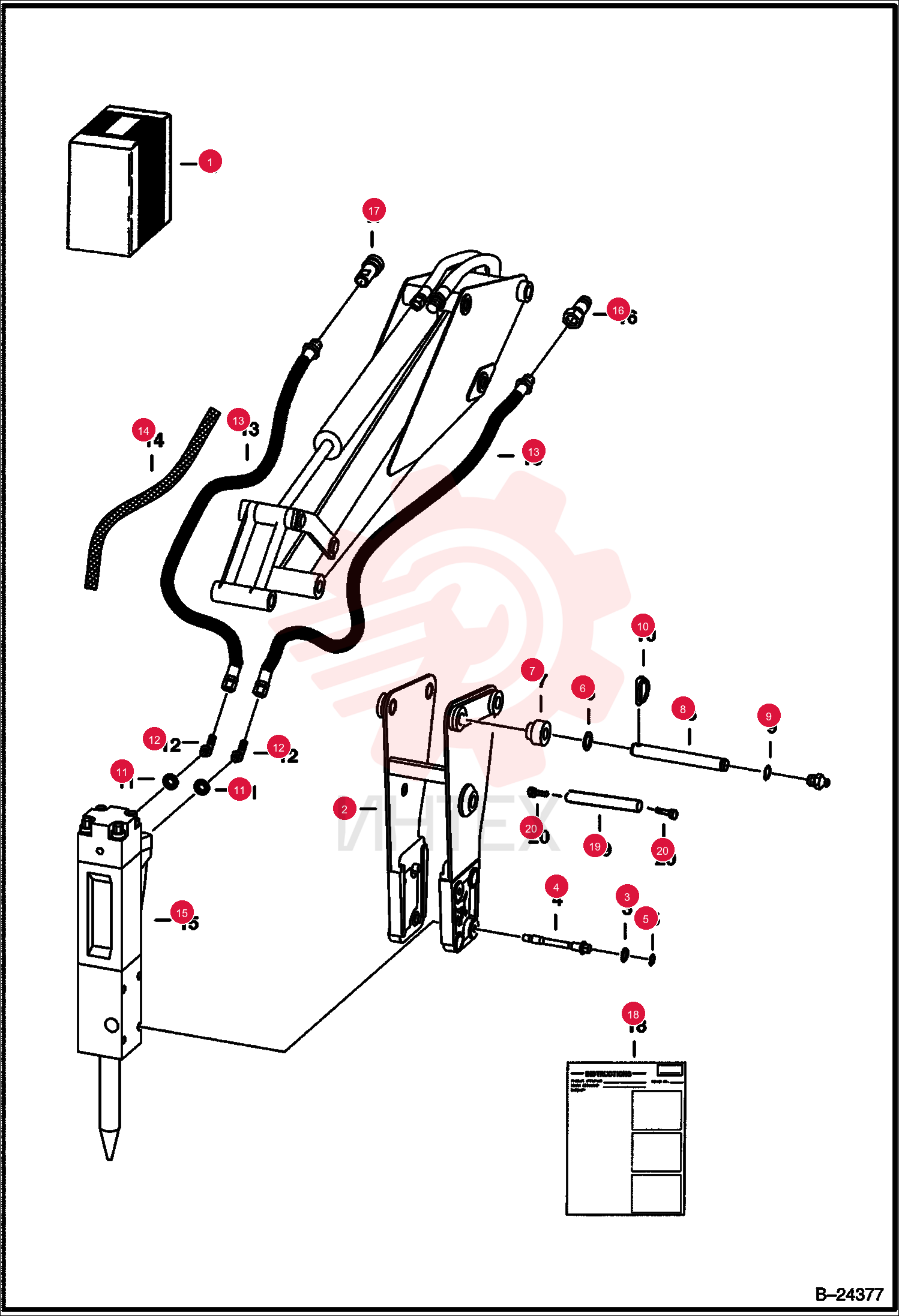

MTG FRAME 6705592 (3)

MTG FRAME 6705592 (3)

MTG FRAME 6705592 (3)

1 6705592

  • 6705592 - MTG FRAME

2 6728010

  • 6728010 - WASHER
  • Locking - Was 6662308

3 6662307

  • 6662307 - BOLT

4 6662309

  • 6662309 - RING
  • RETAINER

5 6584872

  • 6584872 - WASHER 5

6 6705536

  • 6705536 - BUSHING

7 6705593

  • 6705593 - PIN

8 22J24

  • 22J24 - RING
  • SNAP
  • Was 6538285

9 6560382

  • 6560382 - PIN
  • LOCK

10 79K12

  • 79K12 - O RING 10

11 18K8

  • 18K8 - FTG

12 6714881

  • 6714881 - HOSE

13 6656155

  • 6656155 - BULK
  • HOSE
  • bulk - sold per foot

14 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

15 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

16 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

17 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

18 6722592

  • 6722592 - INSTRUCTS (SALES ITEM)

19 6715741

  • 6715741 - SUPP BAR
  • support

20 31C832

  • 31C832 - SCREW FLGD HEX CAP
