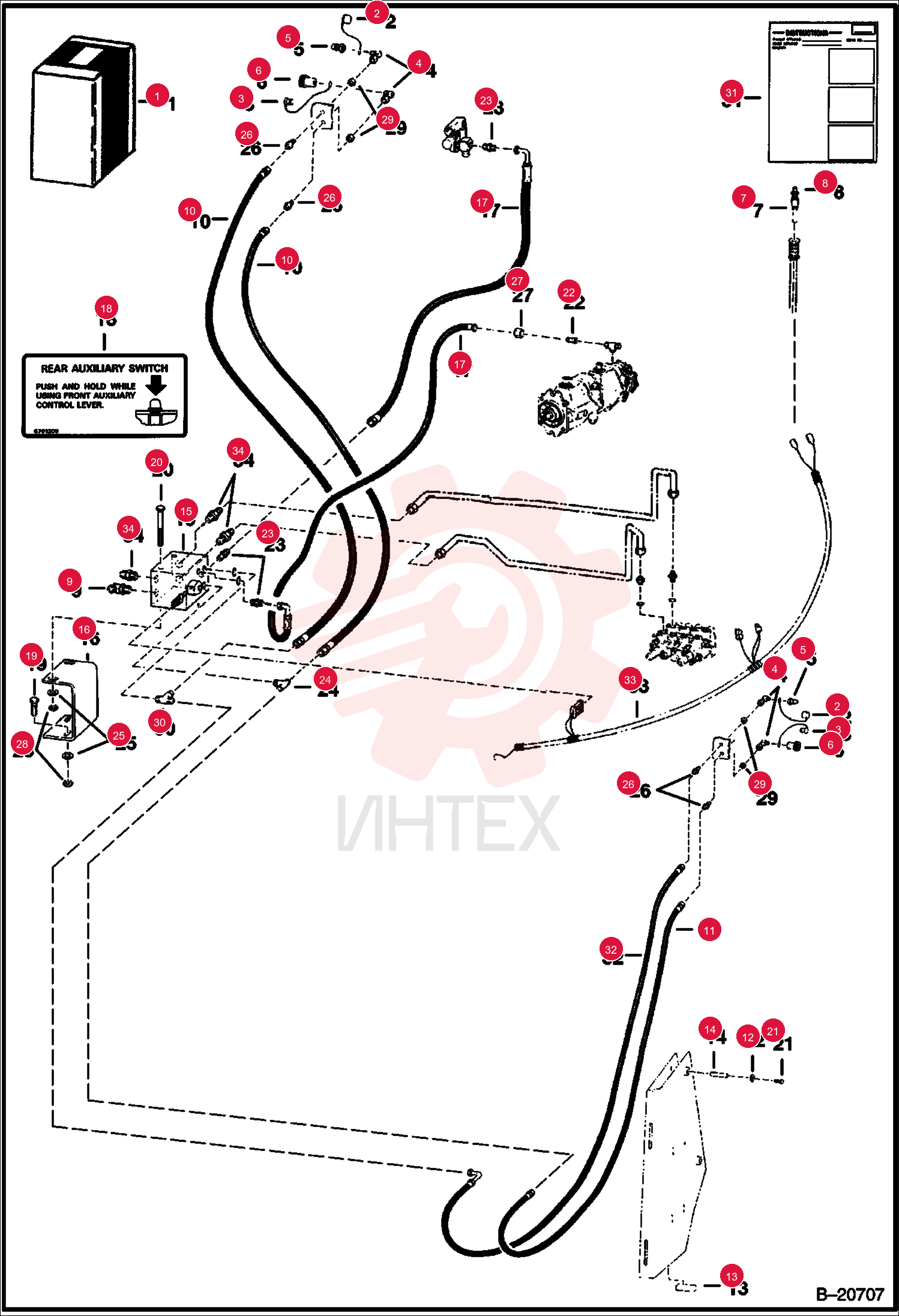

R HYD KIT 6702627

R HYD KIT 6702627

R HYD KIT 6702627

1 6702627

  • 6702627 - R HYD KIT
  • Was SALES

2 1513549

  • 1513549 - CAP

3 1519324

  • 1519324 - PLUG
  • coupler

4 1631632

  • 1631632 - ELBOW

5 2341398

  • 2341398 - COUPLER
  • male

6 2342026

  • 2342026 - COUPLING
  • female

7 6513482

  • 6513482 - SWITCH
  • PUSH BUTTON

8 6660205

  • 6660205 - SEAL SWITCH ARMORED
  • Was 6513483

9 6515589

  • 6515589 - ELBOW

10 6563437

  • 6563437 - HOSE

11 6563438

  • 6563438 - HOSE

12 6564692

  • 6564692 - WASHER

13 6567082

  • 6567082 - BLOCK
  • mounting

14 6567702

  • 6567702 - PIN

15 6701167

  • 6701167 - MOUNT
  • diverter valve

16 6701203

  • 6701203 - HOSE

17 6701208

  • 6701208 - DECAL

18 17C624

  • 17C624 - BOLT 5

19 17C680

  • 17C680 - BOLT

20 17C816

  • 17C816 - BOLT

21 9K4

  • 9K4 - ADAPTER

22 15K3

  • 15K3 - CONNECTOR HYDRAULIC SHORT

23 19K5

  • 19K5 - FITTING

24 25E18

  • 25E18 - WASHER FLAT PLAIN

25 45K5

  • 45K5 - FITTING

26 80F7

  • 80F7 - NUT

27 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

28 86F5

  • 86F5 - NUT

29 21K5

  • 21K5 - TEE

30 6720314

  • 6720314 - INSTRUCTIONS

31 6537282

  • 6537282 - HOSE

32 6702963

  • 6702963 - HARNESS

33 15KB1012

  • 15KB1012 - FTG HYD S CONNECTOR
  • Was 755055B
