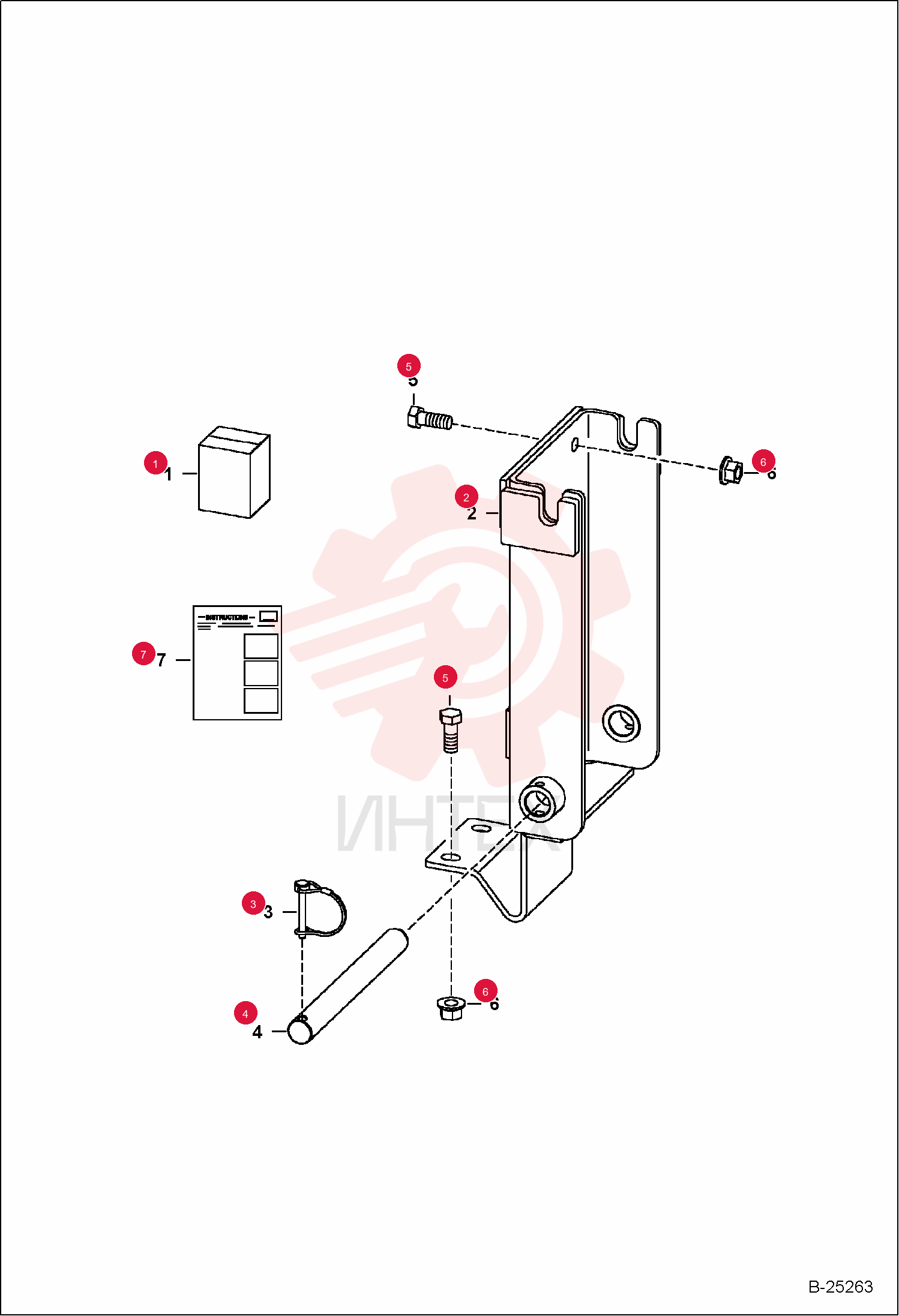

MOUNT, STABILIZER 6733733

MOUNT, STABILIZER 6733733

MOUNT, STABILIZER 6733733

1 6733733

  • 6733733 - MOUNT
  • STABILIZER

2 6656009

  • 6656009 - PIN

3 6734341

  • 6734341 - PIN
  • PIVOT

4 17C820

  • 17C820 - BOLT 5

5 83D8

  • 83D8 - LKNUT HEX FLG GR8

6 6902072

  • 6902072 - INSTRUCTIONS
