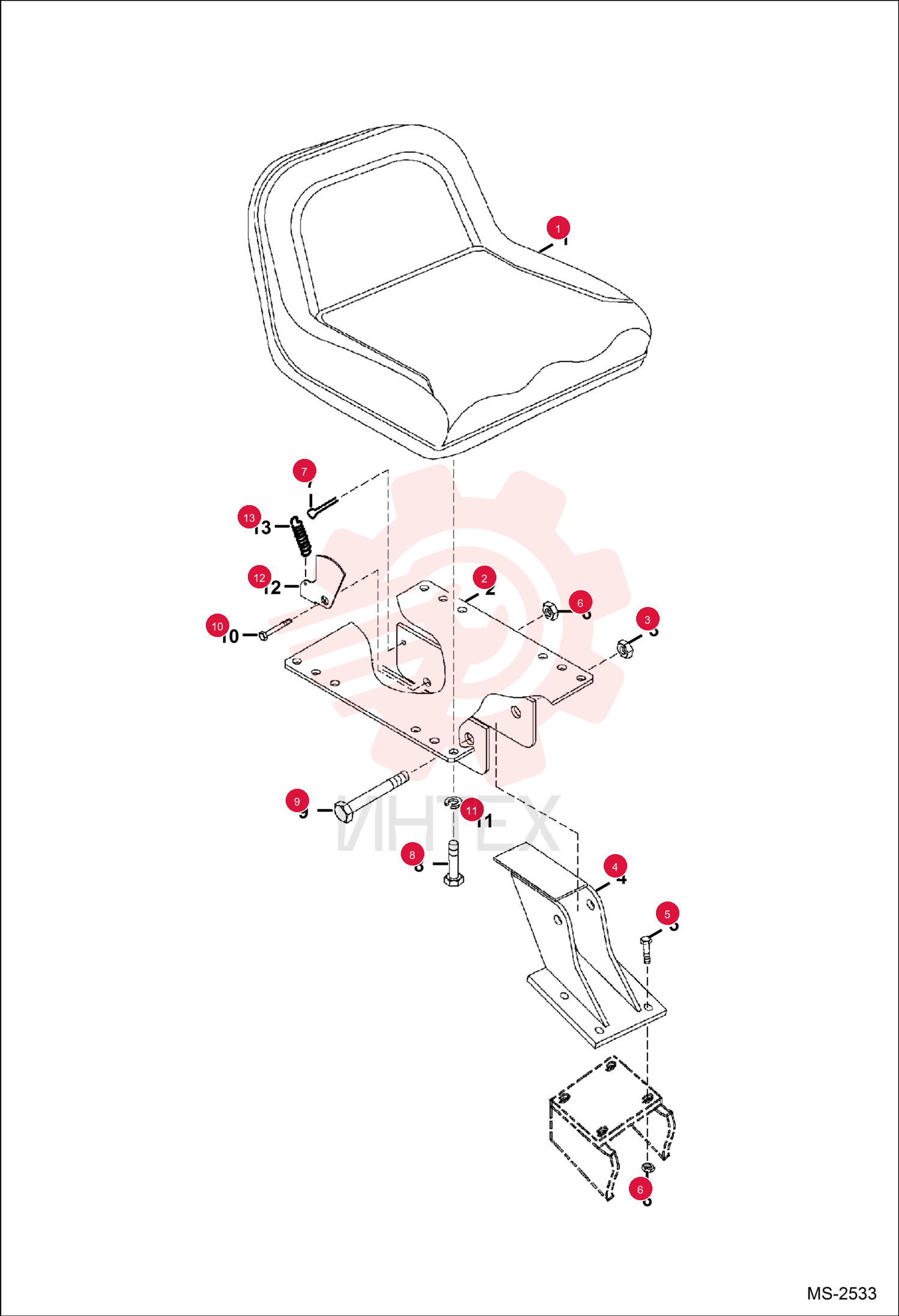

SEAT, BACKHOE 6693804

SEAT, BACKHOE 6693804

SEAT, BACKHOE 6693804

1 6693804

  • 6693804 - SEAT
  • BACKHOE

2 6693805

  • 6693805 - BRACKET
  • SEAT

3 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

4 6693801

  • 6693801 - BRACKET
  • SEAT

5 17C620

  • 17C620 - BOLT

6 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

7 1F612

  • 1F612 - COT.PIN

8 17C512

  • 17C512 - BOLT 5

9 17C856

  • 17C856 - BOLT

10 6698036

  • 6698036 - BOLT
  • SHOULDER

11 4E5

  • 4E5 - WASHER

12 6693729

  • 6693729 - LATCH
  • SEAT

13 6693730

  • 6693730 - SPRING
  • LATCH
