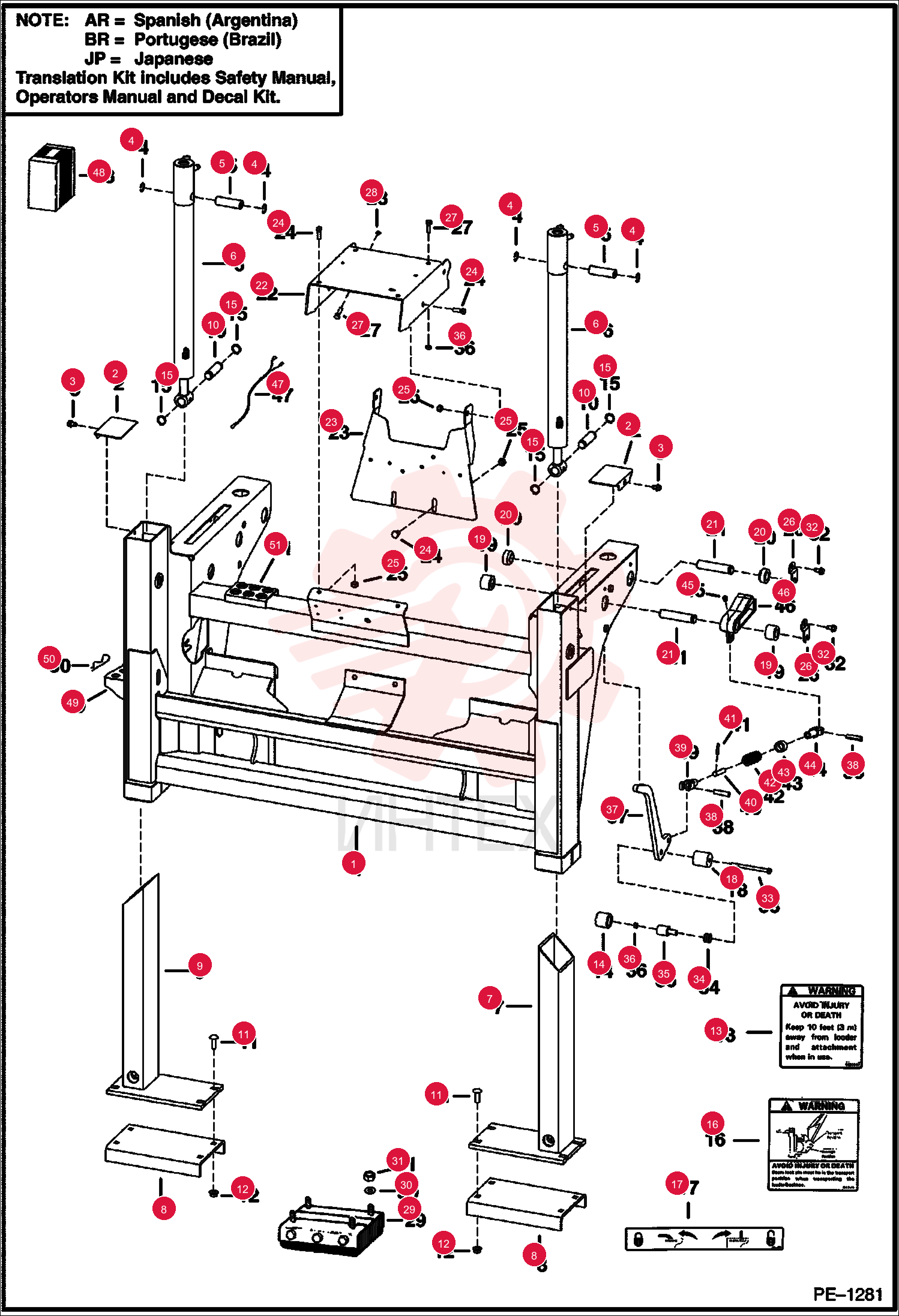

M. FRAME 6805531

M. FRAME 6805531

M. FRAME 6805531

1 6805531

  • 6805531 - M. FRAME

2 6808392

  • 6808392 - MAIN FRAME

3 84G3710

  • 84G3710 - SCREW

4 23J16

  • 23J16 - SNAP RING
  • Was 662770B

5 6560668

  • 6560668 - PIN

6 6806441

  • 6806441 - STABILIZER
  • L.H.

7 6531990

  • 6531990 - CLEAT

8 6806440

  • 6806440 - STABILIZER
  • R.H.

9 6560669

  • 6560669 - PIN

10 37C820

  • 37C820 - BOLT SQ NECK RND HD
  • Was 6529377

11 55D8

  • 55D8 - NUT

12 6583862

  • 6583862 - DECAL
  • WARNING
  • stabilizers

13 6586316

  • 6586316 - BUSHING

14 22J16

  • 22J16 - SNAP RING
  • Was 1320431B

15 6533215

  • 6533215 - DECAL
  • WARNING
  • Transport Warning

16 6535896

  • 6535896 - DECAL
  • L.H. lock

17 6535897

  • 6535897 - DECAL
  • R.H lock

18 6586323

  • 6586323 - BUSHING

19 6533176

  • 6533176 - BUSHING

20 6533177

  • 6533177 - BUSHING

21 6586308

  • 6586308 - PIN

22 6539017

  • 6539017 - CHANNEL

23 6806317

  • 6806317 - CHANNEL

24 17C612

  • 17C612 - SCREW HEX CAP

25 85D8

  • 85D8 - NUT PRETRQ HEX LOCK
  • NUT

26 6586307

  • 6586307 - RETAINER

27 17C620

  • 17C620 - BOLT

28 7D6

  • 7D6 - NUT
  • Nut

29 6660164

  • 6660164 - PAD
  • STREET

30 25E22

  • 25E22 - WASHER

31 61D8

  • 61D8 - NUT 5

32 84G3712

  • 84G3712 - SCREW THD ROLLING TT

33 17C680

  • 17C680 - BOLT

34 6704453

  • 6704453 - SPRING COMPRESSION

35 6586315

  • 6586315 - PIVOT

36 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

37 6805822

  • 6805822 - HANDLE

38 14J5032

  • 14J5032 - PIN CSPR STRAIGHT

39 6533159

  • 6533159 - CLEVIS

40 6533158

  • 6533158 - ROD

41 14J2520

  • 14J2520 - PIN

42 6578253

  • 6578253 - SPRING
  • COMPRESSION

43 6533160

  • 6533160 - BUSHING

44 6704248

  • 6704248 - PIVOT
  • WEDGE

45 10H25

  • 10H25 - FTG GREASE STRAIGHT

46 6586377

  • 6586377 - STOP

47 6719823

  • 6719823 - HARNESS

48 6808768AR

  • 6808768AR - KIT
  • TRANSLATION
  • Translation - SEE NOTE

49 6808768BR

  • 6808768BR - KIT
  • TRANSLATION
  • Translation - SEE NOTE

50 6808771AR

  • 6808771AR - KIT
  • DECAL
  • Decal - SEE NOTE

51 6808771BR

  • 6808771BR - KIT
  • DECAL
  • Decal - SEE NOTE

52 6808771JP

  • 6808771JP - KIT
  • DECAL
  • Decal - SEE NOTE

53 7232349

  • 7232349 - STEP
  • MFR
  • Was 7138104

54 6675029

  • 6675029 - PIN

55 6701943

  • 6701943 - STEP
