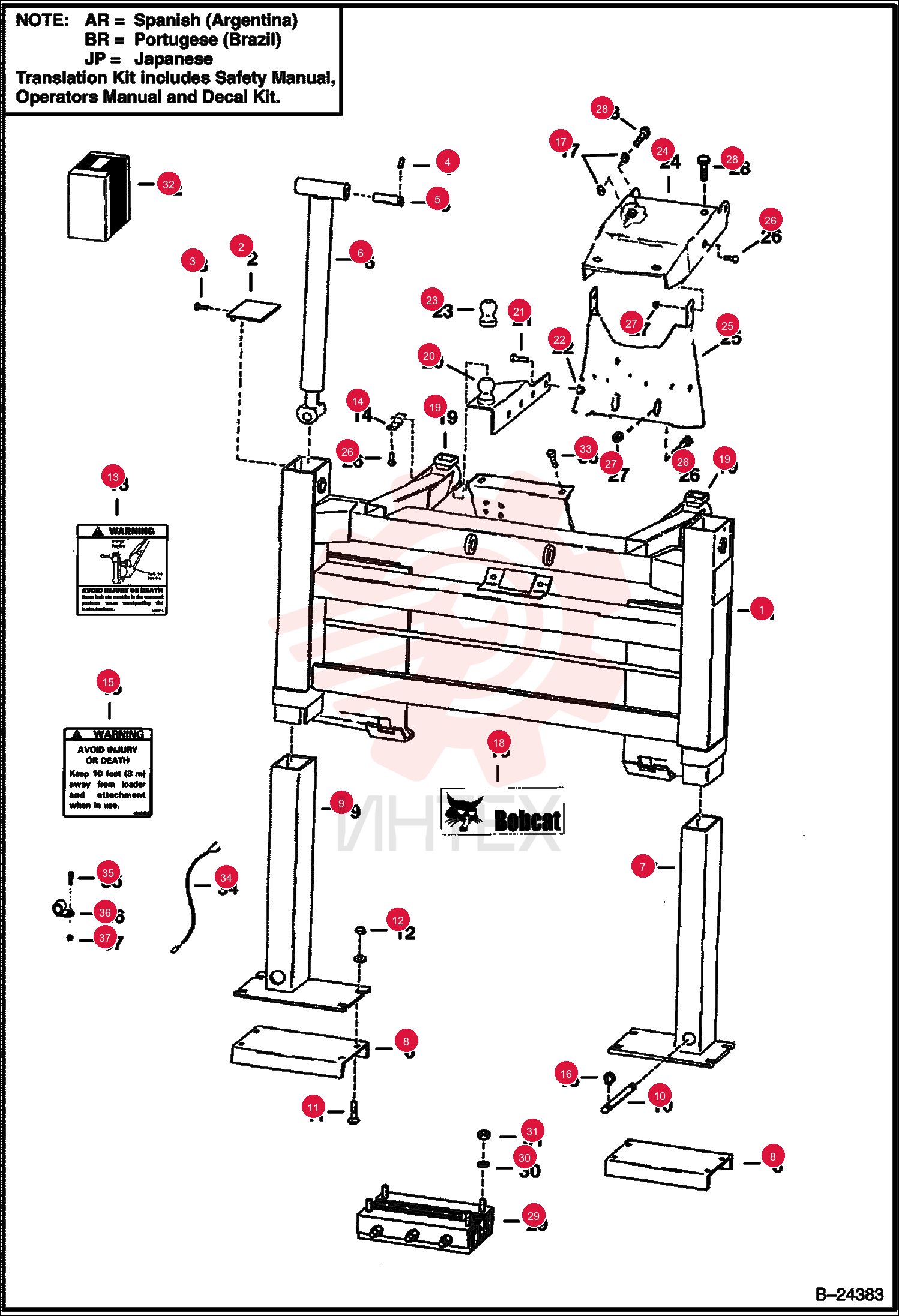

MAIN FRAME 6808854

MAIN FRAME 6808854

MAIN FRAME 6808854

1 6808854

  • 6808854 - MAIN FRAME

2 84G3710

  • 84G3710 - SCREW

3 23J16

  • 23J16 - SNAP RING
  • Was 662770B

4 6560668

  • 6560668 - PIN

5 6806441

  • 6806441 - STABILIZER
  • L.H. - Was 6538536

6 6531990

  • 6531990 - CLEAT

7 6806440

  • 6806440 - STABILIZER
  • R.H. - Was 6538538

8 6560669

  • 6560669 - PIN

9 37C820

  • 37C820 - BOLT SQ NECK RND HD
  • Was 6529377

10 55D8

  • 55D8 - NUT

11 6583862

  • 6583862 - DECAL
  • WARNING
  • stabilizers

12 6533215

  • 6533215 - DECAL
  • WARNING
  • Transport Warning

13 22J16

  • 22J16 - SNAP RING
  • Was 1320431B

14 7D6

  • 7D6 - NUT

15 7109473

  • 7109473 - DECAL
  • LOGO BOBCAT AND HEAD
  • Was 6727324

16 31C1028

  • 31C1028 - BOLT 5

17 83D10

  • 83D10 - NUT 5

18 6562203

  • 6562203 - HITCH

19 6806317

  • 6806317 - CHANNEL

20 17C816

  • 17C816 - BOLT

21 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

22 17C620

  • 17C620 - BOLT

23 6660164

  • 6660164 - PAD
  • STREET
  • Street

24 25E22

  • 25E22 - WASHER

25 61D8

  • 61D8 - NUT 5

26 6718785AR

  • 6718785AR - KIT
  • TRANSLATION
  • Translation - SEE NOTE

27 6718785BR

  • 6718785BR - KIT
  • TRANSLATION
  • Translation - SEE NOTE

28 6718786AR

  • 6718786AR - KIT
  • DECAL
  • Decal - SEE NOTE

29 6718786BR

  • 6718786BR - KIT
  • DECAL
  • Decal - SEE NOTE

30 6718786JP

  • 6718786JP - KIT
  • DECAL
  • Decal - SEE NOTE

31 17C612

  • 17C612 - SCREW HEX CAP

32 6719823

  • 6719823 - HARNESS

33 17C412

  • 17C412 - BOLT 5

34 30H21

  • 30H21 - CLAMP 10

35 61D4

  • 61D4 - NUT 5
