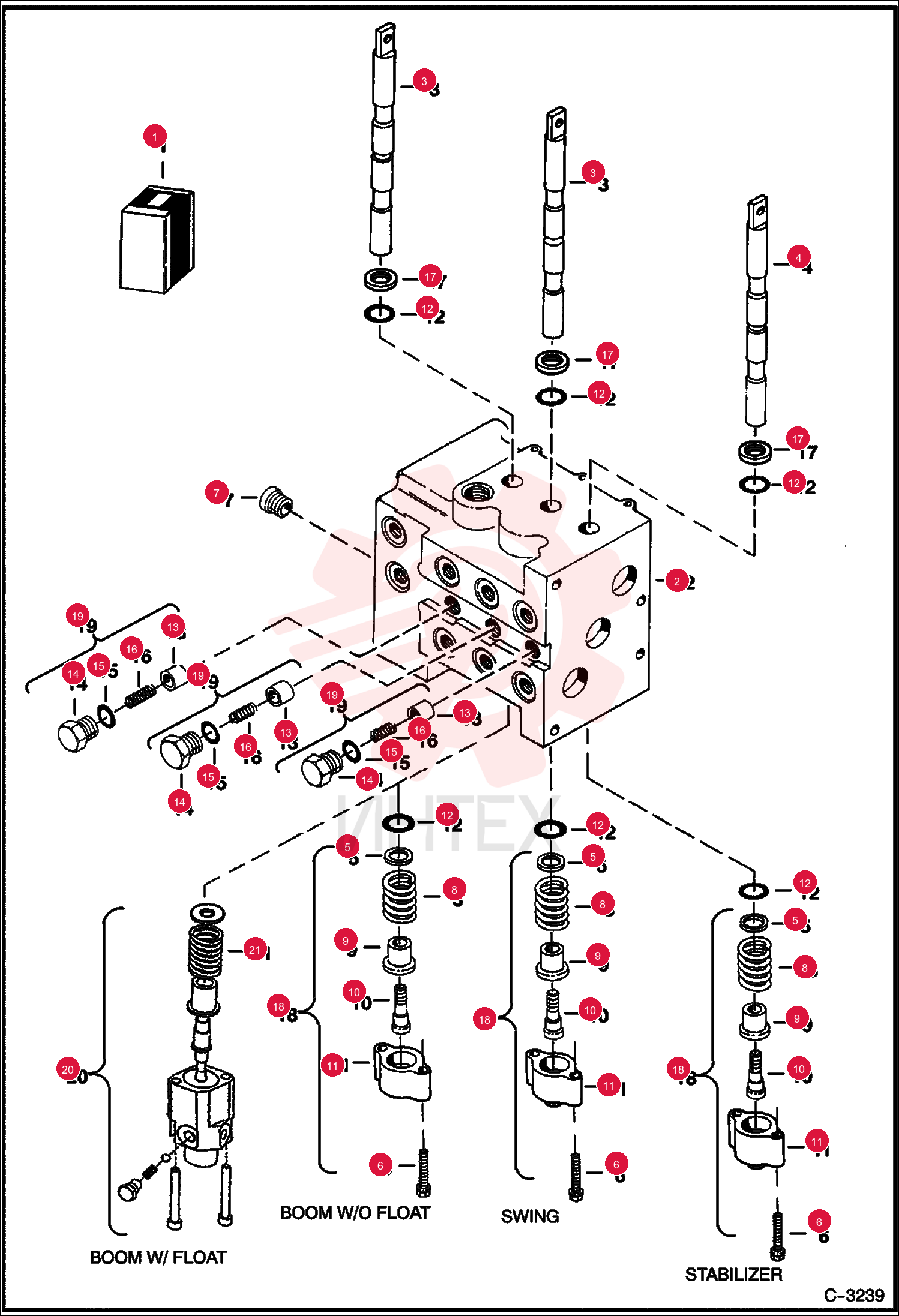

VALVE, SECTION 6675082 (2)

VALVE, SECTION 6675082 (2)

VALVE, SECTION 6675082 (2)

1 6675082

  • 6675082 - VALVE
  • SECTION
  • W/float - W/Ref. 2-17 & 21

2 6675080

  • 6675080 - PLUG
  • Was 6656422

3 6685530

  • 6685530 - O-RING
  • Was 6656431

4 6656428

  • 6656428 - VALVE

5 6656429

  • 6656429 - PLUG
  • W/Ref. 15

6 6656432

  • 6656432 - O-RING

7 6599472

  • 6599472 - SPRING
  • Was 6656430

8 6685527

  • 6685527 - RING
  • WIPER
  • wiper - Was 6658398

9 6656434

  • 6656434 - KIT
  • SPRING CENTERING
  • spring centering - W/Ref. 5
  • 6 & 8-11

10 6656433

  • 6656433 - KIT LOAD CHECK
  • load check - W/Ref. 13 - 16

11 6675081

  • 6675081 - KIT
  • FLOAT
  • centering spring with float - used with Danfoss 156B2348 valve

12 6675363

  • 6675363 - SPRING
  • centering
