Bobcat
/
DX19
/
FITTING 36K7

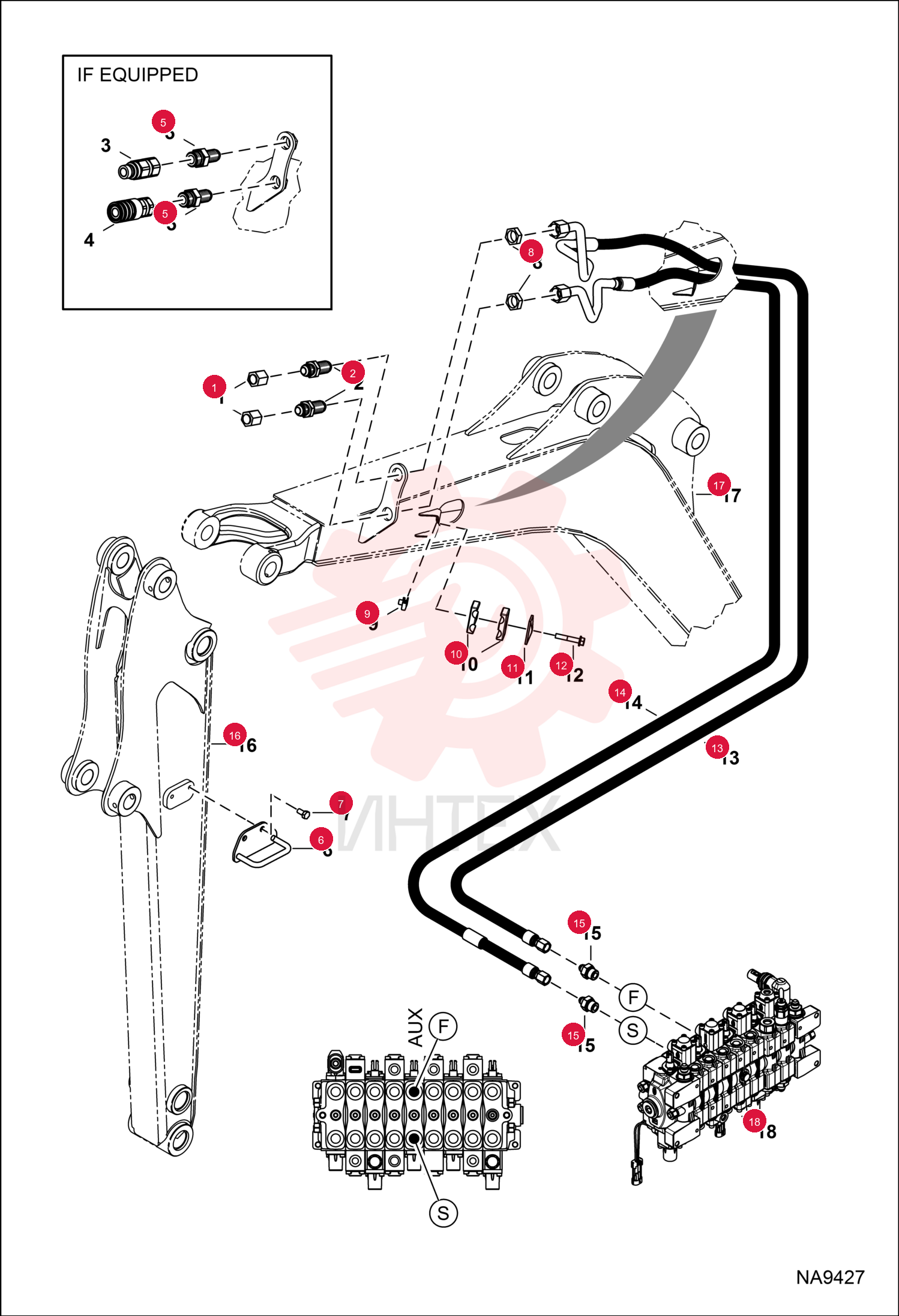

FITTING 36K7

FITTING 36K7

1 36K7

  • 36K7 - FITTING

2 45K7

  • 45K7 - CONNECTR

3 79K12

  • 79K12 - O RING 10

4 6812816

  • 6812816 - ADAPTER

5 7242179

  • 7242179 - PLATE
  • Was 7274620

6 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

7 86F7

  • 86F7 - NUT 5

8 6676169

  • 6676169 - NUT

9 6701893

  • 6701893 - CLAMP

10 6652521

  • 6652521 - PLATE

11 29CM845

  • 29CM845 - SCREW HEX FLANGE

12 79K8

  • 79K8 - O RING 10

13 7222668

  • 7222668 - HOSE
  • HYD

14 7222669

  • 7222669 - HOSE
  • HYD TUBE ASSY

15 15KB0608

  • 15KB0608 - FITTING
  • HYD CONNECTOR

16 7274617

  • 7274617 - ARM
  • SHORT
  • std

17 7274618

  • 7274618 - ARM
  • LONG
  • long

18 7274619

  • 7274619 - BOOM
