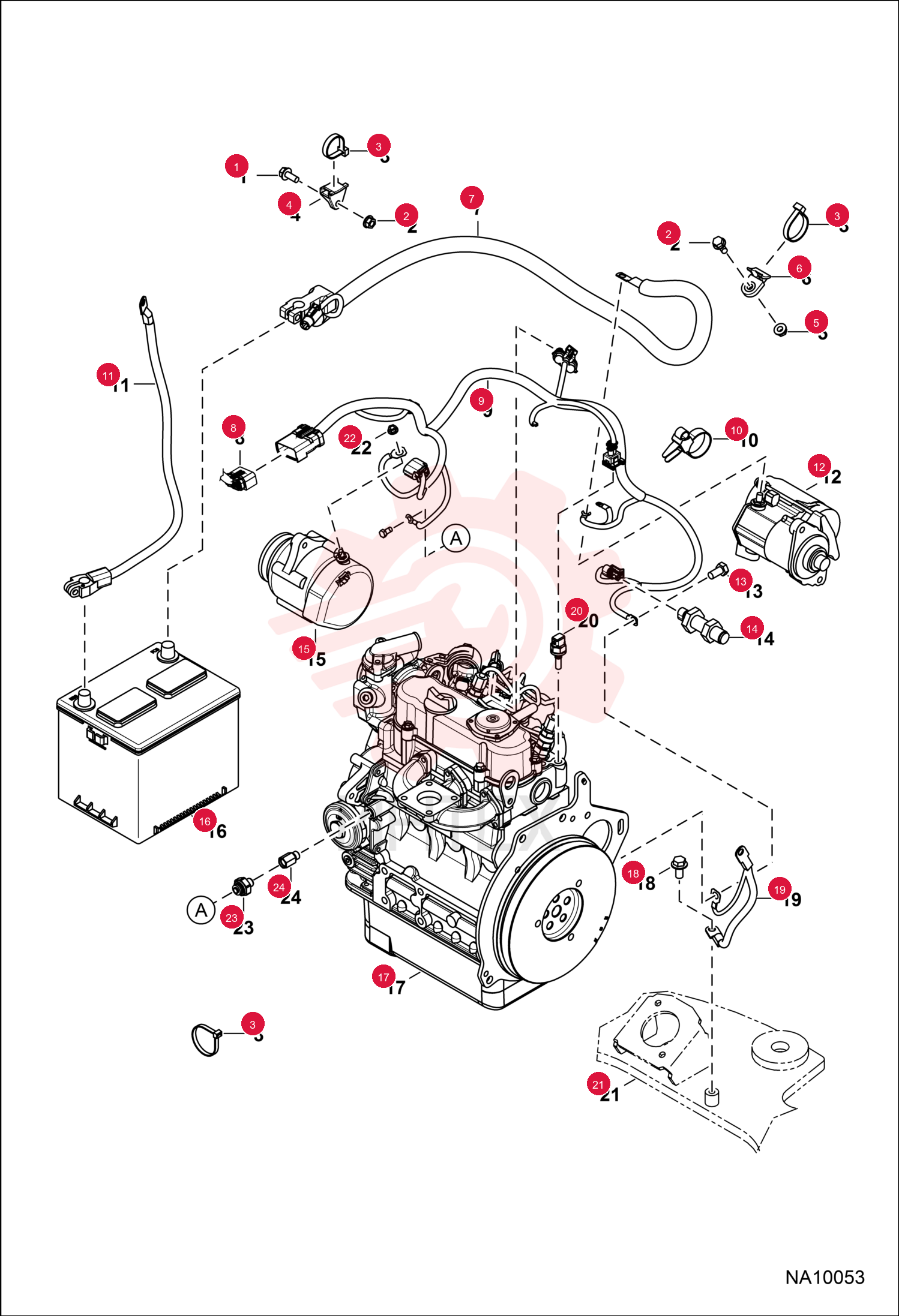

NUT FLANGED HEX 43DM8

NUT FLANGED HEX 43DM8

NUT FLANGED HEX 43DM8

1 43DM8

  • 43DM8 - NUT FLANGED HEX

2 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

3 6624289

  • 6624289 - STRAP
  • TIE

4 6678818

  • 6678818 - MOUNT

5 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

6 6684641

  • 6684641 - MOUNT

7 7217814

  • 7217814 - CABLE
  • POSITIVE

8 7244548

  • 7244548 - HARNESS
  • FRAME

9 7217815

  • 7217815 - HARNESS
  • ENG

10 6678668

  • 6678668 - STRAP

11 7220881

  • 7220881 - CABLE
  • NEGATIVE
  • 570 mm (22.44") long

12 7303319

  • 7303319 - CABLE BATTERY NEGATIVE
  • 550 mm (21.65") long

13 6691621

  • 6691621 - STARTER

14 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

15 6693921

  • 6693921 - SENSOR
  • RPM

16 6669618

  • 6669618 - ALTERNATOR
  • 40 AMP

17 7304126

  • 7304126 - BATTERY DRY
  • 500 AMP - 175 x 207 mm (6.90 x 8.15")

18 7312553

  • 7312553 - BATTERY 1000 CCA DRY
  • 173 x 221 mm (6.80 x 8.71") - Was 6665427

19 6670251

  • 6670251 - BATTERY 540 CCA DRY
  • 173 x 221 mm (6.80 x 8.71") - Was 7269858

20 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

21 7221651

  • 7221651 - CABLE
  • NEGATIVE

22 7230463

  • 7230463 - SENSOR
  • TEMP COOLANT

23 7224410

  • 7224410 - UPPERSTRUCTURE

24 43DM6

  • 43DM6 - NUT FLANGED HEX

25 6969775

  • 6969775 - SWITCH
  • OIL PRESSURE

26 6671058

  • 6671058 - ADAPTER
