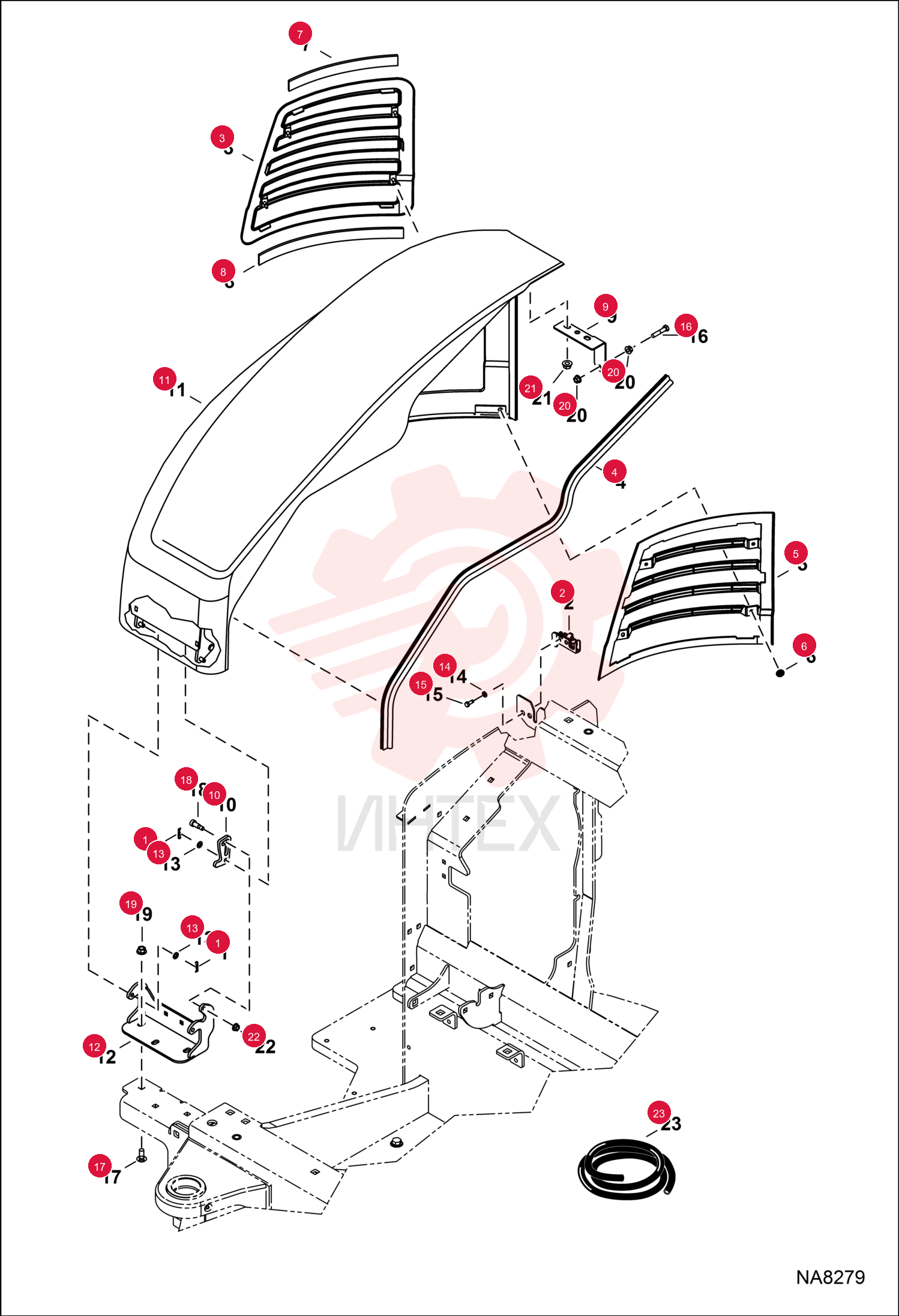

PIN 5 6513495 (1)

PIN 5 6513495 (1)

PIN 5 6513495 (1)

1 6513495

  • 6513495 - PIN 5

2 7017782

  • 7017782 - LATCH
  • COVER

3 7148282

  • 7148282 - SCREEN
  • OUTER

4 7171223

  • 7171223 - SCREEN
  • INNER

5 7173153

  • 7173153 - NUT

6 7184201

  • 7184201 - TAPE

7 7184202

  • 7184202 - TAPE

8 7215932

  • 7215932 - MOUNT
  • STRIKER

9 7225801

  • 7225801 - BRACKET
  • HOLDING

10 7226790

  • 7226790 - COVER
  • RH

11 7226791

  • 7226791 - HINGE
  • COVER

12 15EM80

  • 15EM80 - WASHER

13 18EM613

  • 18EM613 - WASHER

14 1CM616

  • 1CM616 - SCREW HEX CAP

15 1CM840

  • 1CM840 - SCREW HEX CAP

16 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

17 38C610

  • 38C610 - SCREW SHOULDER

18 43DM10

  • 43DM10 - NUT FLANGED HEX

19 43DM8

  • 43DM8 - NUT FLANGED HEX

20 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

21 97D5

  • 97D5 - NUT FLGD HEX LOCK

22 7160901

  • 7160901 - SEAL
  • BULB
  • bulk - sold per foot
