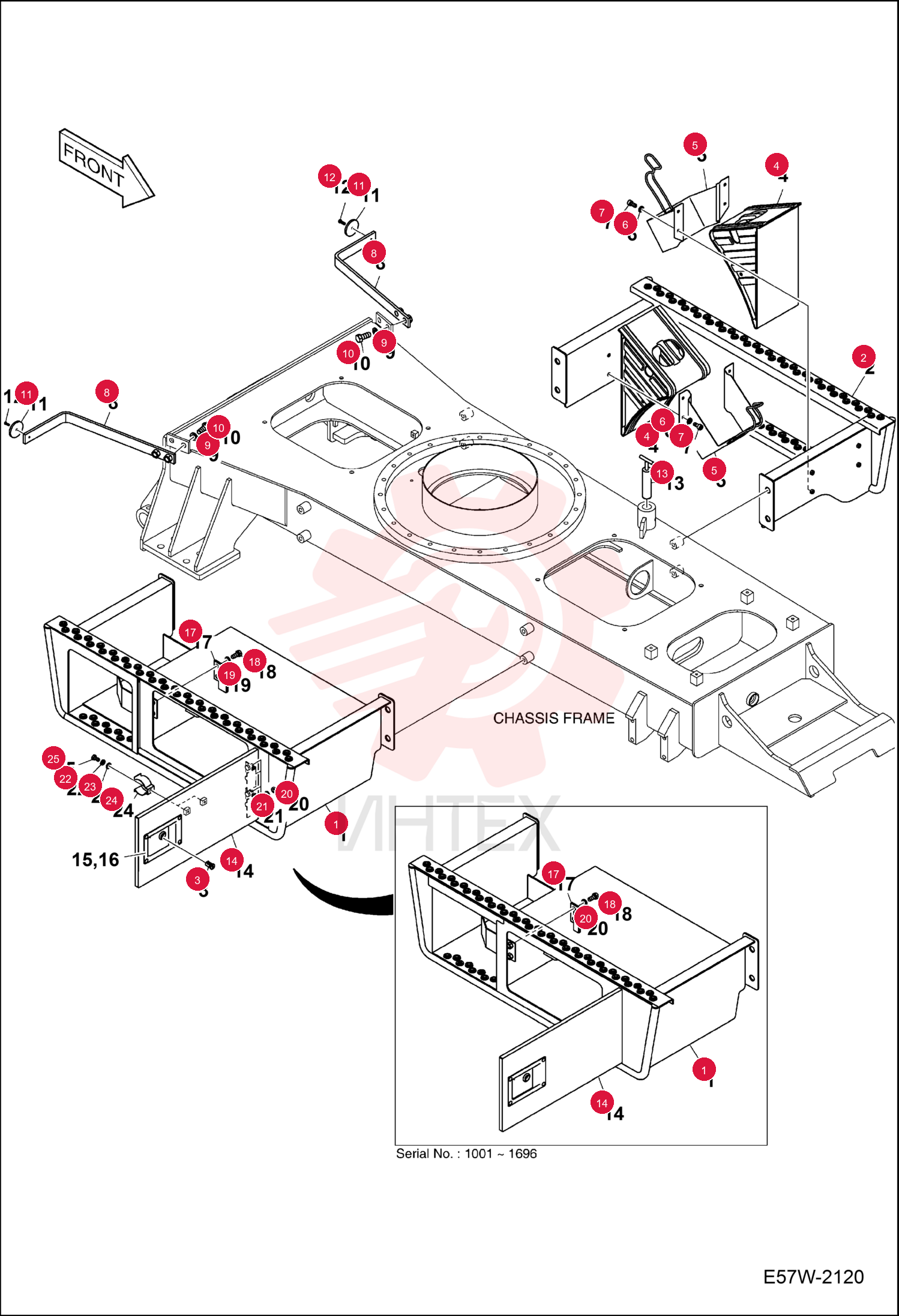

STEP PLATE 7323540

STEP PLATE 7323540

STEP PLATE 7323540

1 7323540

  • 7323540 - STEP PLATE

2 7323542

  • 7323542 - STEP PLATE

3 7005642

  • 7005642 - CYLINDER KEY

4 7287498

  • 7287498 - MARK
  • CHOKE

5 7287492

  • 7287492 - HOUSING

6 7007834

  • 7007834 - WASHER SPRING

7 7007734

  • 7007734 - BOLT SOCKET

8 7288100

  • 7288100 - PLATE

9 7029492

  • 7029492 - WASHER
  • SPRING

10 7007648

  • 7007648 - BOLT

11 7003966

  • 7003966 - DEFLECTOR REFLECTOR

12 7007782

  • 7007782 - BOLT

13 7003879

  • 7003879 - PIN SWING LOCK

14 7312082

  • 7312082 - DOOR TOOL BOX

15 7006267

  • 7006267 - CATCH DOOR

16 7007626

  • 7007626 - BOLT

17 7288216

  • 7288216 - STOP

18 7323541

  • 7323541 - STOP DOOR

19 7007638

  • 7007638 - BOLT

20 7007836

  • 7007836 - WASHER SPRING M12

21 7007798

  • 7007798 - NUT M10X1.5

22 7007835

  • 7007835 - WASHER SPRING

23 7007834

  • 7007834 - WASHER SPRING

24 7007815

  • 7007815 - WASHER PLAIN

25 7005744

  • 7005744 - CLAMP

26 7312083

  • 7312083 - CLAMP HALF

27 7007615

  • 7007615 - BOLT
