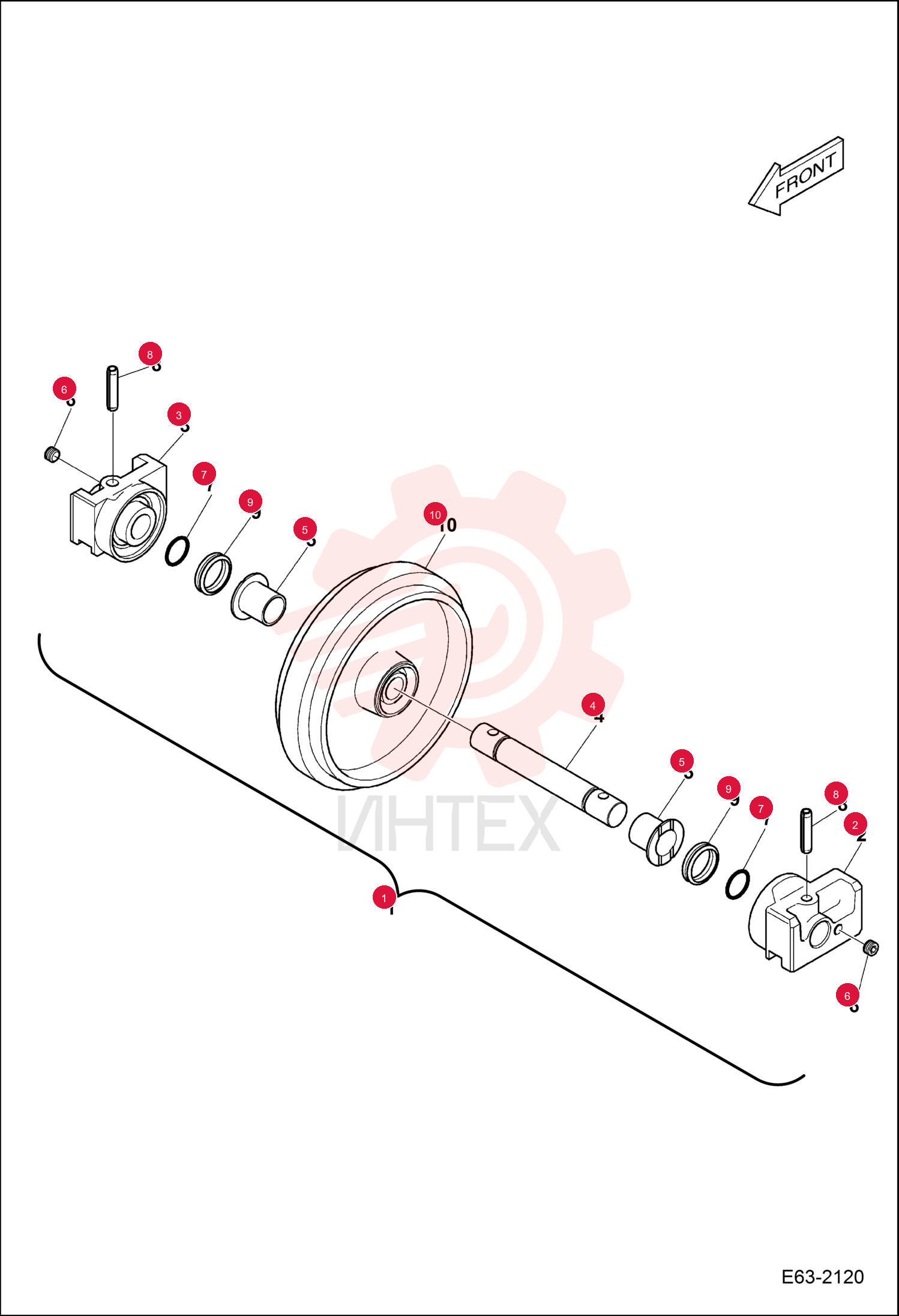

IDLER ASSEMBLY 7021775

IDLER ASSEMBLY 7021775

IDLER ASSEMBLY 7021775

1 7021775

  • 7021775 - IDLER ASSEMBLY

2 7281065

  • 7281065 - BEARING

3 7281066

  • 7281066 - BEARING

4 7029984

  • 7029984 - SHAFT

5 7029697

  • 7029697 - BUSHING

6 7004671

  • 7004671 - PLUG PT 1/8

7 7029899

  • 7029899 - O-RING

8 7007863

  • 7007863 - PIN SPRING

9 7004665

  • 7004665 - SEAL FLOATING
