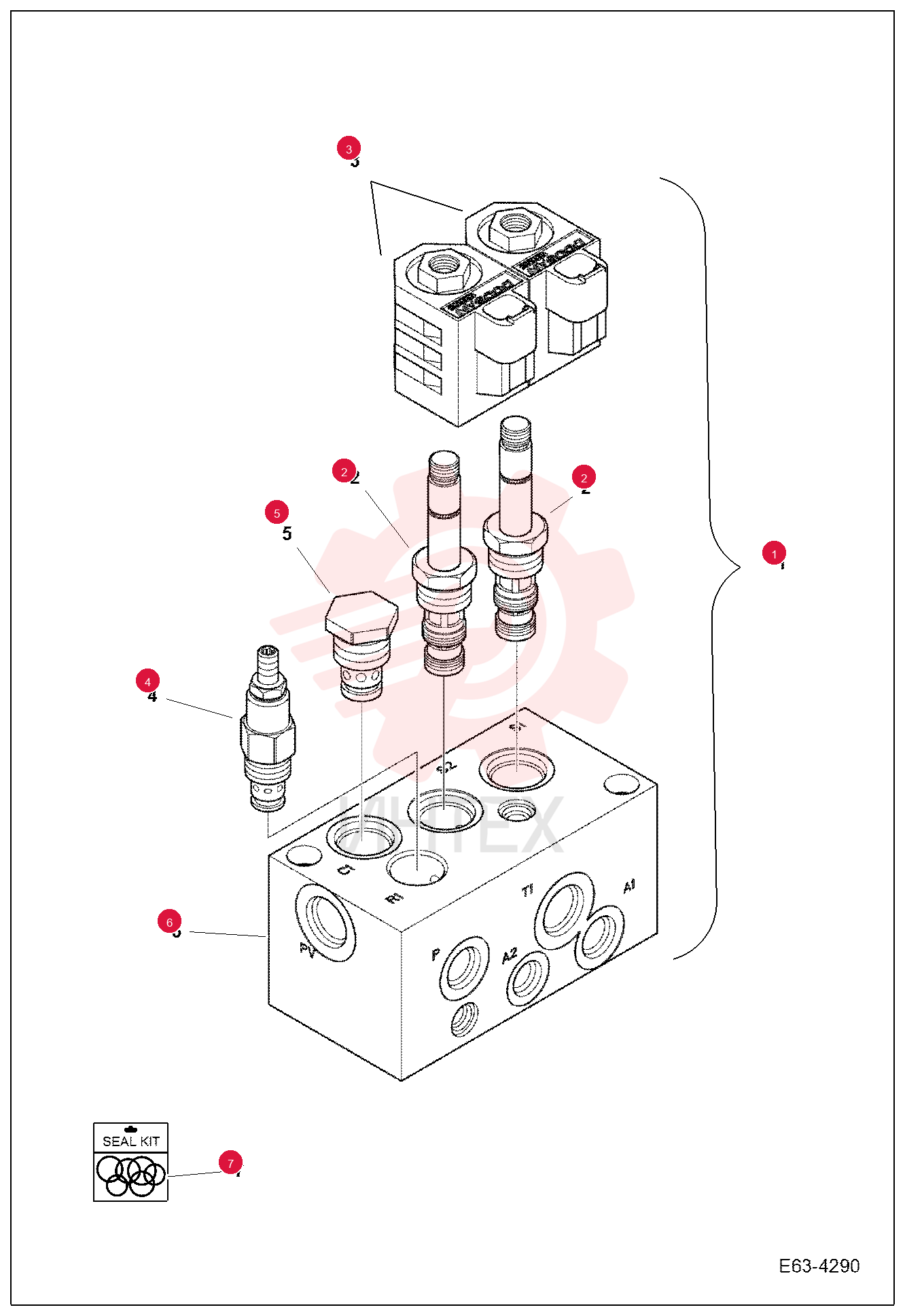

VALVE, PILOT 7030031 (2)

VALVE, PILOT 7030031 (2)

VALVE, PILOT 7030031 (2)

1 7030031

  • 7030031 - VALVE
  • PILOT

2 7024801

  • 7024801 - SPOOL

3 7028917

  • 7028917 - COIL
  • SOLENOID

4 7361458

  • 7361458 - VALVE PRESSURE REDUCER
  • Was 7030033

5 7006849

  • 7006849 - VALVE CHECK

6 7003785

  • 7003785 - KIT SEAL
