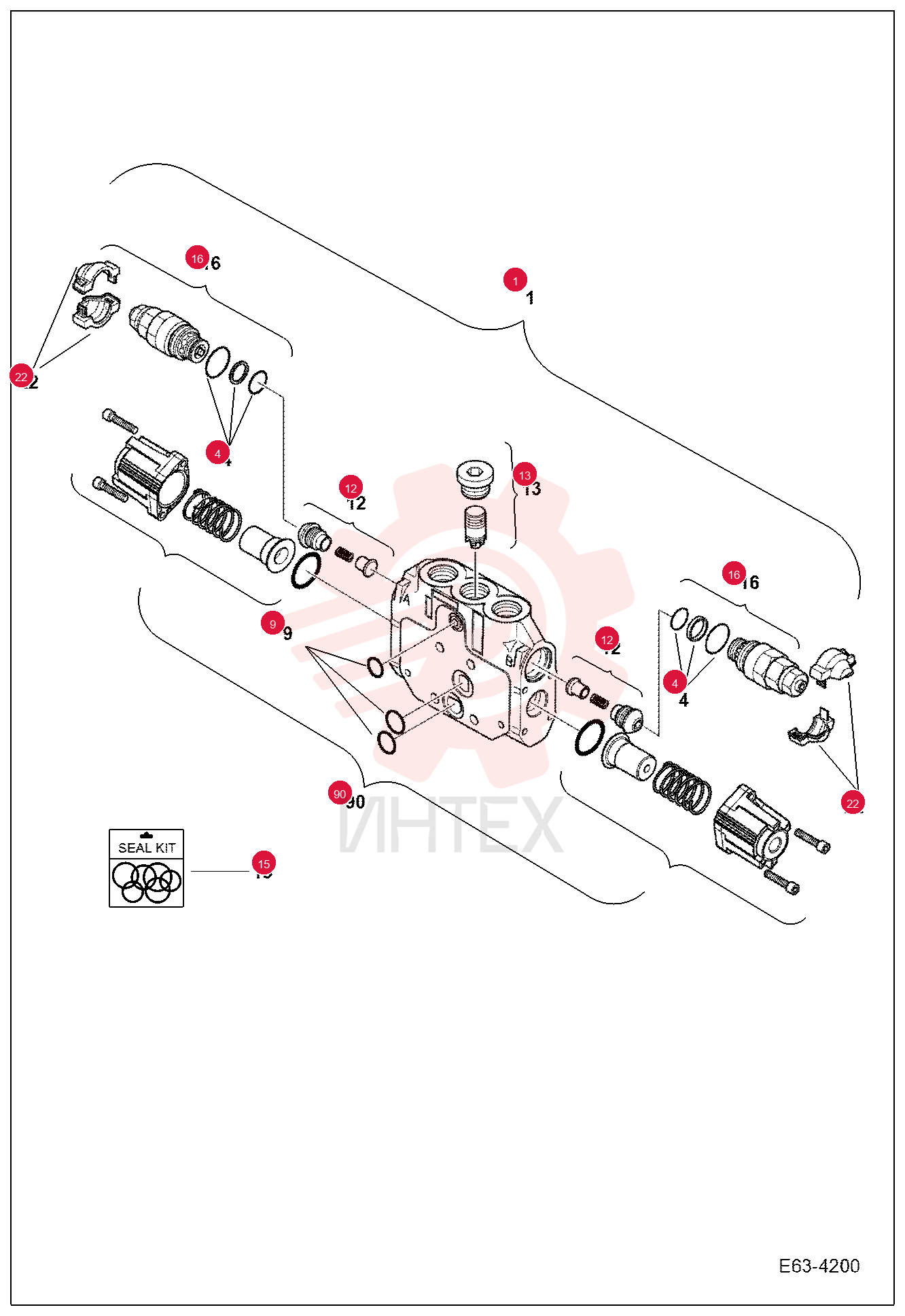

SECTION, VALVE 7029656

SECTION, VALVE 7029656

SECTION, VALVE 7029656

1 7029656

  • 7029656 - SECTION
  • VALVE

2 7007568

  • 7007568 - KIT
  • SEAL

3 7029973

  • 7029973 - KIT
  • SEAL

4 7030024

  • 7030024 - VALVE
  • CHECK

5 7029994

  • 7029994 - VALVE
  • COMPENSATOR

6 7029974

  • 7029974 - KIT
  • SEAL

7 7030032

  • 7030032 - VALVE
  • RELIEF PRESSURE

8 6687072

  • 6687072 - CAP
  • Was 7007558

9 7029703

  • 7029703 - KIT
  • PLUNGER
