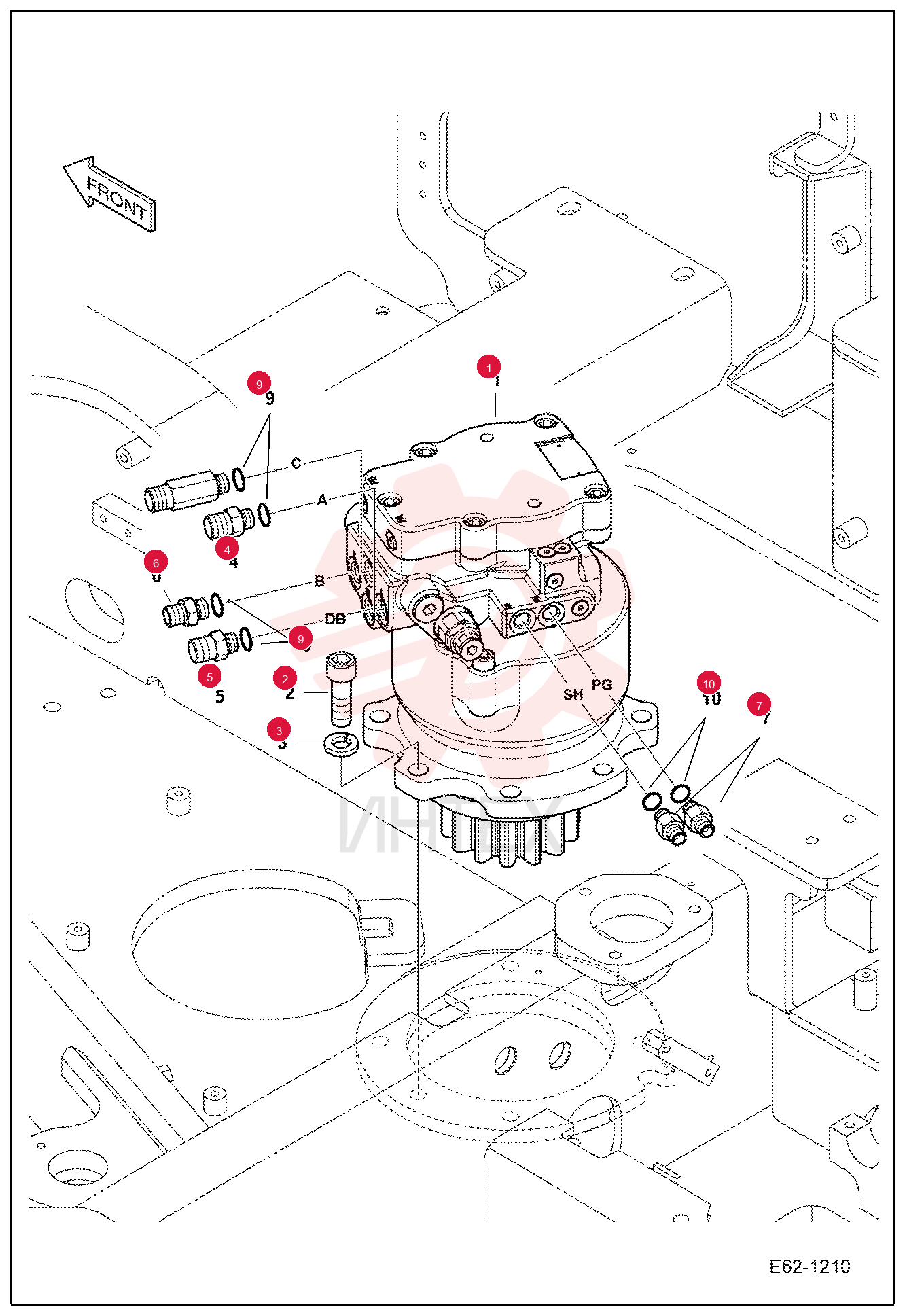

MOTOR, SLEW 7029748 (1)

MOTOR, SLEW 7029748 (1)

MOTOR, SLEW 7029748 (1)

1 7029748

  • 7029748 - MOTOR
  • SLEW

2 7007774

  • 7007774 - BOLT

3 7029491

  • 7029491 - WASHER
  • SPRING
  • Was 7007839

4 7004680

  • 7004680 - ADAPTER

5 7029625

  • 7029625 - ADAPTER

6 7004700

  • 7004700 - ADAPTER

7 7004678

  • 7004678 - ADAPTER

8 7284551

  • 7284551 - O-RING
  • Was 7007909

9 7283267

  • 7283267 - O-RING
  • Was 7007906
