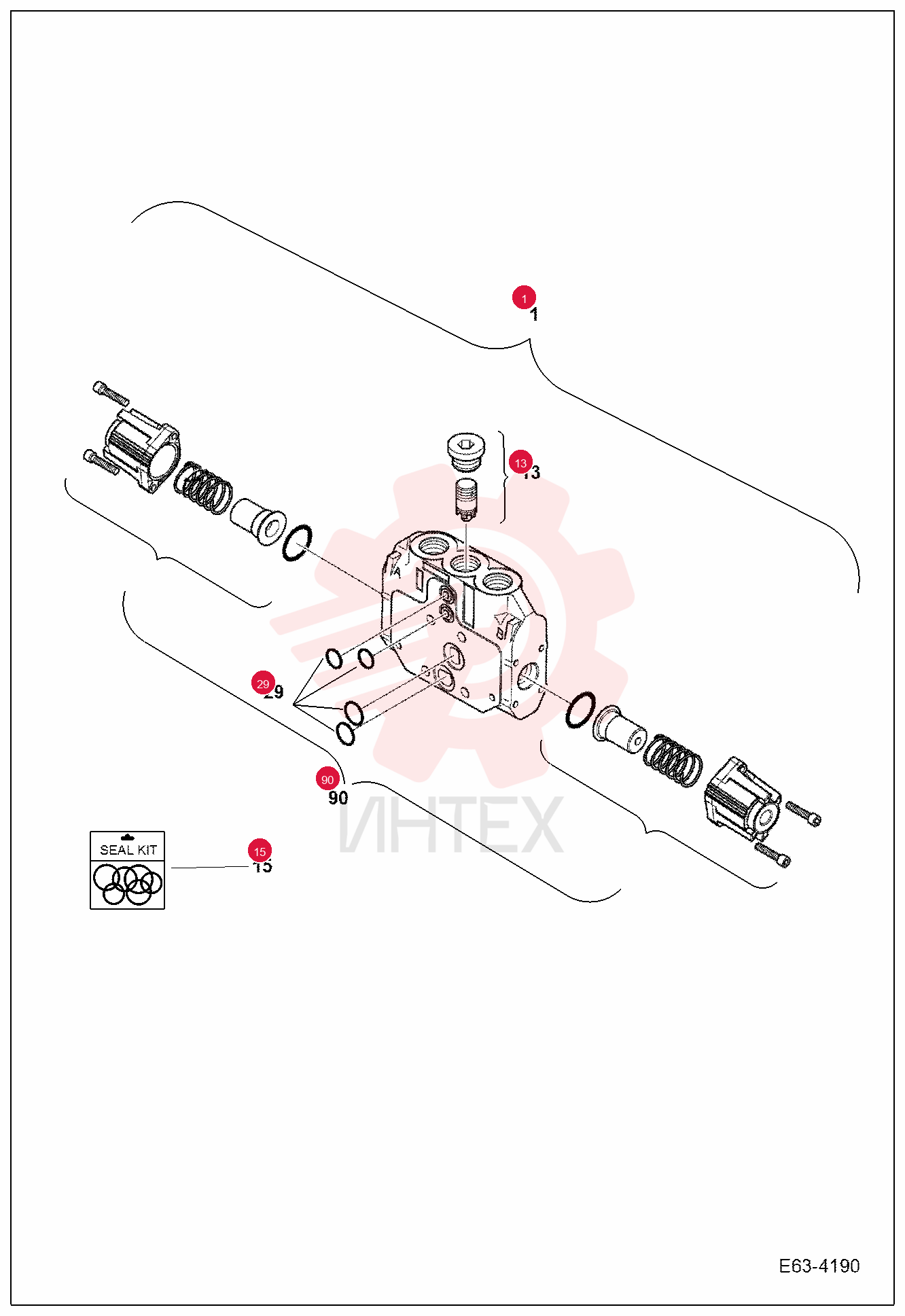

SECTION, VALVE 7029659

SECTION, VALVE 7029659

SECTION, VALVE 7029659

1 7029659

  • 7029659 - SECTION
  • VALVE

2 7029994

  • 7029994 - VALVE
  • COMPENSATOR

3 7029974

  • 7029974 - KIT
  • SEAL

4 7029975

  • 7029975 - KIT
  • SEAL

5 7029703

  • 7029703 - KIT
  • PLUNGER
