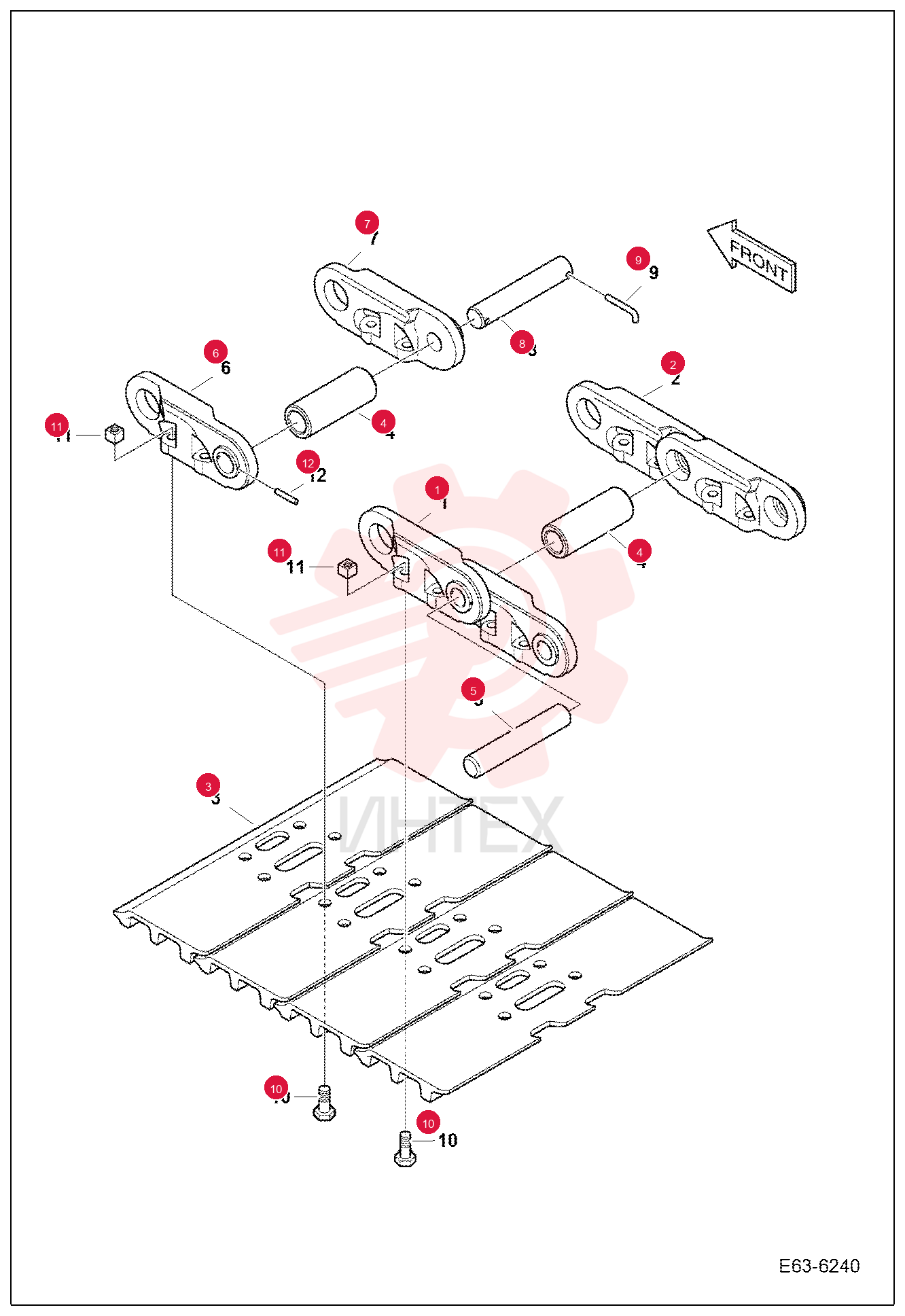

LINK LH 7004849

LINK LH 7004849

LINK LH 7004849

1 7004849

  • 7004849 - LINK LH

2 7004850

  • 7004850 - LINK RH

3 7004851

  • 7004851 - SHOE 400MM

4 7004464

  • 7004464 - BUSHING

5 7004581

  • 7004581 - PIN

6 7004848

  • 7004848 - LINK LH

7 7004847

  • 7004847 - LINK RH

8 7004583

  • 7004583 - PIN MASTER

9 7004582

  • 7004582 - PIN SMALL

10 7004558

  • 7004558 - BOLT

11 7004565

  • 7004565 - NUT

12 7004580

  • 7004580 - PIN SMALL
