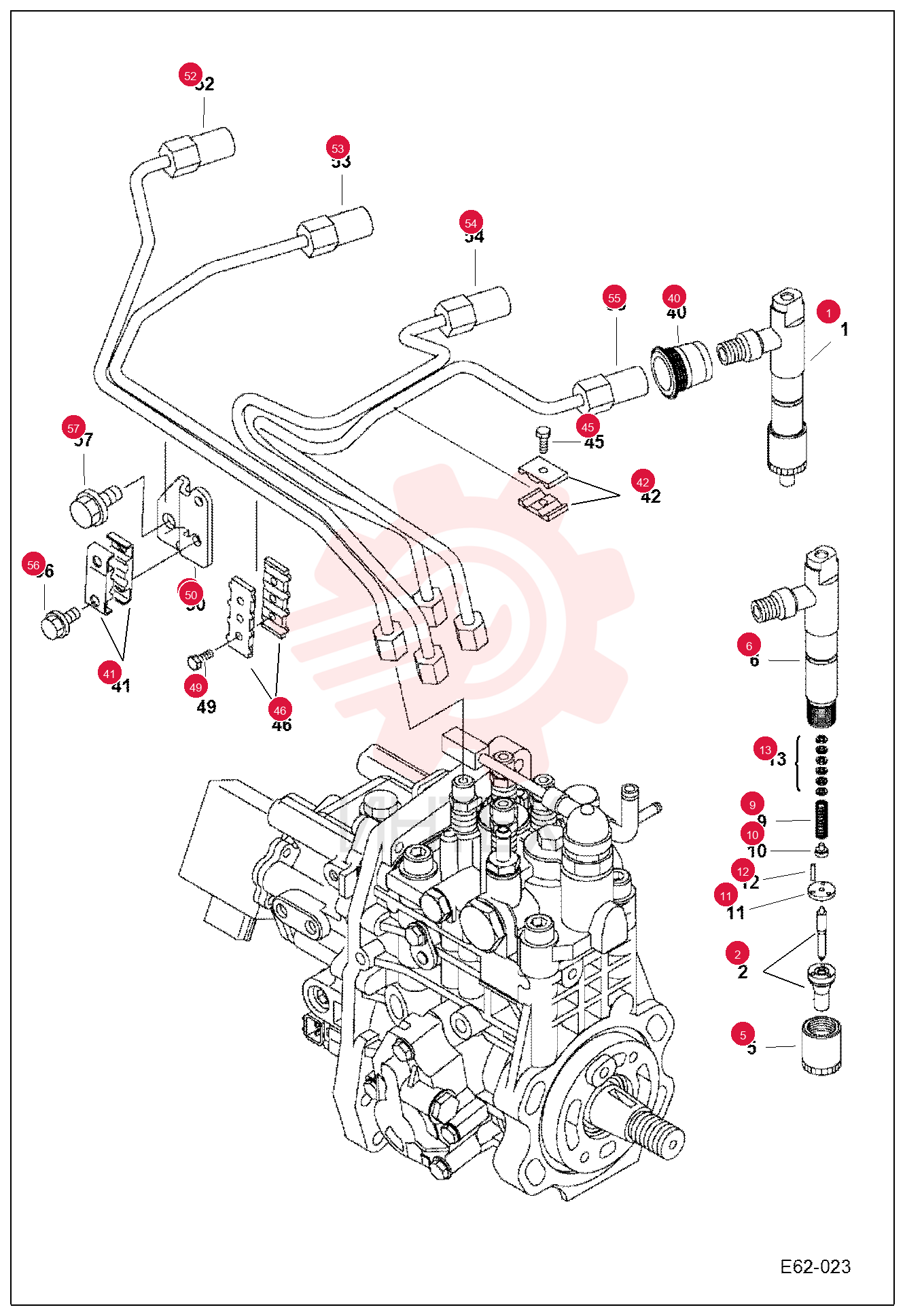

INJECTOR, FUEL 7030118

INJECTOR, FUEL 7030118

INJECTOR, FUEL 7030118

1 7030118

  • 7030118 - INJECTOR
  • FUEL

2 7030119

  • 7030119 - NOZZLE
  • FUEL INJ

3 7004147

  • 7004147 - NUT

4 7030120

  • 7030120 - HOLDER

5 7004195

  • 7004195 - SPRING

6 7004408

  • 7004408 - SEAT

7 7004384

  • 7004384 - PLATE STOP

8 7004164

  • 7004164 - PIN

9 7030121

  • 7030121 - SHIM

10 7004277

  • 7004277 - SEAL TUBELINE

11 7029321

  • 7029321 - CLAMP

12 7030122

  • 7030122 - RETAINER

13 7004081

  • 7004081 - BOLT M4X14

14 7030123

  • 7030123 - CLIP

15 7004081

  • 7004081 - BOLT M4X14

16 7030124

  • 7030124 - BRACKET

17 7030125

  • 7030125 - TUBE
  • FUEL

18 7030126

  • 7030126 - TUBE
  • FUEL

19 7030127

  • 7030127 - TUBE
  • FUEL

20 7030128

  • 7030128 - TUBE
  • FUEL

21 7029496

  • 7029496 - BOLT

22 7030129

  • 7030129 - BOLT
