Bobcat
/
E62
/

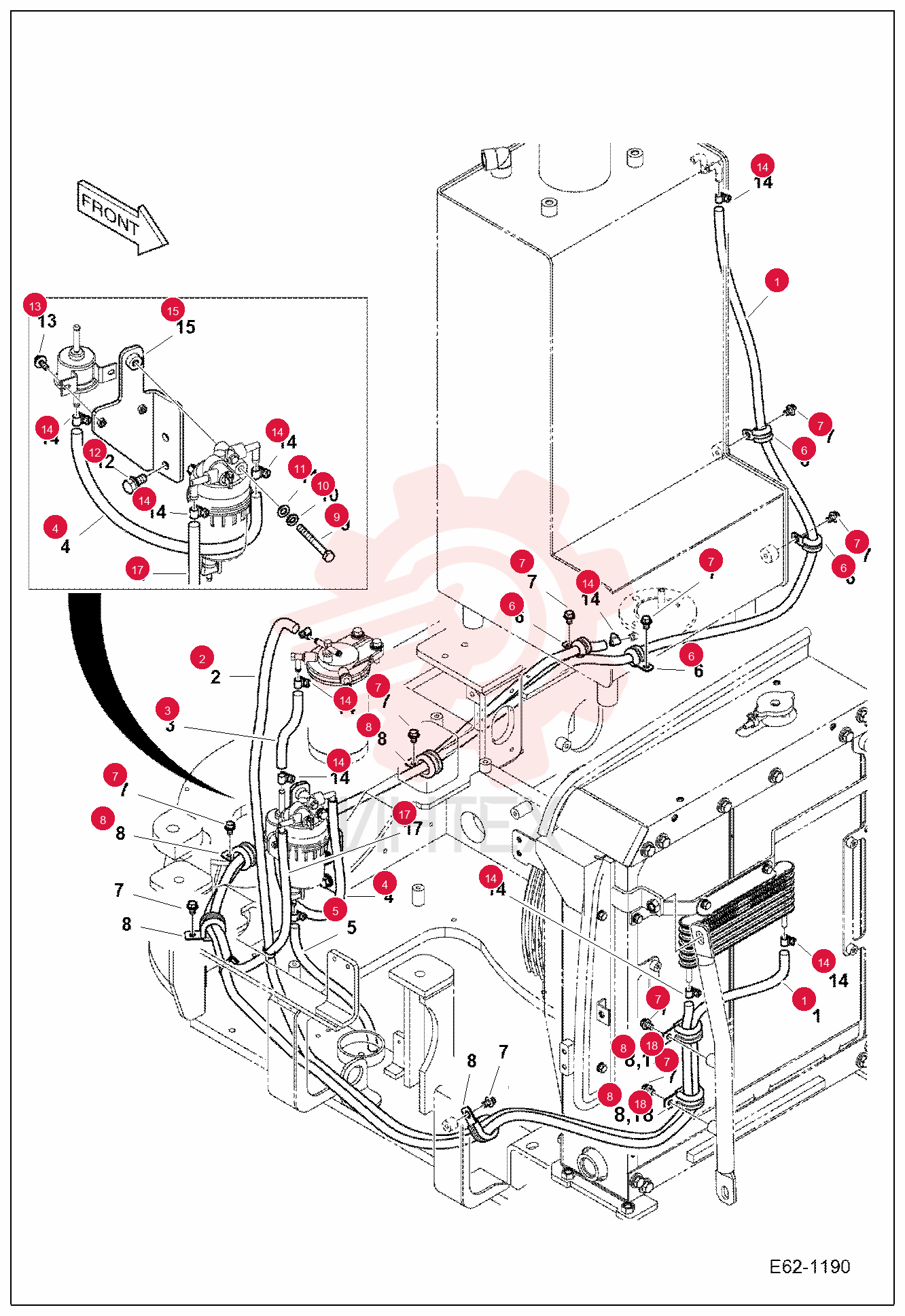

HOSE 7029781

HOSE 7029781

HOSE 7029781

1 7029781

  • 7029781 - HOSE

2 7005528

  • 7005528 - HOSE FUEL

3 7029190

  • 7029190 - HOSE
  • FUEL

4 7277964

  • 7277964 - HOSE
  • FUEL

5 7005535

  • 7005535 - HOSE FUEL

6 7005533

  • 7005533 - HOSE FUEL

7 7003894

  • 7003894 - CLIP

8 7005629

  • 7005629 - BOLT

9 7003896

  • 7003896 - CLIP

10 7003896

  • 7003896 - CLIP

11 7007665

  • 7007665 - BOLT

12 7276756

  • 7276756 - WASHER
  • Was 7007834

13 7007816

  • 7007816 - WASHER

14 7005138

  • 7005138 - BOLT M10X1.5X25

15 7005139

  • 7005139 - BOLT M6X1.0X20

16 7007973

  • 7007973 - CLAMP

17 7277962

  • 7277962 - CLAMP

18 7282927

  • 7282927 - CLAMP

19 7006398

  • 7006398 - BRACKET

20 7029194

  • 7029194 - HOSE
  • FUEL

21 7003905

  • 7003905 - CLIP
