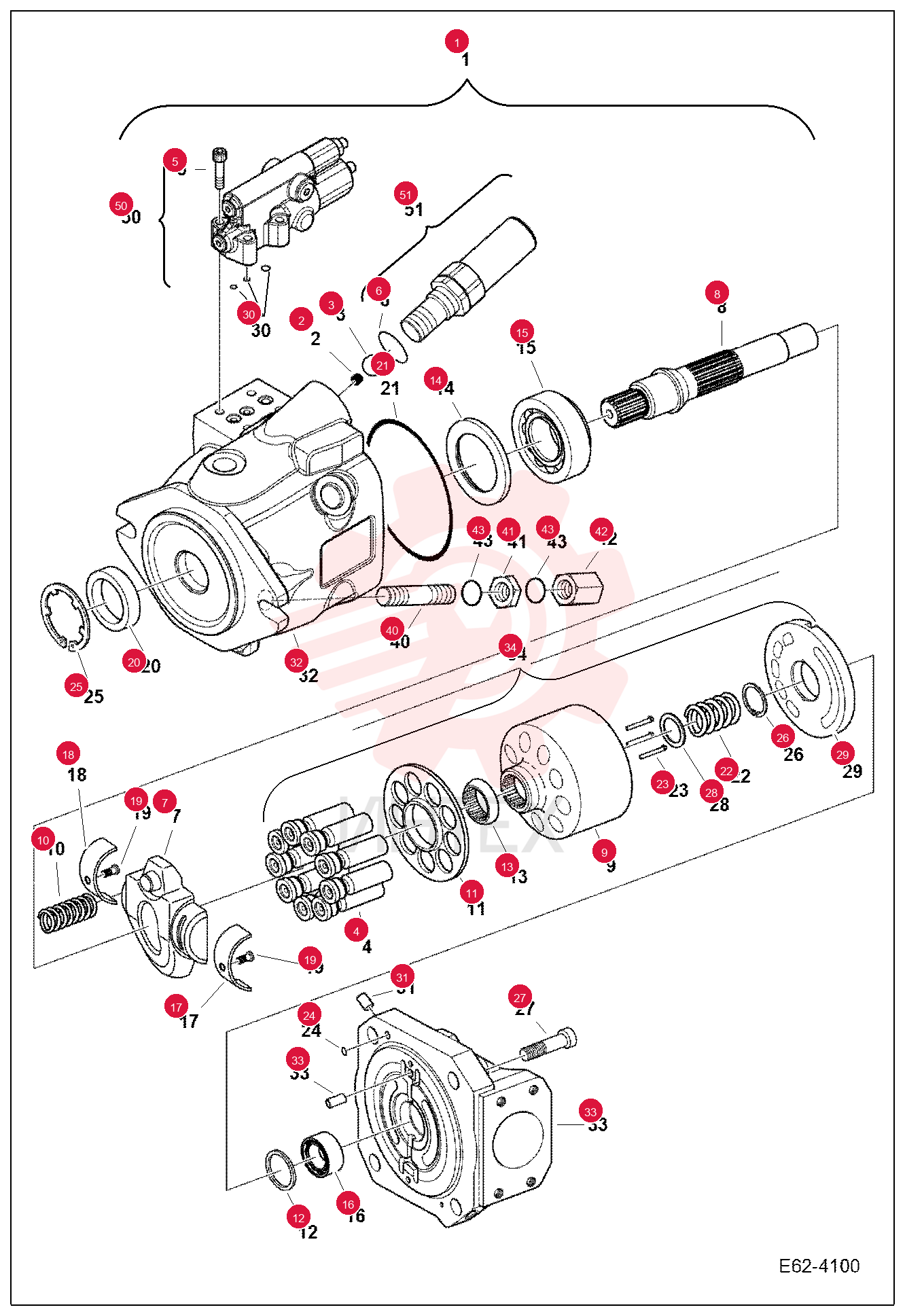

PUMP, HYD ASSY 7030143 (1)
1 7030143
- 7030143 - PUMP
- HYD ASSY
2 7029999
- 7029999 - SPRING
3 7030001
- 7030001 - SEAT
- SPRING
4 7029921
- 7029921 - PISTON
- ASSY
5 7007727
- 7007727 - SCREW SOCKET
6 7029953
- 7029953 - O-RING
7 7029933
- 7029933 - SWASHPLATE
8 7029986
- 7029986 - SHAFT
- DRIVE
9 7029735
- 7029735 - CYLINDER
10 7029998
- 7029998 - SPRING
11 7029937
- 7029937 - PLATE
12 7029988
- 7029988 - SHIM
13 7029694
- 7029694 - BUSHING
14 7029955
- 7029955 - RING
- STOP
15 7029651
- 7029651 - BEARING
- TAPER ROLLER
16 7029652
- 7029652 - BEARING
- TAPER ROLLER
17 7029698
- 7029698 - BUSHING
18 7029699
- 7029699 - BUSHING
19 7029972
- 7029972 - SCREW
20 7029982
- 7029982 - SEAL
- SHAFT
21 7029900
- 7029900 - O-RING
22 7029995
- 7029995 - SPRING
23 7007370
- 7007370 - PIN PRESSURE
24 7029981
- 7029981 - SEAL
- RING
25 7029957
- 7029957 - RING
- RETAINING
26 7029958
- 7029958 - RING
- RETAINING
27 7029668
- 7029668 - BOLT
28 7029936
- 7029936 - PLATE
29 7029928
- 7029928 - PLATE
- VALVE
30 7029980
- 7029980 - SEAL
- RING
31 7004283
- 7004283 - PLUG
32 7029904
- 7029904 - PIN
33 7029965
- 7029965 - ROTARY ASSEMBLY
34 7029971
- 7029971 - SCREW
35 7029896
- 7029896 - NUT
36 7029895
- 7029895 - NUT
- CAP
37 7029954
- 7029954 - O-RING
38 7030026
- 7030026 - VALVE
- CONTROL
39 7030175
- 7030175 - VALVE
- CONTROL
