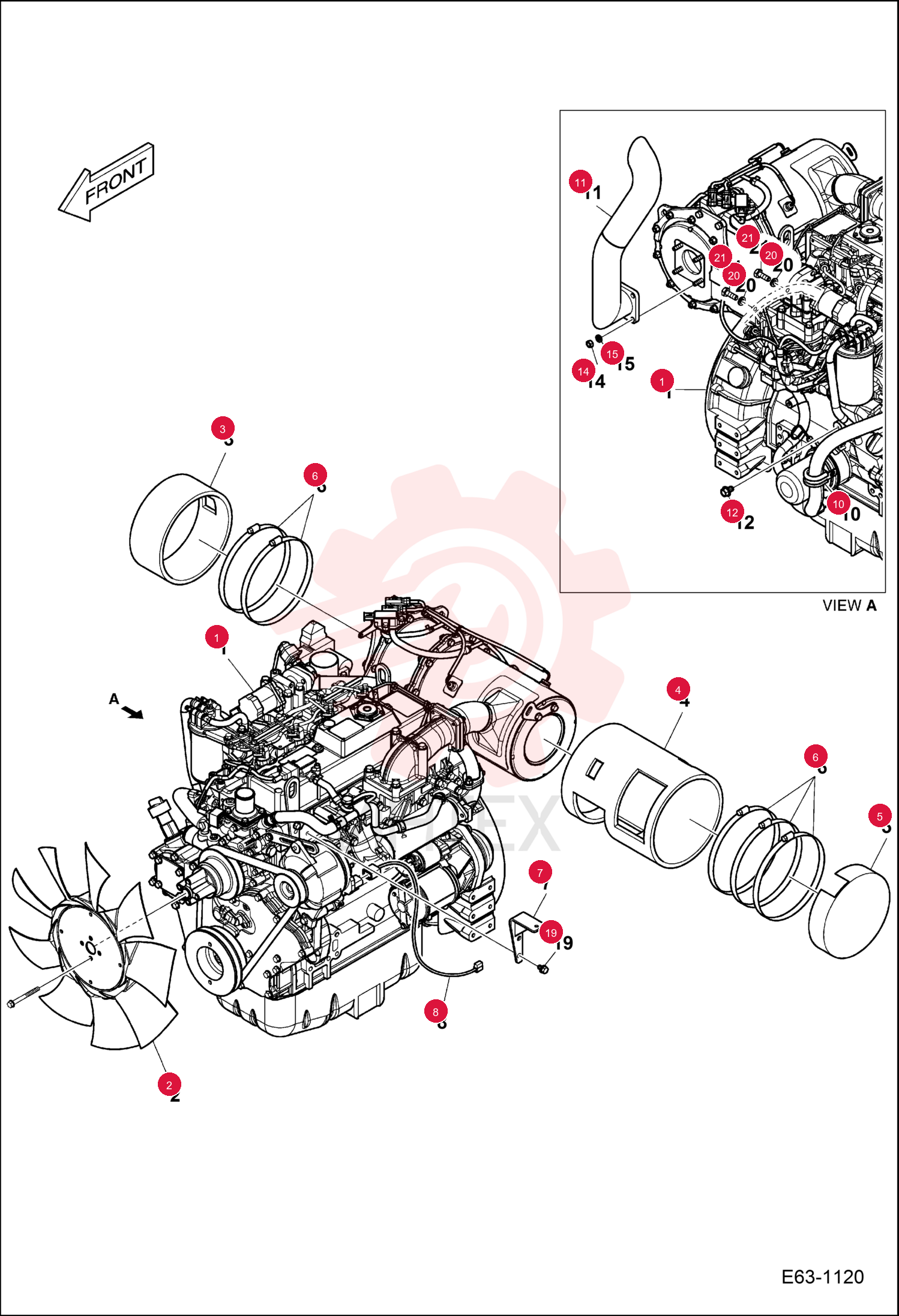

ENGINE ASSEMBLY 7367857

ENGINE ASSEMBLY 7367857

ENGINE ASSEMBLY 7367857

1 7367857

  • 7367857 - ENGINE ASSEMBLY

2 7029760

  • 7029760 - ENGINE

3 7312815

  • 7312815 - ENGINE ASSEMBLY

4 7029013

  • 7029013 - FAN
  • COOLING

5 7028857

  • 7028857 - INSULATION

6 7028856

  • 7028856 - INSULATION

7 7028855

  • 7028855 - INSULATION

8 7012740

  • 7012740 - CLAMP HOSE

9 7282925

  • 7282925 - CLAMP

10 7012740

  • 7012740 - CLAMP HOSE

11 7028742

  • 7028742 - BRACKET

12 7029077

  • 7029077 - HARNESS
  • ENG

13 7003897

  • 7003897 - CLIP

14 7029917

  • 7029917 - PIPE
  • TUBE EXHAUST

15 7005629

  • 7005629 - BOLT

16 7007796

  • 7007796 - NUT

17 7276756

  • 7276756 - WASHER
  • Was 7007834

18 7005135

  • 7005135 - BOLT

19 7007835

  • 7007835 - WASHER SPRING

20 7007630

  • 7007630 - BOLT
