Bobcat
/
E63
/

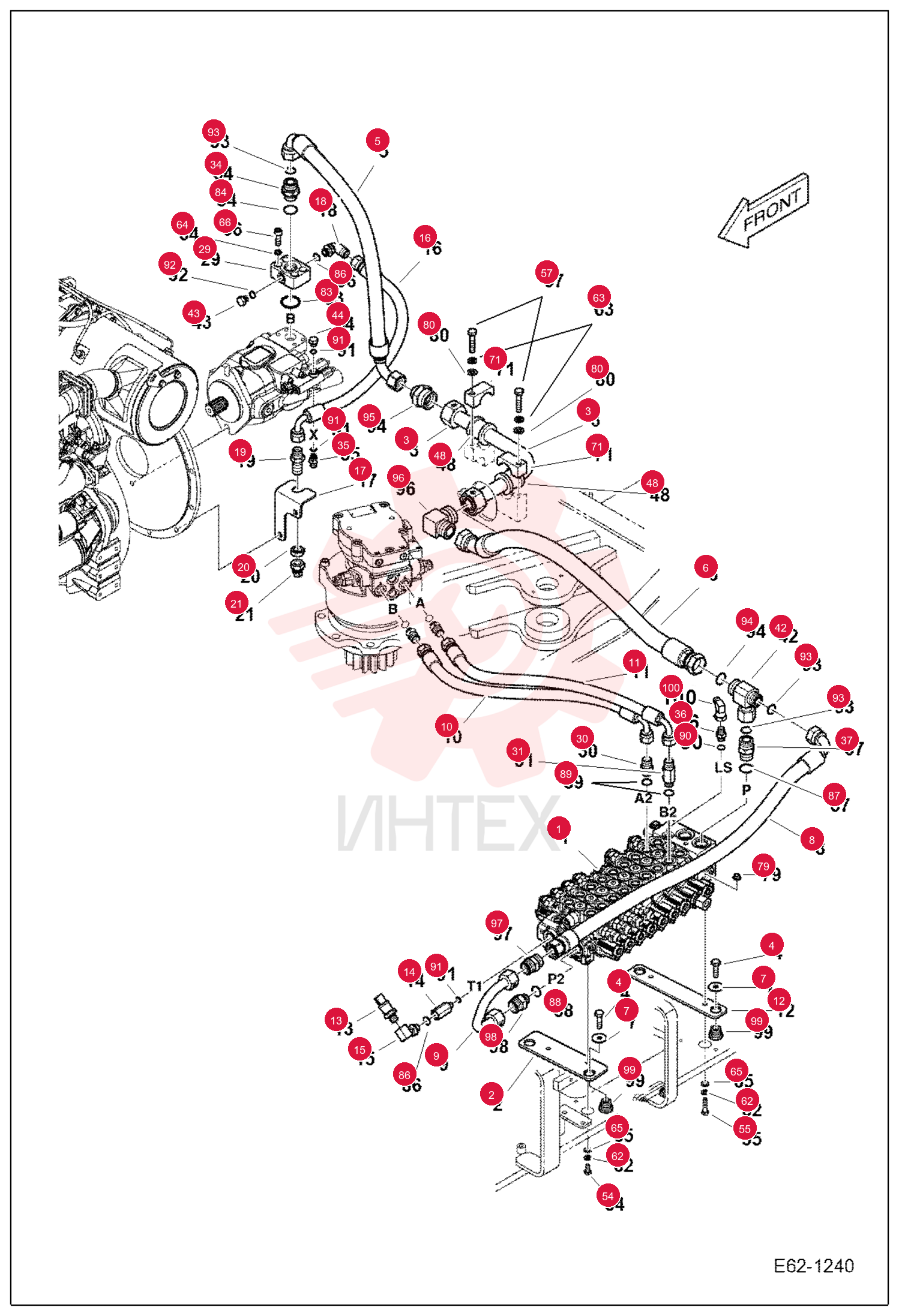

VALVE, CONTROL 7030025 (1)

VALVE, CONTROL 7030025 (1)

VALVE, CONTROL 7030025 (1)

1 7030025

  • 7030025 - VALVE
  • CONTROL

2 7029923

  • 7029923 - PLATE

3 7030018

  • 7030018 - TUBE
  • HYD

4 7007631

  • 7007631 - BOLT M10X1.5X35

5 7029783

  • 7029783 - HOSE

6 7029853

  • 7029853 - HOSE
  • HYD

7 7021845

  • 7021845 - WASHER

8 7029810

  • 7029810 - HOSE
  • HYD

9 7029469

  • 7029469 - TUBELINE
  • HYD

10 7029811

  • 7029811 - HOSE
  • HYD

11 7029812

  • 7029812 - HOSE
  • HYD

12 7029924

  • 7029924 - PLATE

13 7311397

  • 7311397 - SENSOR PRESS
  • Auto Idle Pressure Switch

14 7004912

  • 7004912 - SENSOR PRESSURE
  • Auto Idle Pressure Switch

15 7278247

  • 7278247 - FITTING
  • HYD CONNECTOR

16 7029640

  • 7029640 - ADAPTER

17 7312840

  • 7312840 - FITTING ELBOW

18 7029753

  • 7029753 - FITTING
  • ELBOW

19 7029813

  • 7029813 - HOSE
  • HYD

20 7029685

  • 7029685 - BRACKET

21 7004709

  • 7004709 - ELBOW

22 7005566

  • 7005566 - ADAPTER
  • Was 7003950

23 7003876

  • 7003876 - NUT

24 7004766

  • 7004766 - PLUG

25 7029639

  • 7029639 - ADAPTER

26 7029627

  • 7029627 - ADAPTER

27 7029628

  • 7029628 - ADAPTER

28 7029629

  • 7029629 - ADAPTER

29 7028672

  • 7028672 - ADAPTER

30 7004693

  • 7004693 - ADAPTER

31 7028673

  • 7028673 - ADAPTER

32 7029459

  • 7029459 - TEE

33 7004732

  • 7004732 - PLUG

34 7029939

  • 7029939 - PLUG

35 7029345

  • 7029345 - GROMMET

36 7029666

  • 7029666 - BOLT

37 7007622

  • 7007622 - BOLT

38 7007672

  • 7007672 - BOLT

39 7276756

  • 7276756 - WASHER
  • Was 7007834

40 7007835

  • 7007835 - WASHER SPRING

41 7008302

  • 7008302 - WASHER
  • SPRING M10

42 7007816

  • 7007816 - WASHER

43 7007748

  • 7007748 - BOLT SOCKET M10X1.5X30

44 7029713

  • 7029713 - CLAMP
  • PIPE

45 7004561

  • 7004561 - NUT

46 7007818

  • 7007818 - WASHER PLAIN M10

47 7004630

  • 7004630 - O-RING

48 7007916

  • 7007916 - O-RING

49 7284551

  • 7284551 - O-RING
  • Was 7007909

50 7009947

  • 7009947 - O-RING

51 7007962

  • 7007962 - O-RING

52 7004629

  • 7004629 - O-RING
  • Was 7029898

53 7007961

  • 7007961 - O-RING

54 7010493

  • 7010493 - O-RING

55 7010493

  • 7010493 - O-RING

56 7283267

  • 7283267 - O-RING
  • Was 7007906

57 7007960

  • 7007960 - O-RING

58 7029247

  • 7029247 - O-RING

59 7029643

  • 7029643 - ADAPTER

60 7029752

  • 7029752 - FITTING
  • ELBOW

61 7029637

  • 7029637 - ADAPTER

62 7029638

  • 7029638 - ADAPTER

63 7021821

  • 7021821 - BUSHING
  • SPACER

64 7030062

  • 7030062 - FITTING
