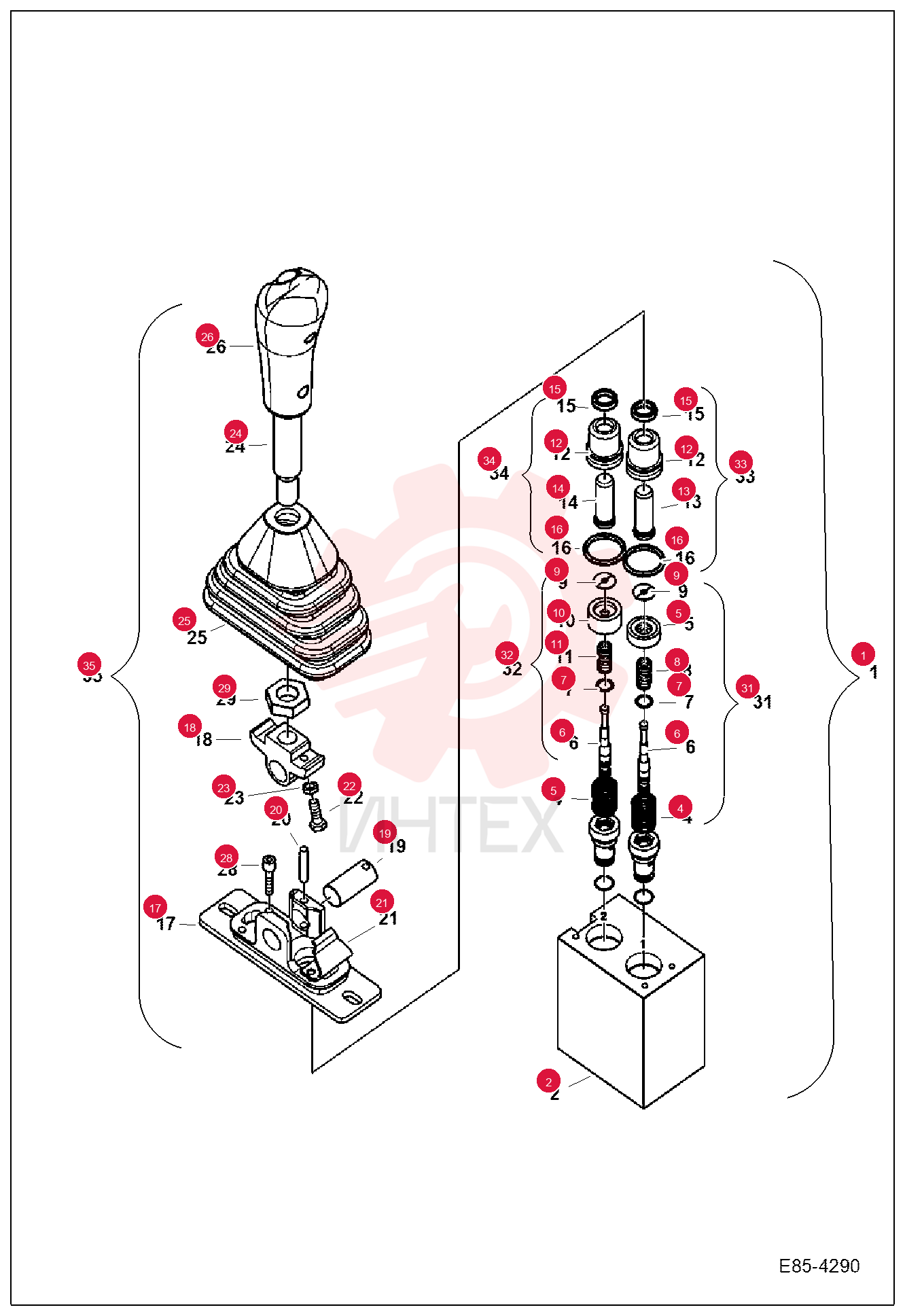

JOYSTICK, BLADE 7030028

JOYSTICK, BLADE 7030028

JOYSTICK, BLADE 7030028

1 7030028

  • 7030028 - JOYSTICK
  • BLADE

2 7029410

  • 7029410 - SPRING

3 7030065

  • 7030065 - SEAT
  • SPRING
  • Was 7030065

4 7004971

  • 7004971 - STOP

5 7003794

  • 7003794 - SEAL ROD

6 7028937

  • 7028937 - COVER

7 7028838

  • 7028838 - CLIP

8 7029508

  • 7029508 - BOLT

9 7029241

  • 7029241 - NUT

10 7028732

  • 7028732 - BOOT
  • RUBBER

11 7028722

  • 7028722 - BOLT

12 7007800

  • 7007800 - NUT M14

13 7029991

  • 7029991 - KIT
  • SPOOL
  • W/Ref. 5-9

14 7029992

  • 7029992 - KIT
  • SPOOL
  • W/Ref. 6
  • 7
  • 9-11

15 7029313

  • 7029313 - SPOOL
  • ACTUATOR ASSY
  • Ref. 12
  • 13
  • 15 & 16

16 7029314

  • 7029314 - SPOOL
  • ACTUATOR ASSY
  • Ref. 12 & 14-16

17 7029069

  • 7029069 - KIT
  • JOYSTICK
  • Ref. 18
  • 22-26 & 29
