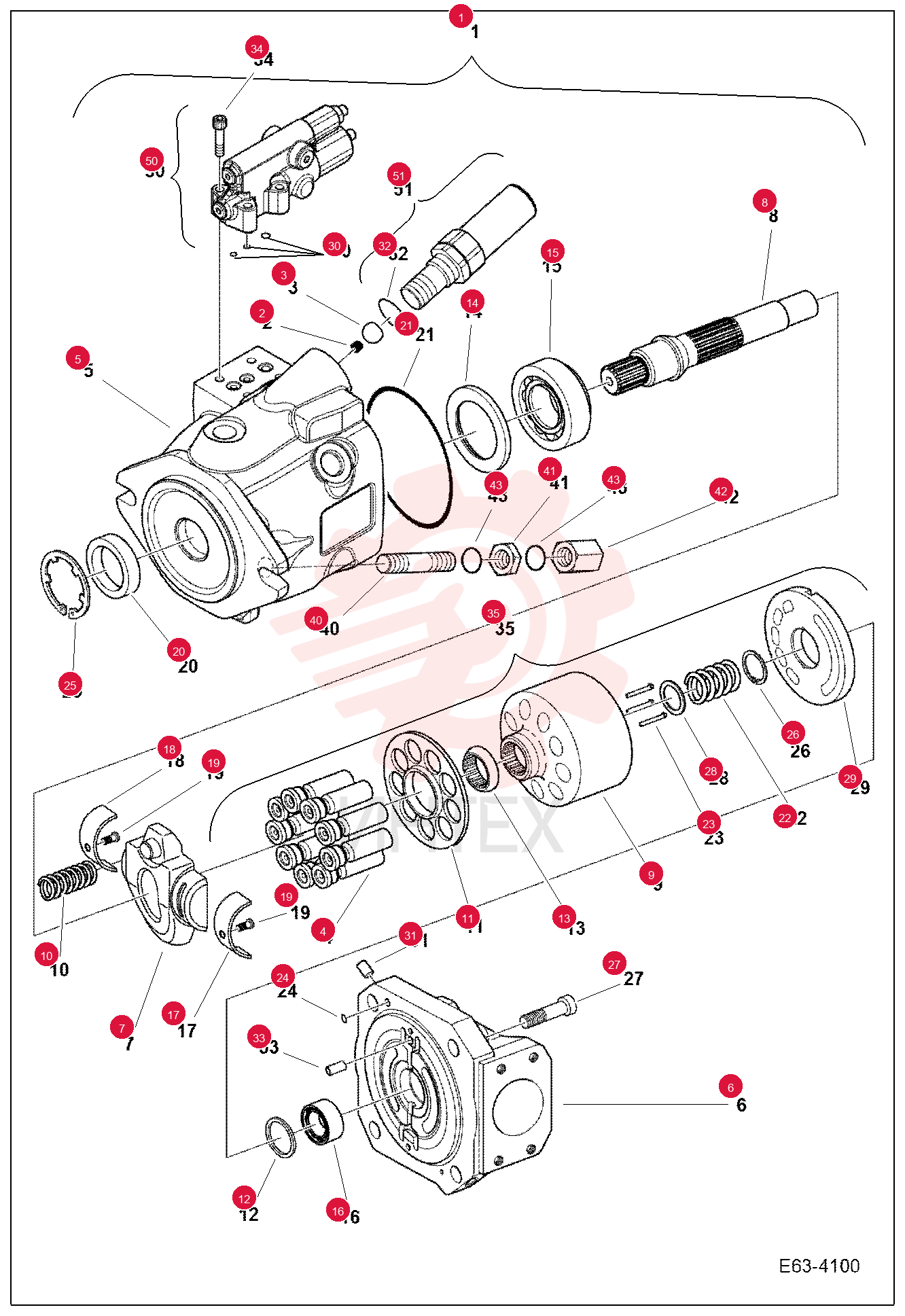

PUMP, HYD 7029944 (1)

PUMP, HYD 7029944 (1)

PUMP, HYD 7029944 (1)

1 7029944

  • 7029944 - PUMP
  • HYD

2 7029999

  • 7029999 - SPRING

3 7030001

  • 7030001 - SEAT
  • SPRING

4 7029921

  • 7029921 - PISTON
  • ASSY

5 7029933

  • 7029933 - SWASHPLATE

6 7029986

  • 7029986 - SHAFT
  • DRIVE

7 7029735

  • 7029735 - CYLINDER

8 7029998

  • 7029998 - SPRING

9 7029937

  • 7029937 - PLATE

10 7029988

  • 7029988 - SHIM

11 7029694

  • 7029694 - BUSHING

12 7029955

  • 7029955 - RING
  • STOP

13 7029651

  • 7029651 - BEARING
  • TAPER ROLLER

14 7029652

  • 7029652 - BEARING
  • TAPER ROLLER

15 7029698

  • 7029698 - BUSHING

16 7029699

  • 7029699 - BUSHING

17 7029972

  • 7029972 - SCREW

18 7029982

  • 7029982 - SEAL
  • SHAFT

19 7029900

  • 7029900 - O-RING

20 7029995

  • 7029995 - SPRING

21 7007370

  • 7007370 - PIN PRESSURE

22 7029981

  • 7029981 - SEAL
  • RING

23 7029957

  • 7029957 - RING
  • RETAINING

24 7029958

  • 7029958 - RING
  • RETAINING

25 7029668

  • 7029668 - BOLT

26 7029936

  • 7029936 - PLATE

27 7029928

  • 7029928 - PLATE
  • VALVE

28 7029980

  • 7029980 - SEAL
  • RING

29 7004283

  • 7004283 - PLUG

30 7029953

  • 7029953 - O-RING

31 7029904

  • 7029904 - PIN

32 7007727

  • 7007727 - SCREW SOCKET

33 7029965

  • 7029965 - ROTARY ASSEMBLY

34 7029971

  • 7029971 - SCREW

35 7029896

  • 7029896 - NUT

36 7029895

  • 7029895 - NUT
  • CAP

37 7029954

  • 7029954 - O-RING

38 7030026

  • 7030026 - VALVE
  • CONTROL

39 7030027

  • 7030027 - VALVE
  • CONTROL
