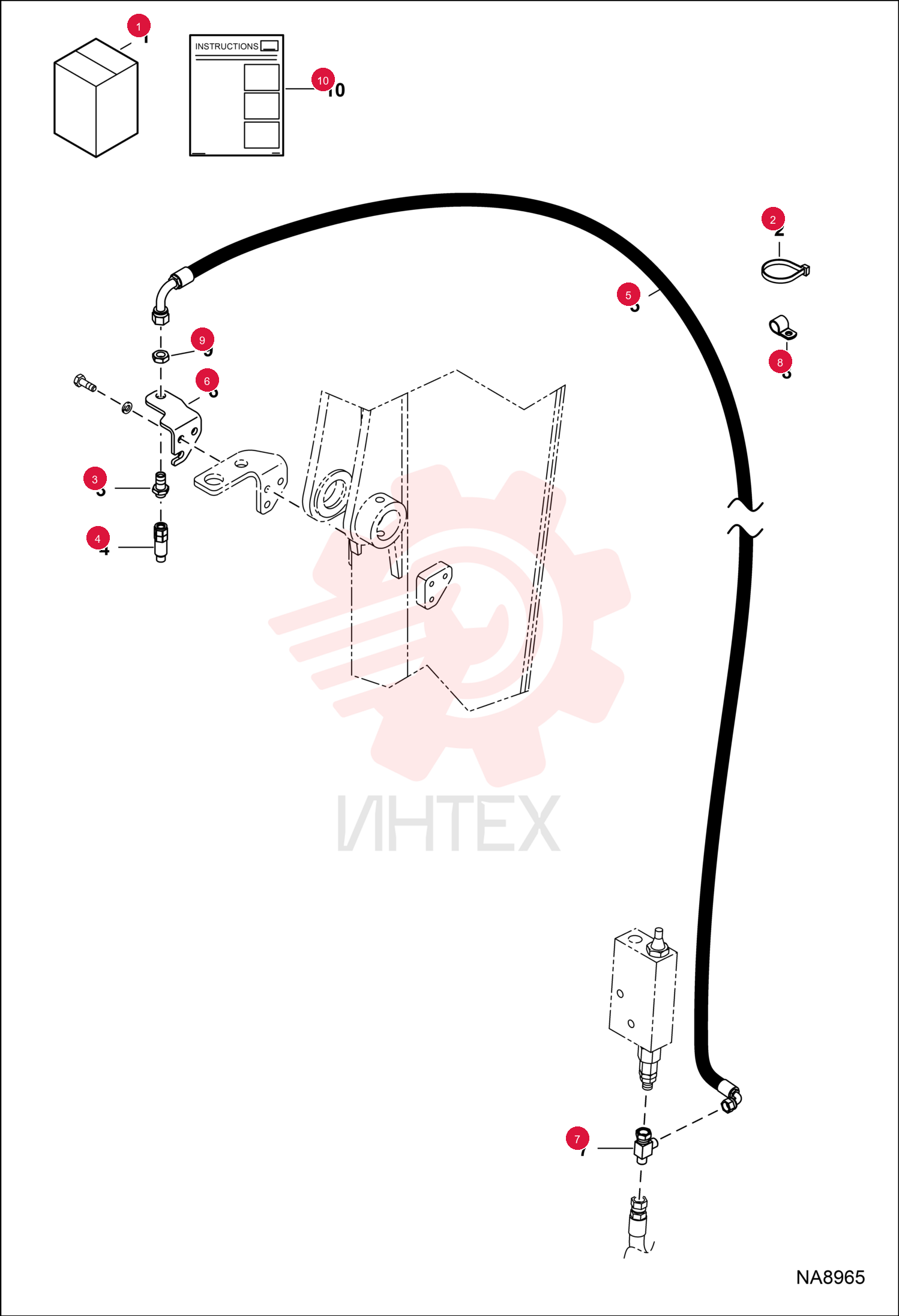

KIT, CASE DRAIN 7252156

KIT, CASE DRAIN 7252156

KIT, CASE DRAIN 7252156

1 7252156

  • 7252156 - KIT
  • CASE DRAIN
  • W/Ref. 2-10

2 6624289

  • 6624289 - STRAP
  • TIE

3 6726479

  • 6726479 - ADAPTER

4 7246789EF

  • 7246789EF - COUPLER FF MALE 3/8 BODY 1/2 SAE THREAD

5 7246789

  • 7246789 - COUPLER FF MALE HTMA

6 7252160

  • 7252160 - HOSE
  • HYD ASSY

7 7252163

  • 7252163 - MOUNT
  • CASE DRAIN

8 7254186

  • 7254186 - FITTING
  • HYD TEE

9 30H47

  • 30H47 - CLIP

10 86F5

  • 86F5 - NUT

11 7255245ENUS

  • 7255245ENUS - INSTRUCTIONS
  • Was 7255245
