Bobcat
/
E63
/

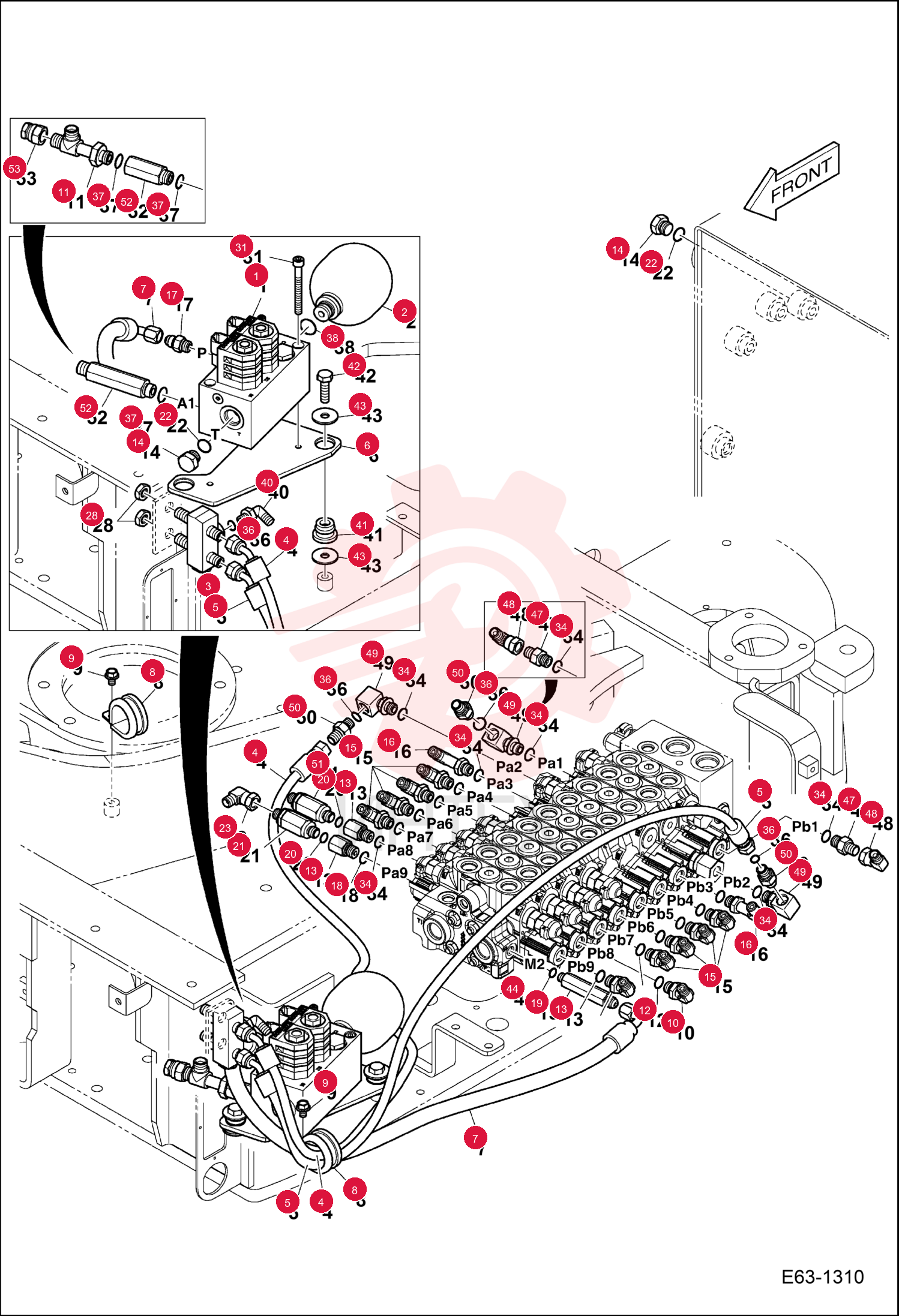

VALVE, PILOT 7030031 (1)

VALVE, PILOT 7030031 (1)

VALVE, PILOT 7030031 (1)

1 7030031

  • 7030031 - VALVE
  • PILOT

2 7004876

  • 7004876 - ACCUMULATOR

3 7004978

  • 7004978 - VALVE SHUTTLE

4 7018660

  • 7018660 - HOSE
  • HYD

5 7029787

  • 7029787 - HOSE

6 7276800

  • 7276800 - HOSE
  • HYD

7 7029788

  • 7029788 - HOSE

8 7029925

  • 7029925 - PLATE

9 7029856

  • 7029856 - HOSE
  • HYD

10 7003901

  • 7003901 - CLIP
  • Was 7003898

11 7005629

  • 7005629 - BOLT

12 7005558

  • 7005558 - ELBOW

13 7030013

  • 7030013 - TEE

14 7007961

  • 7007961 - O-RING

15 7029641

  • 7029641 - ADAPTER

16 7004734

  • 7004734 - PLUG

17 7005558

  • 7005558 - ELBOW

18 7029758

  • 7029758 - FITTING
  • ELBOW

19 7028680

  • 7028680 - ADAPTER
  • FILTER

20 7007961

  • 7007961 - O-RING

21 7029630

  • 7029630 - ADAPTER

22 7283267

  • 7283267 - O-RING
  • Was 7007906

23 7030035

  • 7030035 - VALVE

24 7284551

  • 7284551 - O-RING
  • Was 7007909

25 7030062

  • 7030062 - FITTING

26 7003878

  • 7003878 - NUT

27 7007743

  • 7007743 - BOLT

28 7007961

  • 7007961 - O-RING

29 7283267

  • 7283267 - O-RING
  • Was 7007906

30 7283267

  • 7283267 - O-RING
  • Was 7007906

31 7284551

  • 7284551 - O-RING
  • Was 7007909

32 7284551

  • 7284551 - O-RING
  • Was 7007909

33 7284557

  • 7284557 - O-RING
  • Was 7007911

34 7004713

  • 7004713 - ELBOW

35 7021821

  • 7021821 - BUSHING
  • SPACER

36 7007631

  • 7007631 - BOLT M10X1.5X35

37 7021845

  • 7021845 - WASHER

38 7010493

  • 7010493 - O-RING

39 7028678

  • 7028678 - ADAPTER

40 7028678

  • 7028678 - ADAPTER

41 7030062

  • 7030062 - FITTING

42 7029008

  • 7029008 - FITTING

43 7029008

  • 7029008 - FITTING

44 7028677

  • 7028677 - ADAPTER

45 7028677

  • 7028677 - ADAPTER

46 7030039

  • 7030039 - VALVE

47 7276801

  • 7276801 - FITTING
  • HYD CONNECTOR

48 7029631

  • 7029631 - ADAPTER

49 7004765

  • 7004765 - PLUG
