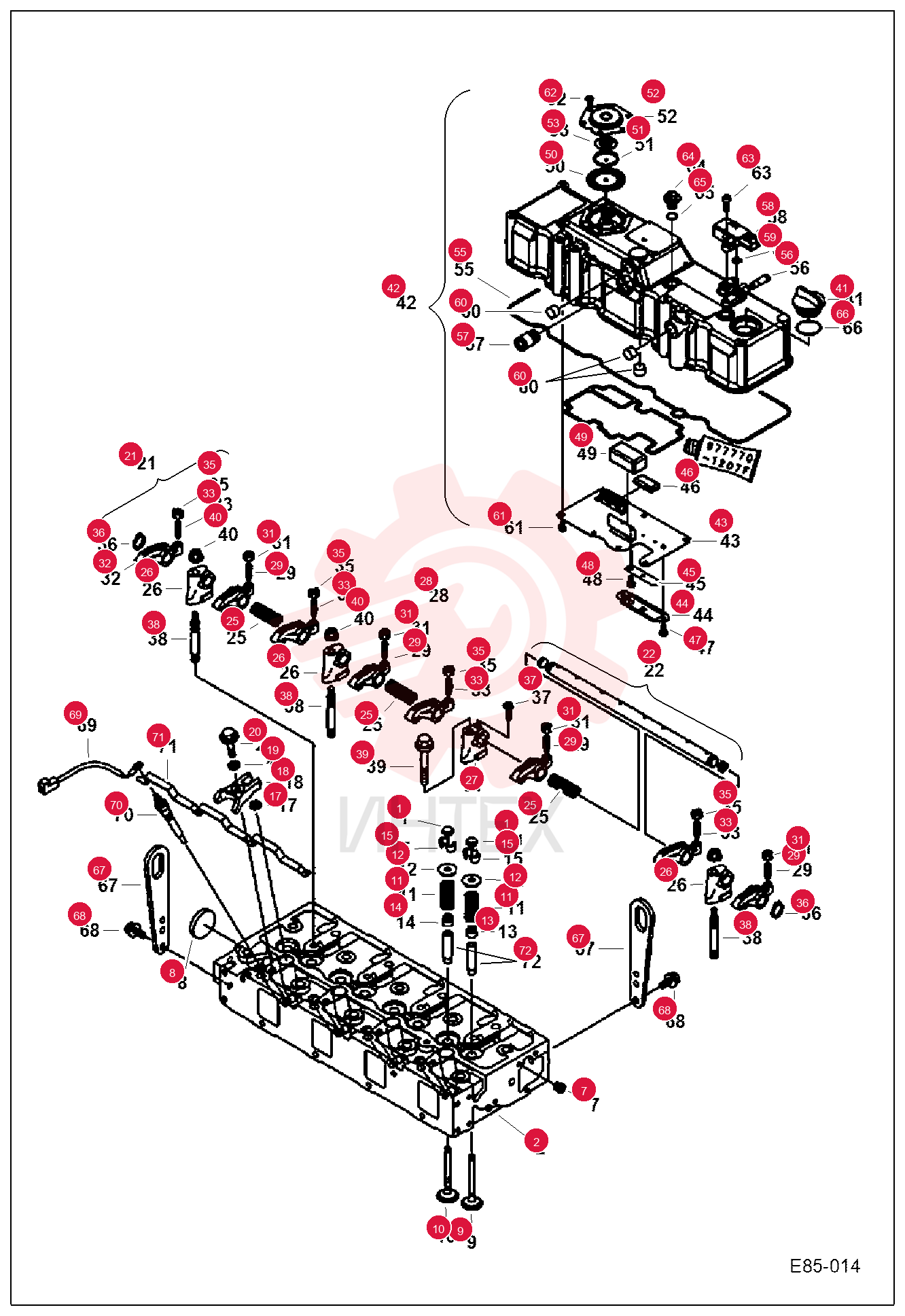

CAP 7028869 (2)

CAP 7028869 (2)

CAP 7028869 (2)

1 7028869

  • 7028869 - CAP

2 7029082

  • 7029082 - HEAD
  • CYL ENG

3 7029308

  • 7029308 - PLUG
  • W/Ref. 7-15
  • 72

4 7004293

  • 7004293 - PLUG

5 7029487

  • 7029487 - VALVE
  • SUCTION

6 7029480

  • 7029480 - VALVE
  • EXHAUST

7 7029415

  • 7029415 - SPRING
  • VALVE

8 7029323

  • 7029323 - SPRING
  • RETAINER

9 7029364

  • 7029364 - SEAL
  • STEM VALVE

10 7029363

  • 7029363 - SEAL
  • STEM VALVE

11 7028794

  • 7028794 - COLLAR

12 7029048

  • 7029048 - GASKET
  • NOZZLE INJ

13 7029322

  • 7029322 - RETAINER
  • COLLAR

14 7029489

  • 7029489 - WASHER

15 7029500

  • 7029500 - BOLT

16 7028686

  • 7028686 - ARM
  • ROCKER ASSY

17 7029338

  • 7029338 - SHAFT
  • ROCKER ARM

18 7029412

  • 7029412 - SPRING

19 7029439

  • 7029439 - SUPPORT

20 7029440

  • 7029440 - SUPPORT

21 7028688

  • 7028688 - ARM
  • ROCKER ASSY
  • W/Ref. 29
  • 31

22 7004110

  • 7004110 - SCREW VALVE

23 7004146

  • 7004146 - NUT M8

24 7028687

  • 7028687 - ARM
  • ROCKER ASSY
  • W/Ref. 33
  • 35

25 7004110

  • 7004110 - SCREW VALVE

26 7004146

  • 7004146 - NUT M8

27 7029336

  • 7029336 - RING
  • SNAP

28 7029352

  • 7029352 - SCREW

29 7029435

  • 7029435 - STUD

30 7029499

  • 7029499 - BOLT

31 7004161

  • 7004161 - NUT

32 7005107

  • 7005107 - CAP LUB OIL

33 7028796

  • 7028796 - COVER
  • VALVE ASSY
  • W/Ref. 43-63

34 7029291

  • 7029291 - PLATE
  • W/Ref. 44-48

35 7028957

  • 7028957 - COVER
  • PLATE

36 7029414

  • 7029414 - PLATE

37 7007049

  • 7007049 - DIAPHRAGM BAFFLE

38 7029349

  • 7029349 - SCREW

39 7029350

  • 7029350 - SCREW

40 7004441

  • 7004441 - DIAPHRAGM BAFFLE

41 7005096

  • 7005096 - DIAPHRAGM BREATHER

42 7005097

  • 7005097 - PLATE CENTER

43 7005098

  • 7005098 - PLATE BREATHER

44 7005099

  • 7005099 - SPRING DIAPHRAGM

45 7029041

  • 7029041 - GASKET
  • COVER VALVE

46 7029214

  • 7029214 - JOINT
  • HOSE

47 7029260

  • 7029260 - PLUG

48 7280712

  • 7280712 - SENSOR
  • PRESS
  • Was 7029389

49 7029332

  • 7029332 - O-RING

50 7005100

  • 7005100 - PLUG

51 7004105

  • 7004105 - SCREW TAPPING

52 7004105

  • 7004105 - SCREW TAPPING

53 7028702

  • 7028702 - BOLT

54 7004204

  • 7004204 - HANDLE KNOB

55 7007907

  • 7007907 - O-RING

56 7007921

  • 7007921 - O-RING

57 7004317

  • 7004317 - LIFTER ENGINE

58 7004086

  • 7004086 - BOLT PLATED M8X16

59 7028810

  • 7028810 - HARNESS
  • GLOW PLUG

60 7029315

  • 7029315 - GLOW PLUG

61 7028924

  • 7028924 - CORD
  • GLOW PLUG

62 7029068

  • 7029068 - GUIDE
  • VALVE
