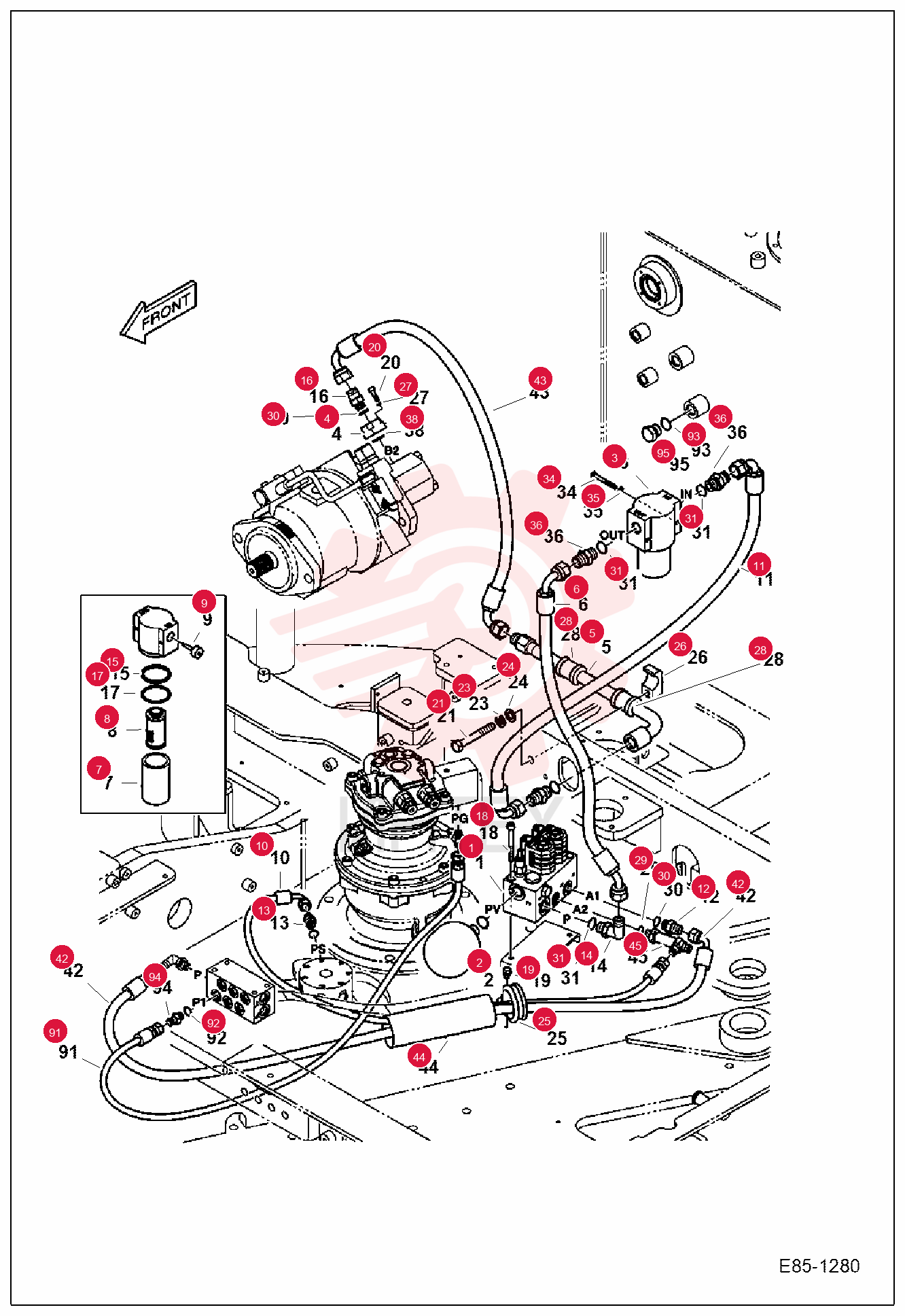

VALVE, PILOT 7028853 (3)

VALVE, PILOT 7028853 (3)

VALVE, PILOT 7028853 (3)

1 7028853

  • 7028853 - VALVE
  • PILOT

2 7004876

  • 7004876 - ACCUMULATOR

3 7276722

  • 7276722 - ELEMENT
  • FILTER

4 7004985

  • 7004985 - BLOCK

5 7024224

  • 7024224 - TUBELINE
  • HYD

6 7276727

  • 7276727 - HOSE
  • HYD

7 7276723

  • 7276723 - HOUSING

8 7004881

  • 7004881 - HOUSING

9 7275347

  • 7275347 - ELEMENT
  • FILTER

10 7004879

  • 7004879 - FILTER PILOT

11 7276724

  • 7276724 - VALVE
  • BYPASS

12 7004869

  • 7004869 - VALVE BYPASS

13 7005328

  • 7005328 - HOSE PF1/4-980L

14 7029132

  • 7029132 - HOSE
  • HYD

15 7004700

  • 7004700 - ADAPTER

16 7004683

  • 7004683 - ADAPTER

17 7004710

  • 7004710 - ELBOW

18 7276725

  • 7276725 - RING
  • BACK UP

19 7008030

  • 7008030 - RING BACK-UP

20 7004680

  • 7004680 - ADAPTER

21 7276726

  • 7276726 - O-RING

22 7008029

  • 7008029 - O-RING

23 7007743

  • 7007743 - BOLT

24 7005629

  • 7005629 - BOLT

25 7007724

  • 7007724 - BOLT

26 7007690

  • 7007690 - BOLT

27 7276728

  • 7276728 - WASHER

28 7007836

  • 7007836 - WASHER SPRING M12

29 7276729

  • 7276729 - WASHER

30 7007820

  • 7007820 - WASHER SPRING

31 7003901

  • 7003901 - CLIP

32 7006565

  • 7006565 - CLAMP

33 7276730

  • 7276730 - WASHER

34 7008301

  • 7008301 - WASHER

35 7006563

  • 7006563 - PAD

36 7283267

  • 7283267 - O-RING
  • Was 7007906

37 7284551

  • 7284551 - O-RING
  • Was 7007909

38 7284557

  • 7284557 - O-RING
  • Was 7007911

39 7007653

  • 7007653 - BOLT

40 7276731

  • 7276731 - WASHER

41 7007833

  • 7007833 - WASHER
  • SPRING

42 7004699

  • 7004699 - ADAPTER

43 7007960

  • 7007960 - O-RING

44 7332425

  • 7332425 - HOSE HYDRAULIC

45 7029171

  • 7029171 - HOSE
  • HYD

46 7029131

  • 7029131 - HOSE
  • HYD

47 7006523

  • 7006523 - GUARD PROTECTOR

48 7004744

  • 7004744 - TEE

49 7352261

  • 7352261 - HOSE HYDRAULIC

50 7005481

  • 7005481 - HOSE

51 7029109

  • 7029109 - HOSE
  • HYD

52 7283267

  • 7283267 - O-RING
  • Was 7007906

53 7284557

  • 7284557 - O-RING
  • Was 7007911

54 7004683

  • 7004683 - ADAPTER

55 7029306

  • 7029306 - PLUG
