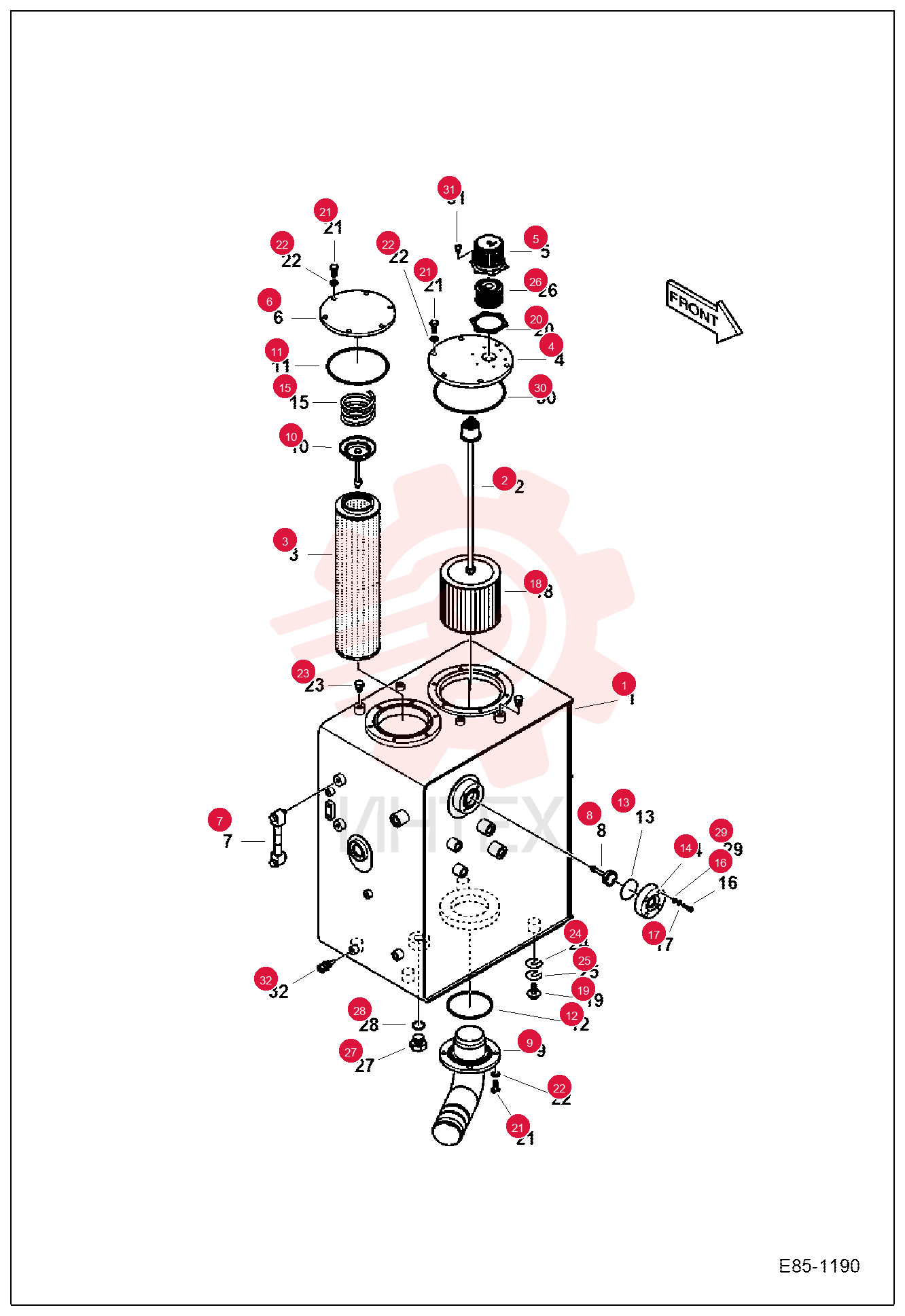

TANK, OIL 7028842 (1)

TANK, OIL 7028842 (1)

TANK, OIL 7028842 (1)

1 7028842

  • 7028842 - TANK
  • OIL

2 7006462

  • 7006462 - FILTER SUCTION

3 7004884

  • 7004884 - FILTER RETURN

4 7004882

  • 7004882 - COVER

5 7276396

  • 7276396 - FILTER
  • BREATHER AIR
  • W/Ref. 20 & 26

6 7004997

  • 7004997 - COVER

7 7003868

  • 7003868 - GAUGE LEVEL

8 7276450

  • 7276450 - VALVE
  • BYPASS

9 7029276

  • 7029276 - PIPE
  • SUCTION

10 7276449

  • 7276449 - VALVE
  • BYPASS

11 7007955

  • 7007955 - O-RING

12 7007946

  • 7007946 - O-RING

13 7007936

  • 7007936 - O-RING

14 7006061

  • 7006061 - COVER TANK

15 7004593

  • 7004593 - SPRING

16 7007726

  • 7007726 - BOLT

17 7007833

  • 7007833 - WASHER
  • SPRING

18 7006811

  • 7006811 - FILTER STRAINER SUCTION

19 7005122

  • 7005122 - BOLT SET

20 7006946

  • 7006946 - GASKET

21 7007628

  • 7007628 - BOLT

22 7007835

  • 7007835 - WASHER SPRING

23 7007635

  • 7007635 - BOLT M12X1.75X16

24 7003859

  • 7003859 - SHIM

25 7006522

  • 7006522 - SHIM

26 7006806

  • 7006806 - FILTER
  • AIR BREATHER
  • Use W/Ref. 5 (NLA/ 7006807 filter assy)

27 7276395

  • 7276395 - ELEMENT
  • FILTER
  • Use W/Ref. 5 (7276396 filter assy)

28 7318870

  • 7318870 - FILTER ELEMENT
  • Use W/Ref. 5 (7276396 filter assy)

29 7005575

  • 7005575 - PLUG

30 7007916

  • 7007916 - O-RING

31 7007814

  • 7007814 - WASHER

32 7007956

  • 7007956 - O-RING

33 7007719

  • 7007719 - BOLT

34 7029387

  • 7029387 - SENSOR
  • HYD OIL TEMP
