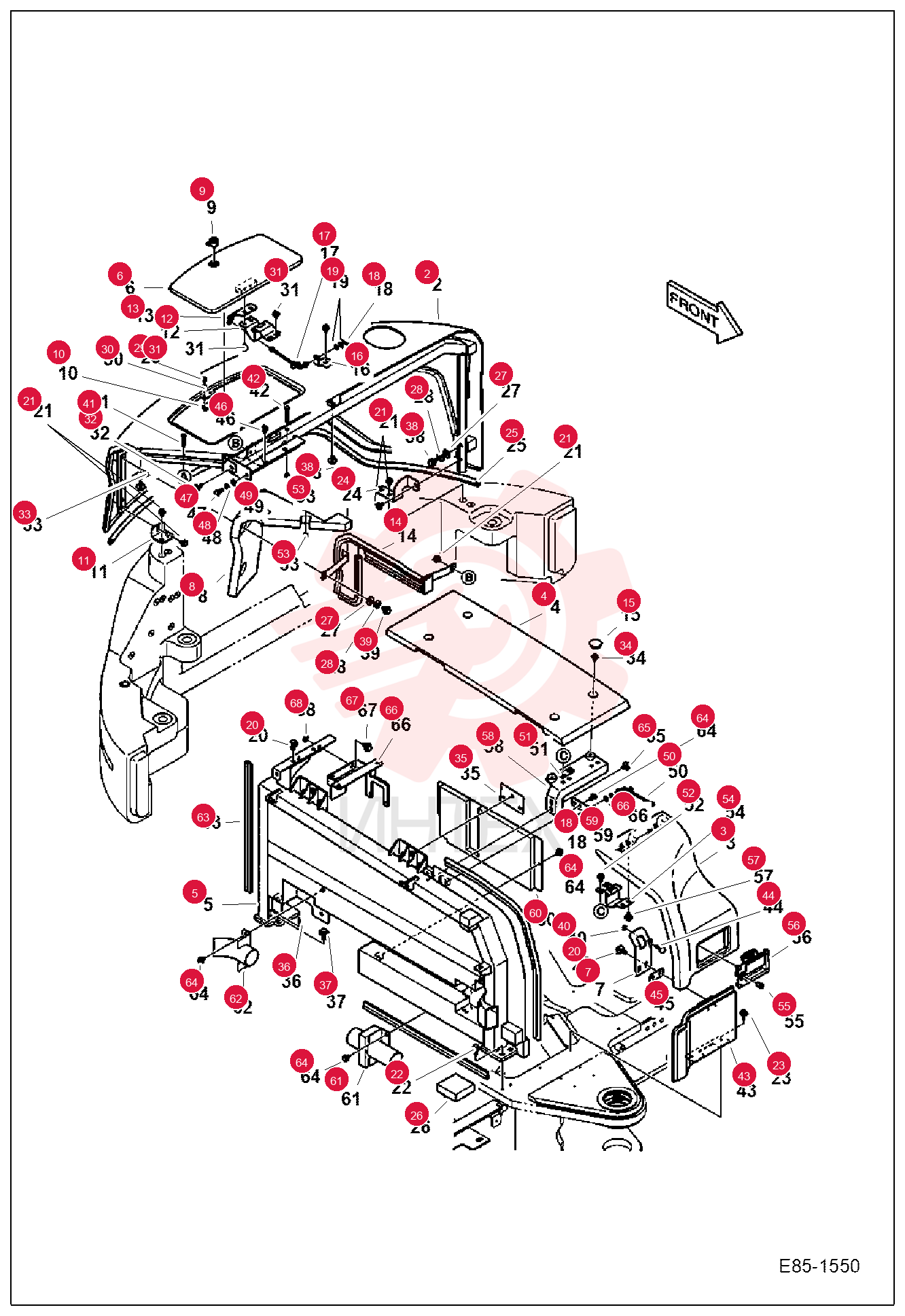

COVER ASSEMBLY 7028941 (1)

COVER ASSEMBLY 7028941 (1)

COVER ASSEMBLY 7028941 (1)

1 7028941

  • 7028941 - COVER ASSEMBLY
  • W/Ref. 6
  • 8
  • 9
  • 10
  • 13
  • 16
  • 25
  • 27-32
  • 38-42
  • 53

2 7028940

  • 7028940 - COVER ASSEMBLY
  • W/Ref. 54-57

3 7017398

  • 7017398 - COVER
  • SIDE

4 7028962

  • 7028962 - COVER
  • RH
  • W/Ref. 58-68

5 7008243

  • 7008243 - COVER
  • ROOF

6 7029428

  • 7029428 - PLATE

7 7271153

  • 7271153 - INSULATION

8 7017394

  • 7017394 - SEAL

9 7006690

  • 7006690 - KEY LOCK

10 7006689

  • 7006689 - PLATE

11 7029286

  • 7029286 - PLATE

12 7008255

  • 7008255 - HINGE

13 7017395

  • 7017395 - PLATE

14 7028689

  • 7028689 - BAFFLE

15 7017405

  • 7017405 - PLUG

16 7017396

  • 7017396 - PLATE

17 7006662

  • 7006662 - STRAP

18 7004569

  • 7004569 - PIN

19 7007816

  • 7007816 - WASHER

20 7005120

  • 7005120 - BOLT SET

21 7005129

  • 7005129 - BOLT SET

22 7005124

  • 7005124 - BOLT SET

23 7005132

  • 7005132 - BOLT SET

24 7006762

  • 7006762 - PLATE

25 7006681

  • 7006681 - SEAL
  • EXTRUSION

26 7015409

  • 7015409 - SPONGE

27 7005597

  • 7005597 - SHIM

28 7005598

  • 7005598 - SHIM

29 7007786

  • 7007786 - BOLT

30 7007833

  • 7007833 - WASHER
  • SPRING

31 7005129

  • 7005129 - BOLT SET

32 7005128

  • 7005128 - BOLT SET

33 7015416

  • 7015416 - SHIM

34 7012228

  • 7012228 - BOLT
  • FLANGE

35 7017406

  • 7017406 - SHIM

36 7017407

  • 7017407 - PIN
  • KNOCK

37 7005127

  • 7005127 - BOLT SET

38 7005136

  • 7005136 - BOLT SET

39 7005121

  • 7005121 - BOLT SET

40 7007796

  • 7007796 - NUT

41 7017397

  • 7017397 - BOLT

42 7007660

  • 7007660 - BOLT

43 7028795

  • 7028795 - COVER
  • BATTERY

44 7029424

  • 7029424 - BOLT

45 7029401

  • 7029401 - SPACER

46 7005121

  • 7005121 - BOLT SET

47 7007628

  • 7007628 - BOLT

48 7007830

  • 7007830 - WASHER SPRING

49 7007818

  • 7007818 - WASHER PLAIN M10

50 7029418

  • 7029418 - ROD

51 7029402

  • 7029402 - SPACER

52 7005137

  • 7005137 - BOLT M8X1.25X25

53 7007796

  • 7007796 - NUT

54 7029084

  • 7029084 - HINGE
  • COVER

55 7005642

  • 7005642 - CYLINDER KEY

56 7029221

  • 7029221 - LATCH
  • FRONT

57 7005129

  • 7005129 - BOLT SET

58 7017400

  • 7017400 - BRACKET

59 7029282

  • 7029282 - PLATE

60 7028736

  • 7028736 - BRACKET

61 7017401

  • 7017401 - BRACKET

62 7006678

  • 7006678 - BRACKET

63 7017402

  • 7017402 - STRIP
  • WEATHER

64 7005129

  • 7005129 - BOLT SET

65 7005136

  • 7005136 - BOLT SET

66 7028737

  • 7028737 - BRACKET

67 7005121

  • 7005121 - BOLT SET

68 7007798

  • 7007798 - NUT M10X1.5
