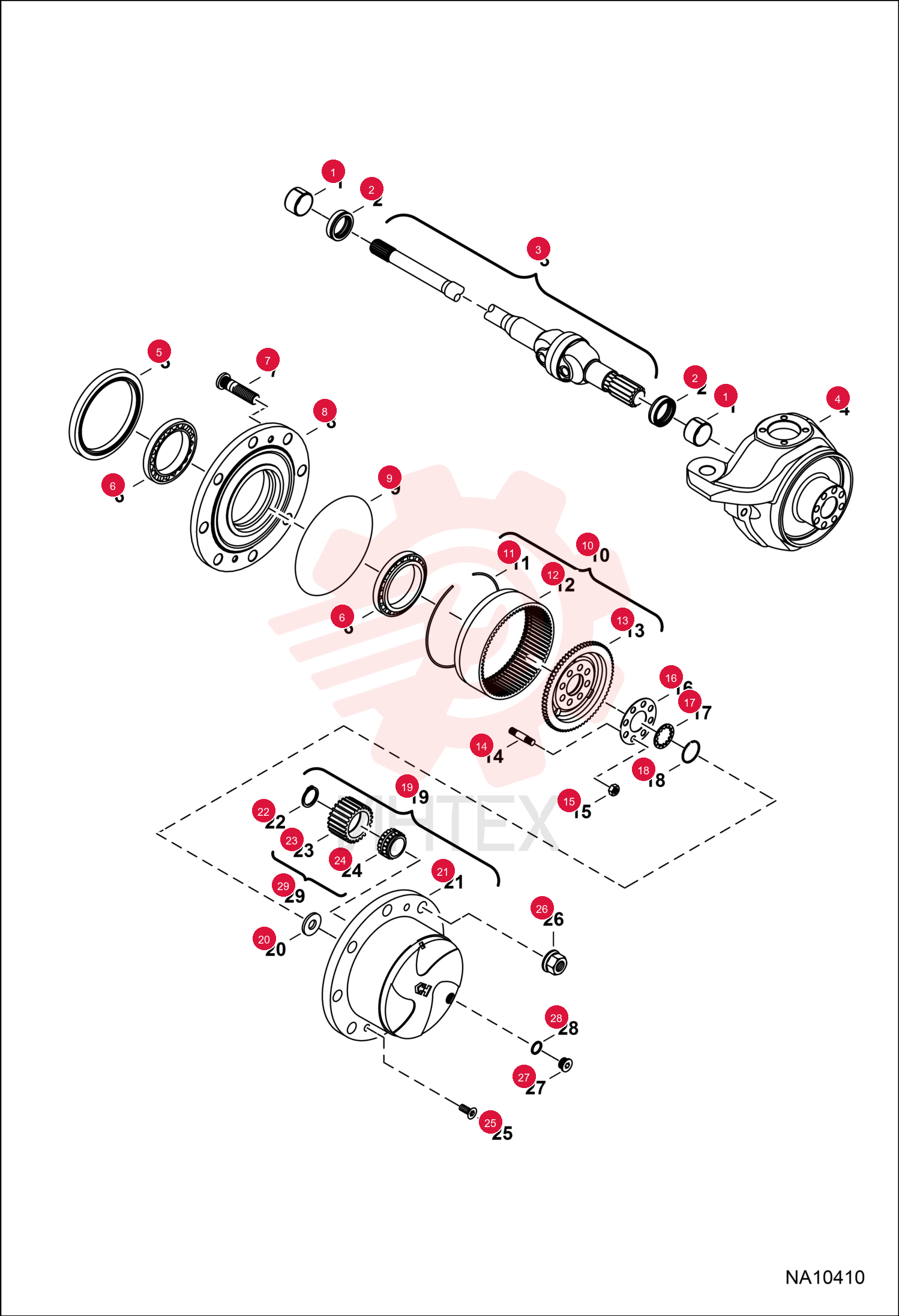

BUSHING AXLE 7283041

BUSHING AXLE 7283041

BUSHING AXLE 7283041

1 7283041

  • 7283041 - BUSHING AXLE

2 7269865

  • 7269865 - SEAL AXLE

3 7267730

  • 7267730 - SHAFT
  • DRIVE

4 7311845

  • 7311845 - JOINT DOUBLE UNIVERSAL

5 7011191

  • 7011191 - CASE
  • STRG

6 7011190

  • 7011190 - CASE
  • STRG

7 7268086

  • 7268086 - SEAL

8 7003991

  • 7003991 - BEARING

9 6912697

  • 6912697 - WHEEL STUD

10 6912721

  • 6912721 - WHEEL HUB

11 6912715

  • 6912715 - O'RING

12 6912149

  • 6912149 - SUPPORT

13 6912660

  • 6912660 - SNAP RING

14 6912667

  • 6912667 - RING GEAR

15 6912751

  • 6912751 - SUPPORT

16 6912695

  • 6912695 - STUD

17 6912683

  • 6912683 - NUT

18 6912756

  • 6912756 - SAFETY PLATE

19 6925365

  • 6925365 - SPACER

20 7008050

  • 7008050 - SPACER

21 6912657

  • 6912657 - SNAP RING

22 6912150

  • 6912150 - SUPPORT

23 6912737

  • 6912737 - WASHER

24 6912753

  • 6912753 - SUPPORT

25 6912663

  • 6912663 - SNAP RING

26 7311846

  • 7311846 - GEAR PLANETARY

27 6912749

  • 6912749 - SATELLITE

28 7311847

  • 7311847 - BEARING AXLE

29 6912748

  • 6912748 - BEARING

30 6912767

  • 6912767 - SCREW

31 6912686

  • 6912686 - NUT

32 6912625

  • 6912625 - PLUG

33 7311848

  • 7311848 - PLANET GEAR KIT

34 7247494

  • 7247494 - GEAR
  • DIFF
