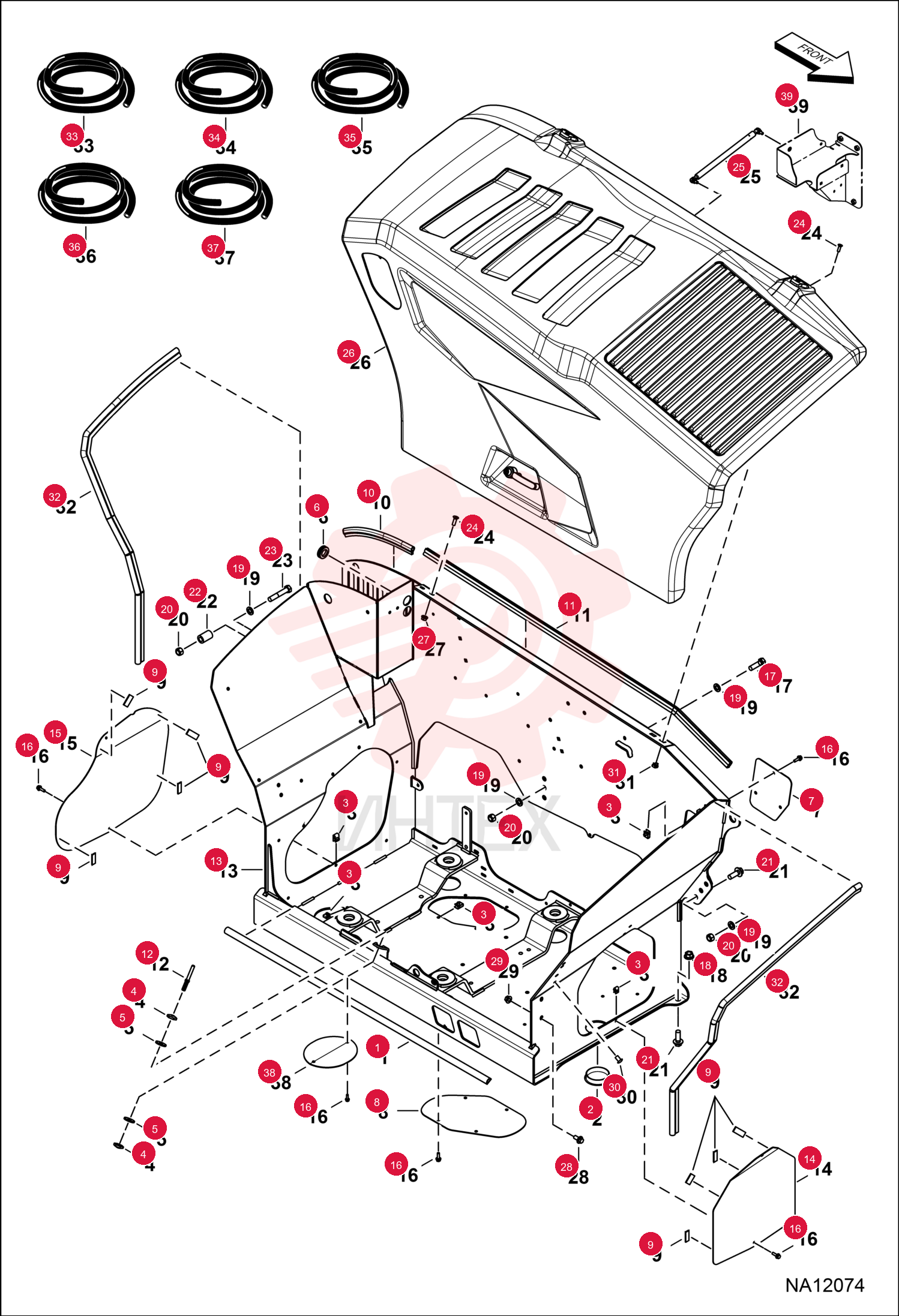

PLUG PLASTIC 7342116

PLUG PLASTIC 7342116

PLUG PLASTIC 7342116

1 7342116

  • 7342116 - PLUG PLASTIC

2 7192660

  • 7192660 - NUT

3 7218273

  • 7218273 - NUT

4 7331104

  • 7331104 - WASHER 13X32X2.5

5 7246445

  • 7246445 - GROMMET

6 7269311-GB

  • 7269311-GB - PLATE
  • COVER

7 7270308-GB

  • 7270308-GB - COVER

8 7297113

  • 7297113 - PIN

9 7339710-GB

  • 7339710-GB - BASKET ENGINE

10 7294400-GB

  • 7294400-GB - PLATE

11 7302259-GB

  • 7302259-GB - COVER
  • REAR

12 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

13 10CM1655

  • 10CM1655 - BOLT

14 43DM16

  • 43DM16 - NUT

15 18EM1630

  • 18EM1630 - WASHER

16 7202845

  • 7202845 - NUT

17 7202846

  • 7202846 - SCREW

18 7266401

  • 7266401 - SPACER

19 7CM1690

  • 7CM1690 - SCREW

20 23GM825

  • 23GM825 - SCREW

21 7299653

  • 7299653 - SPRING

22 43DM8

  • 43DM8 - NUT FLANGED HEX

23 29CM1225

  • 29CM1225 - BOLT

24 51DM12

  • 51DM12 - NUT

25 7192725

  • 7192725 - PLUG
  • PLASTIC

26 7254120

  • 7254120 - NUT
  • CLIP

27 7296915

  • 7296915 - FOAM

28 7194632

  • 7194632 - SEAL
  • BULK

29 7196170

  • 7196170 - GASKET

30 7272122

  • 7272122 - SEAL

31 7312888

  • 7312888 - SEAL BULK

32 7260533-GB

  • 7260533-GB - COVER
