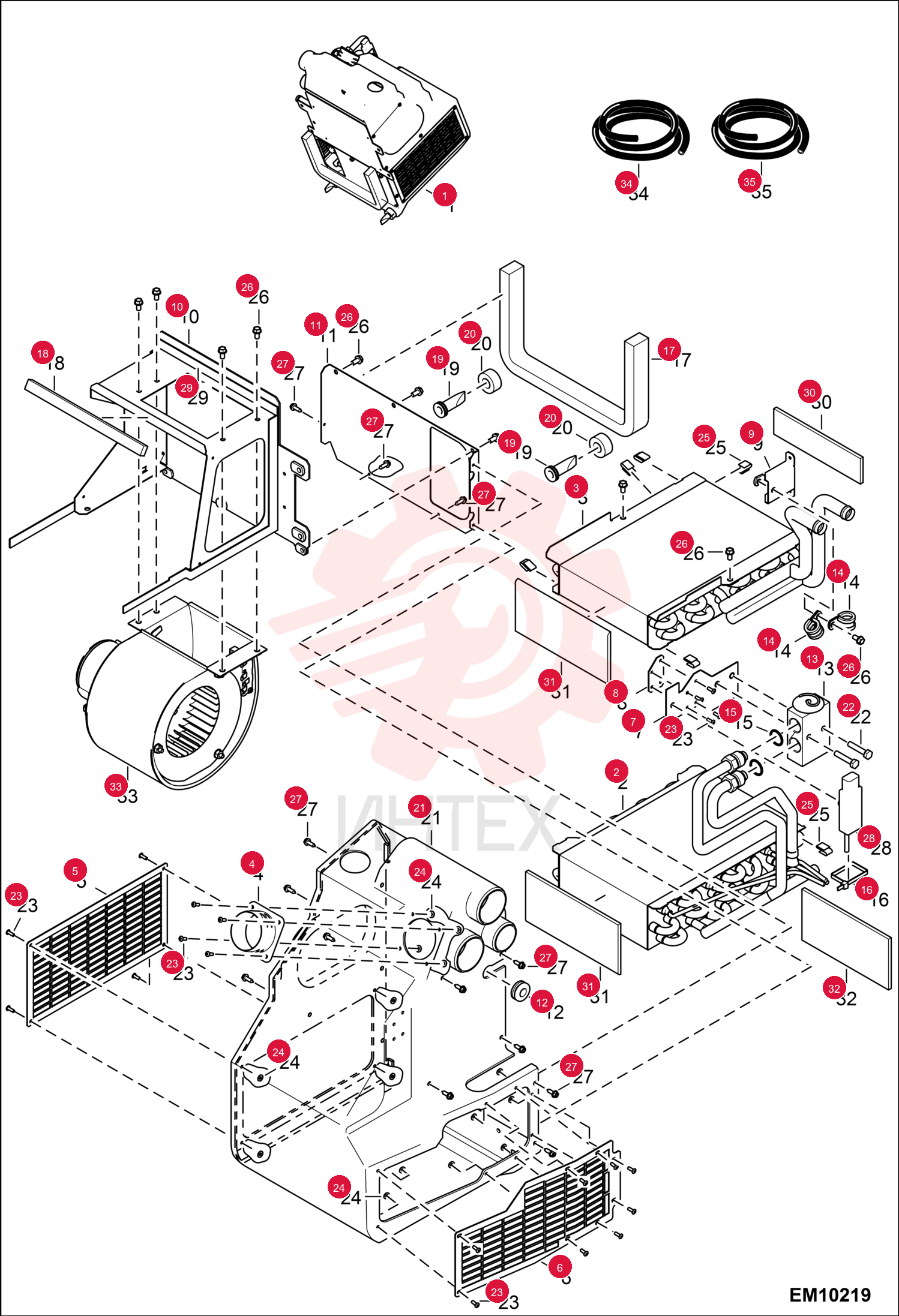

HVAC ASSEMBLY 7217214

HVAC ASSEMBLY 7217214

HVAC ASSEMBLY 7217214

1 7217214

  • 7217214 - HVAC ASSEMBLY

2 7031320

  • 7031320 - COIL
  • EVAPORATOR

3 7031321

  • 7031321 - COIL
  • HEATER

4 7015465

  • 7015465 - HOSE

5 7015460

  • 7015460 - SIDE GRILL

6 7031322

  • 7031322 - GRILLE

7 7031323

  • 7031323 - BRACKET
  • VALVE

8 7031324

  • 7031324 - PLATE

9 7031325

  • 7031325 - BRACKET

10 7031326

  • 7031326 - HOUSING
  • BLOWER

11 7031327

  • 7031327 - PLATE
  • BACK

12 7015458

  • 7015458 - WIRING HARNESS

13 6675534

  • 6675534 - BLOCK
  • VALVE A/C

14 6675512

  • 6675512 - CLAMP

15 7009977

  • 7009977 - O-RING

16 7003463

  • 7003463 - VALVE
  • DRAIN

17 7015456

  • 7015456 - GASKET

18 7031328

  • 7031328 - COVER
  • HVAC

19 6691534

  • 6691534 - SCREW

20 7010691

  • 7010691 - POP RIVET

21 7031329

  • 7031329 - WASHER

22 6676539

  • 6676539 - CLIP PANEL

23 6691532

  • 6691532 - SCREW

24 6677579

  • 6677579 - SCREW

25 7015454

  • 7015454 - THERMOSTAT

26 6696953

  • 6696953 - FOAM

27 7022138

  • 7022138 - INSULATION

28 7010406

  • 7010406 - INSULATION
  • HEATER

29 7010406

  • 7010406 - INSULATION
  • HEATER

30 7015468

  • 7015468 - BLOWER

31 6677111

  • 6677111 - SEAL FOAM BULK/FT

32 7003460

  • 7003460 - SEAL
  • FOAM
