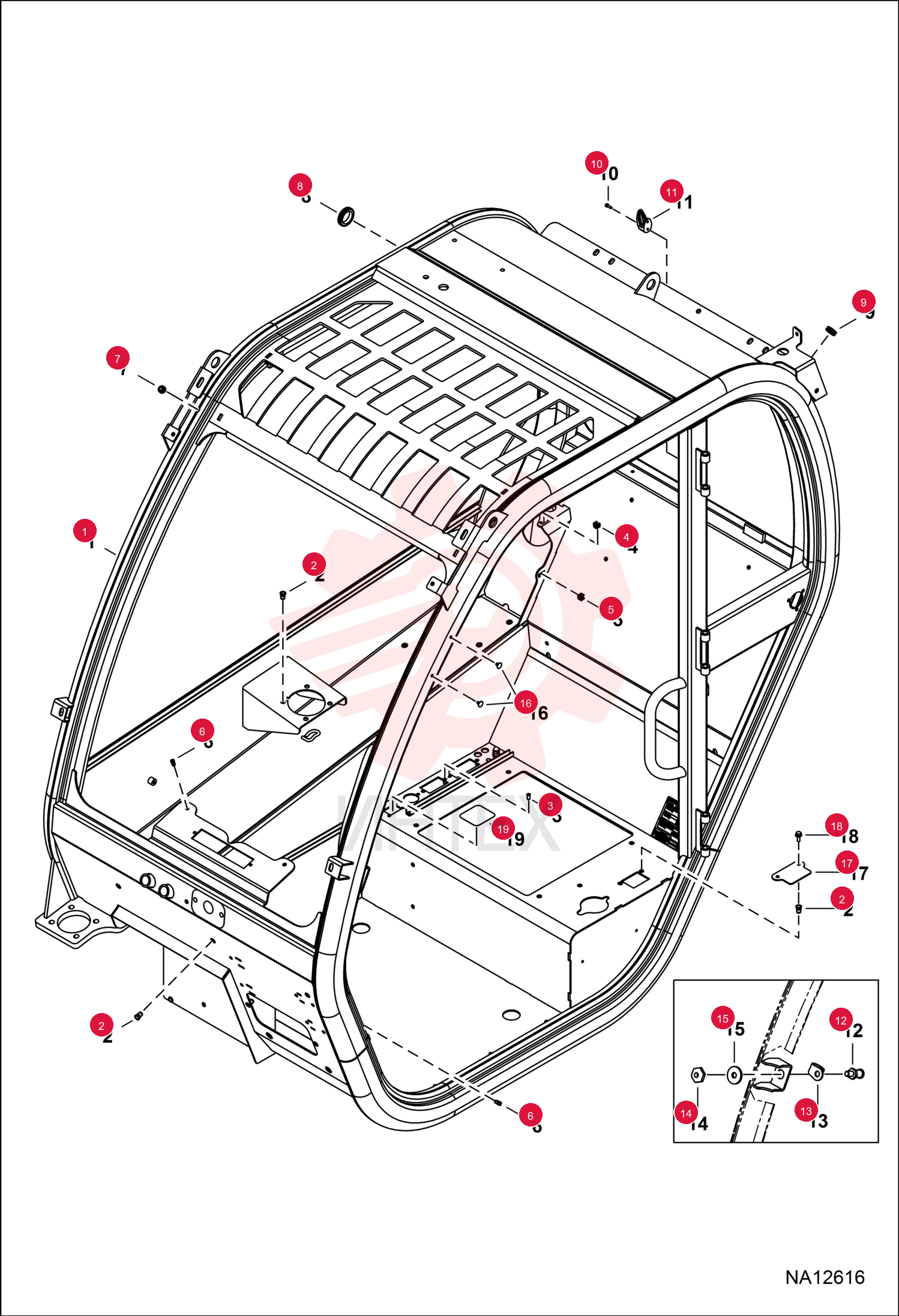

NUT 7224182

NUT 7224182

NUT 7224182

1 7224182

  • 7224182 - NUT

2 7224238

  • 7224238 - NUT

3 7226174

  • 7226174 - NUT

4 7226175

  • 7226175 - NUT

5 7231517

  • 7231517 - NUT

6 7223540

  • 7223540 - GROMMET

7 7223541

  • 7223541 - GROMMET

8 7232327

  • 7232327 - GROMMET

9 1GM412

  • 1GM412 - SCREW
  • HEX SOCKET CAP

10 7223537

  • 7223537 - SUPPORT

11 7218271

  • 7218271 - PIN

12 7218272

  • 7218272 - GUARD

13 7218273

  • 7218273 - NUT

14 7218274

  • 7218274 - WASHER

15 7253924

  • 7253924 - PLUG

16 7293659

  • 7293659 - COVER

17 29CM616

  • 29CM616 - SCREW FLGD HEX CAP
