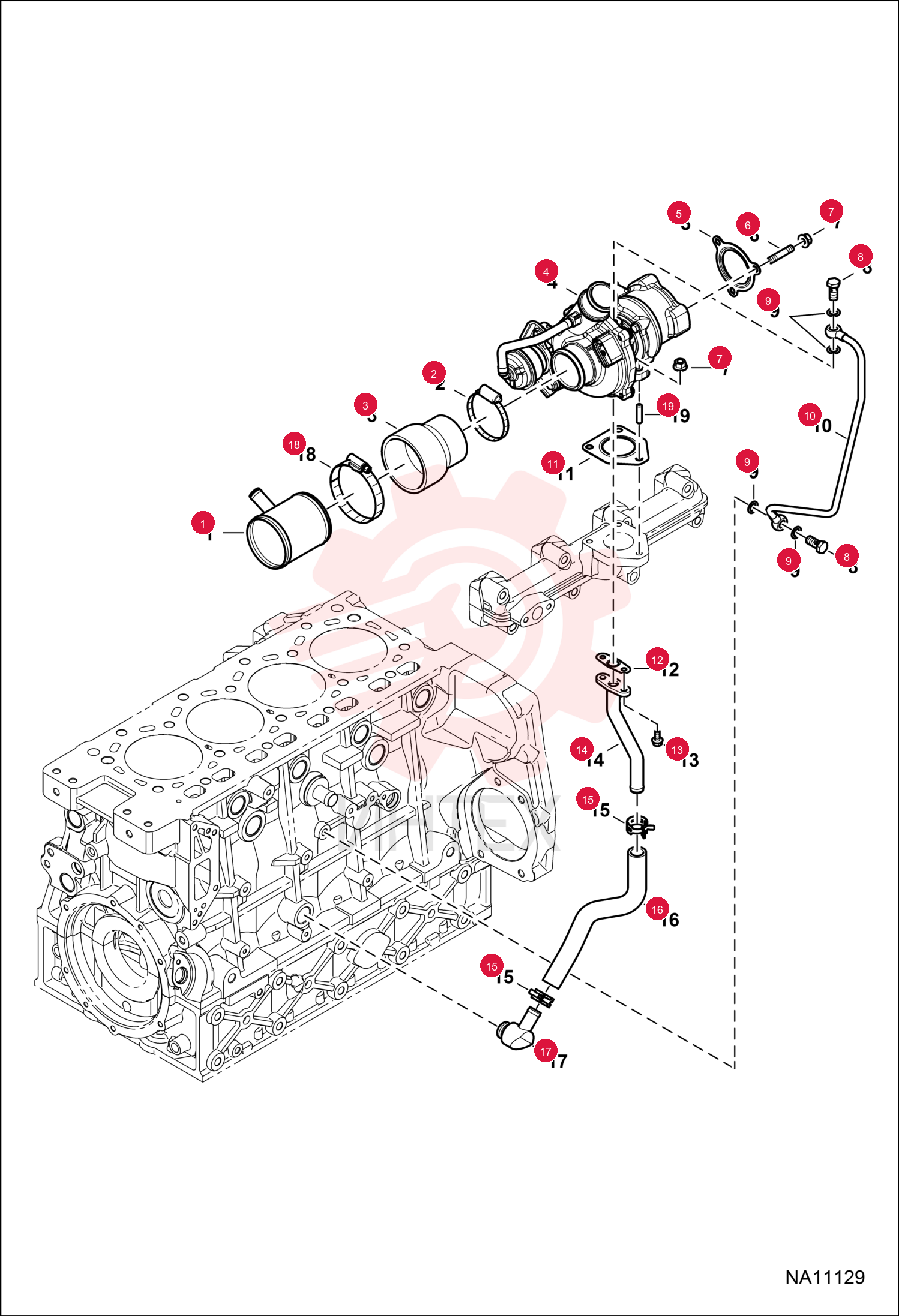

PIPE, INTAKE 7298807

PIPE, INTAKE 7298807

PIPE, INTAKE 7298807

1 7298807

  • 7298807 - PIPE
  • INTAKE

2 7030828

  • 7030828 - CLAMP
  • HOSE

3 7298808

  • 7298808 - HOSE
  • SUCTION

4 7295348

  • 7295348 - TURBOCHARGER

5 7030341

  • 7030341 - GASKET TURBOCHARGER

6 7256728

  • 7256728 - STUD

7 7030370

  • 7030370 - NUT

8 7261662

  • 7261662 - SCREW

9 7030420

  • 7030420 - RING
  • SEAL

10 7360143

  • 7360143 - PIPE OIL

11 7298809

  • 7298809 - PIPE
  • OIL

12 7256787

  • 7256787 - GASKET TURBOCHARGER

13 7030339

  • 7030339 - GASKET

14 7030282

  • 7030282 - BOLT

15 7298810

  • 7298810 - PIPE
  • OIL

16 7030308

  • 7030308 - CLAMP
  • HOSE

17 7360141

  • 7360141 - HOSE RETURN

18 7298811

  • 7298811 - HOSE
  • RETURN

19 7298812

  • 7298812 - PLUG
  • OIL

20 7298813

  • 7298813 - CLAMP
  • HOSE

21 7030288

  • 7030288 - STUD
