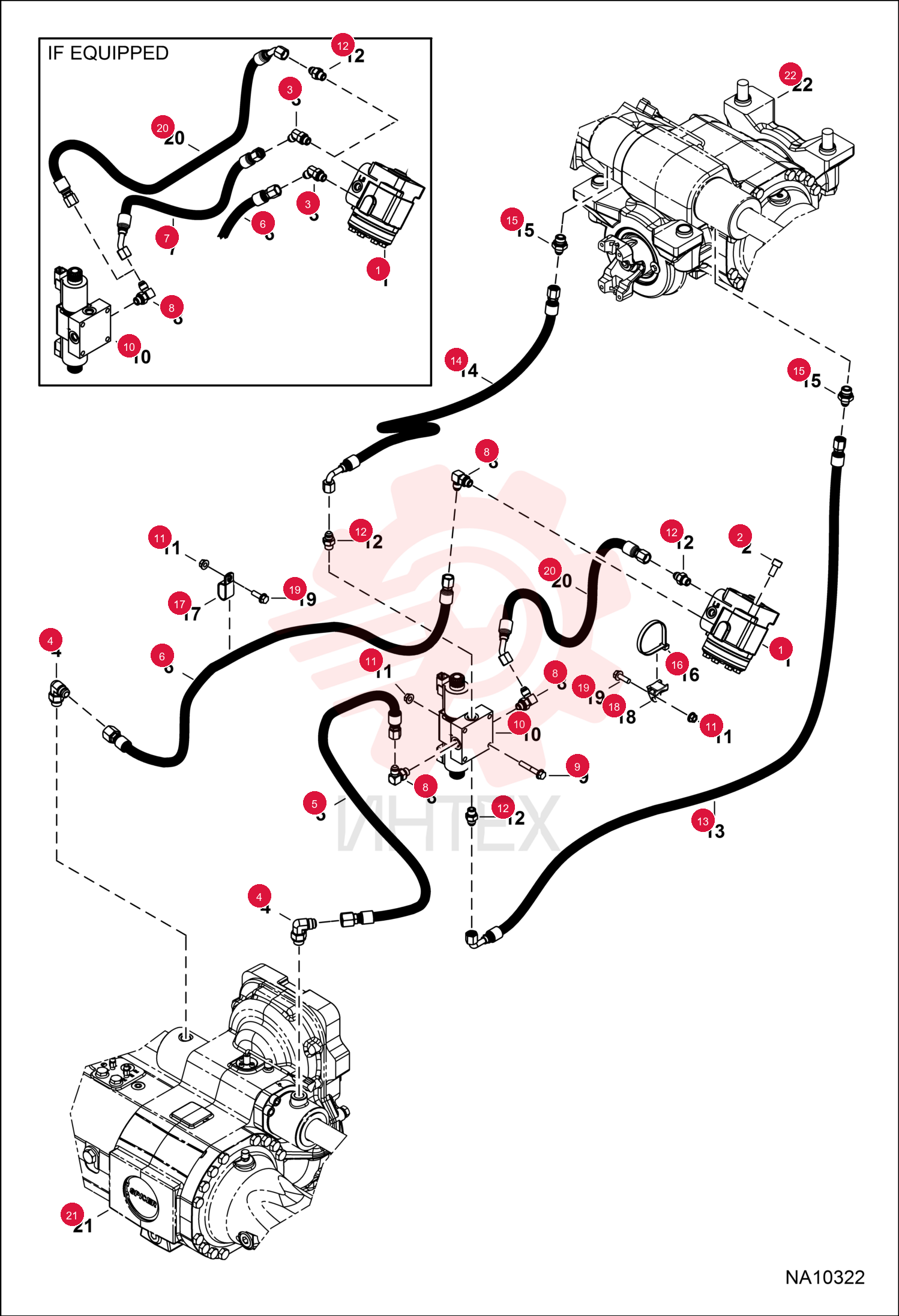

VALVE STEERING 7338491

VALVE STEERING 7338491

VALVE STEERING 7338491

1 7338491

  • 7338491 - VALVE STEERING

2 6GM1020

  • 6GM1020 - SCREW

3 79K6

  • 79K6 - O RING 10

4 18KB0606

  • 18KB0606 - FITTING
  • HYD ELBOW

5 7228465

  • 7228465 - FITTING

6 7250318

  • 7250318 - HOSE
  • HYD ASSY

7 7246675

  • 7246675 - HOSE
  • HYD ASSY

8 7261572

  • 7261572 - HOSE
  • HYD ASSY

9 79K6

  • 79K6 - O RING 10

10 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

11 29CM850

  • 29CM850 - SCREW

12 7302391

  • 7302391 - COIL

13 7260516

  • 7260516 - VALVE

14 43DM8

  • 43DM8 - NUT FLANGED HEX

15 79K6

  • 79K6 - O RING 10

16 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

17 7260517

  • 7260517 - HOSE
  • HYD ASSY

18 7261105

  • 7261105 - HOSE
  • HYD ASSY

19 7168452

  • 7168452 - FITTING

20 6624289

  • 6624289 - STRAP
  • TIE

21 31H34

  • 31H34 - CLIP

22 6678818

  • 6678818 - MOUNT

23 29CM830

  • 29CM830 - SCREW HEX

24 7244738

  • 7244738 - HOSE HYDRAULIC
