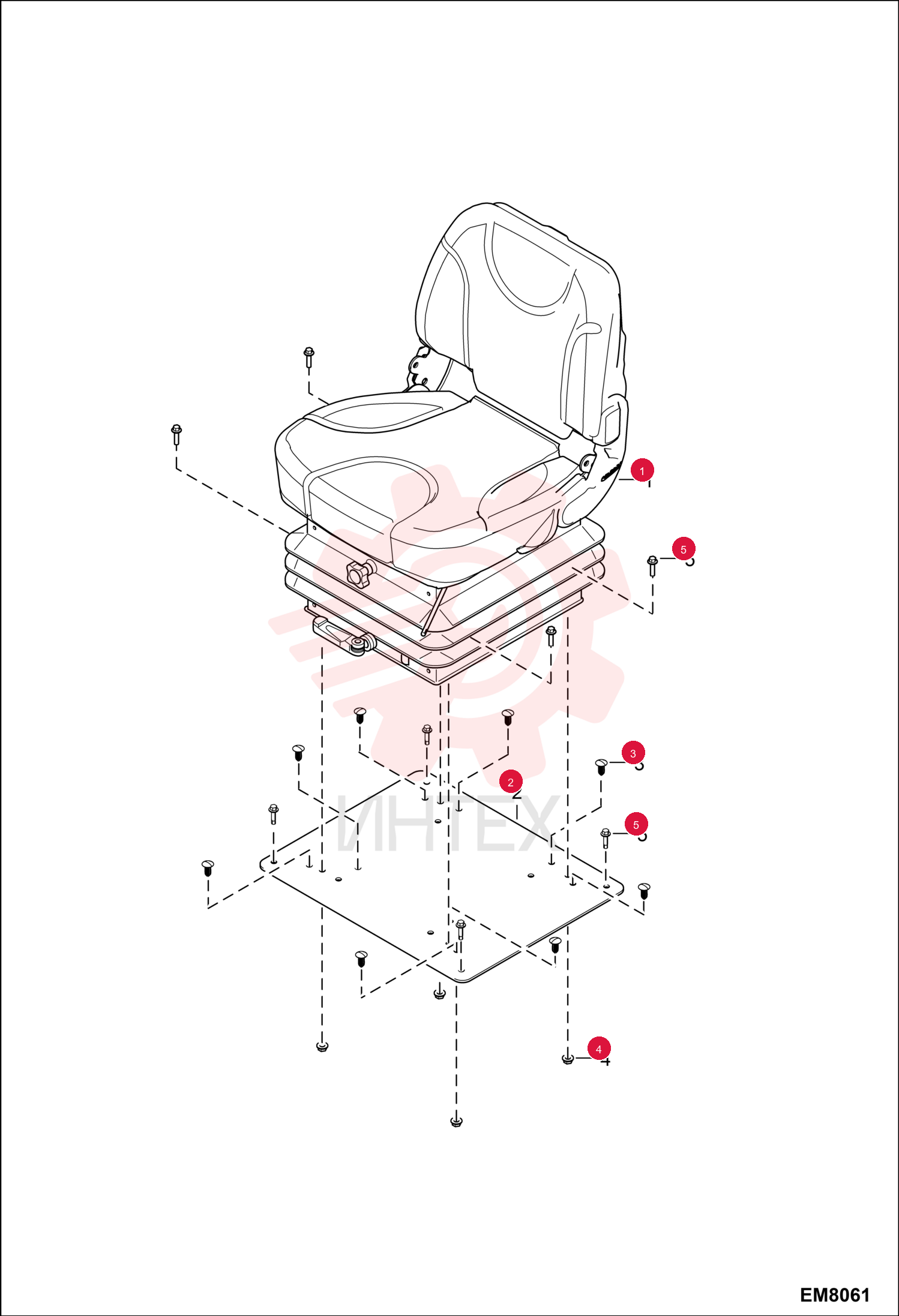

SEAT, MECHANICAL 7236461 (2)

SEAT, MECHANICAL 7236461 (2)

SEAT, MECHANICAL 7236461 (2)

1 7236461

  • 7236461 - SEAT
  • MECHANICAL

2 7192724

  • 7192724 - PLATE SEAT

3 7192725

  • 7192725 - PLUG
  • PLASTIC

4 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

5 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP
