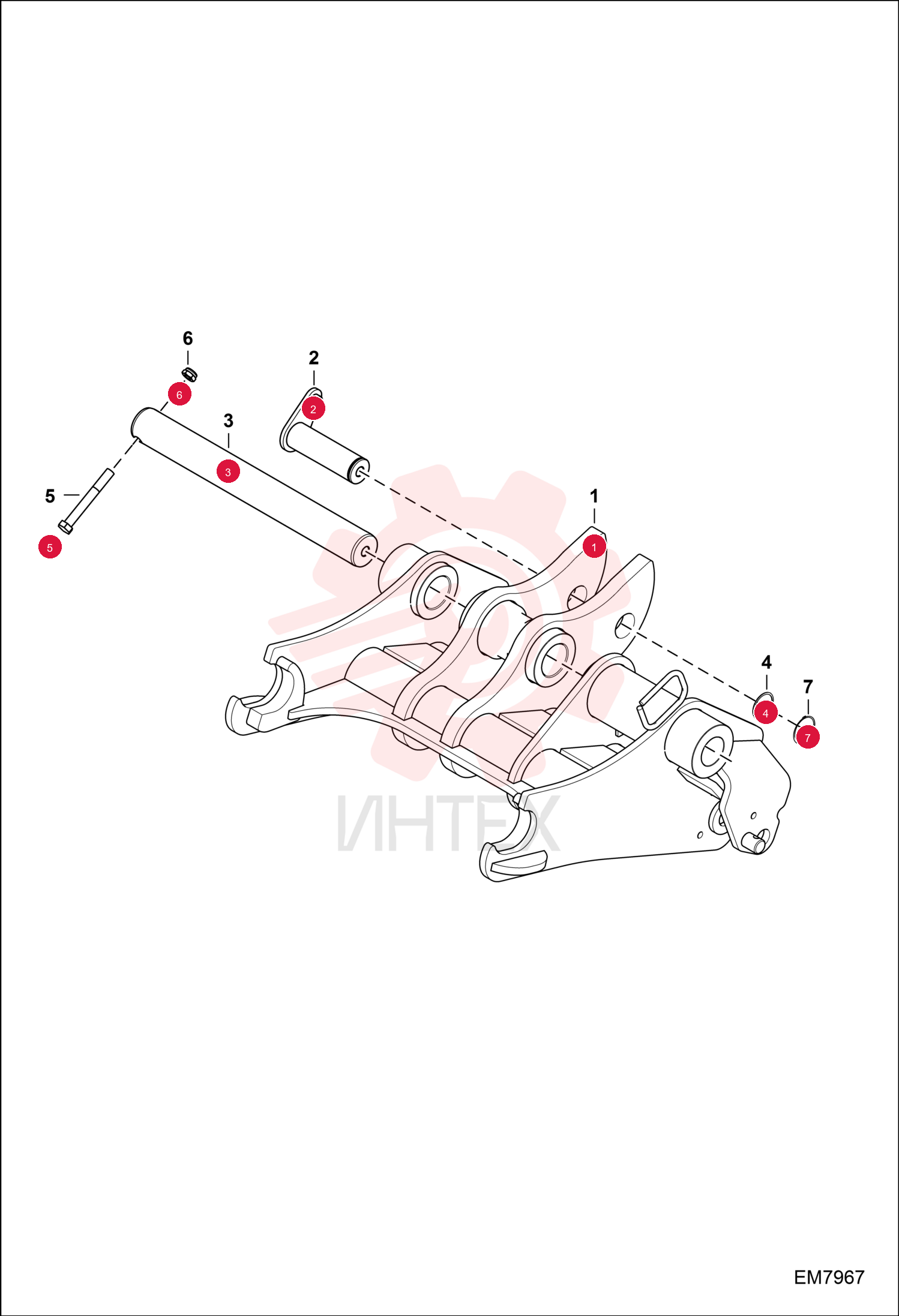

QUICKTACH W/A 7207687-GB

QUICKTACH W/A 7207687-GB

QUICKTACH W/A 7207687-GB

1 7207687-GB

  • 7207687-GB - QUICKTACH W/A

2 7189758

  • 7189758 - PIN

3 7190153

  • 7190153 - PIN

4 7308912

  • 7308912 - WASHER FLAT

5 1CM16130

  • 1CM16130 - SCREW HEX HEAD

6 1CM16150

  • 1CM16150 - SCREW

7 7245395

  • 7245395 - NUT LOCK

8 4DM16

  • 4DM16 - NUT

9 6JM50

  • 6JM50 - RING
