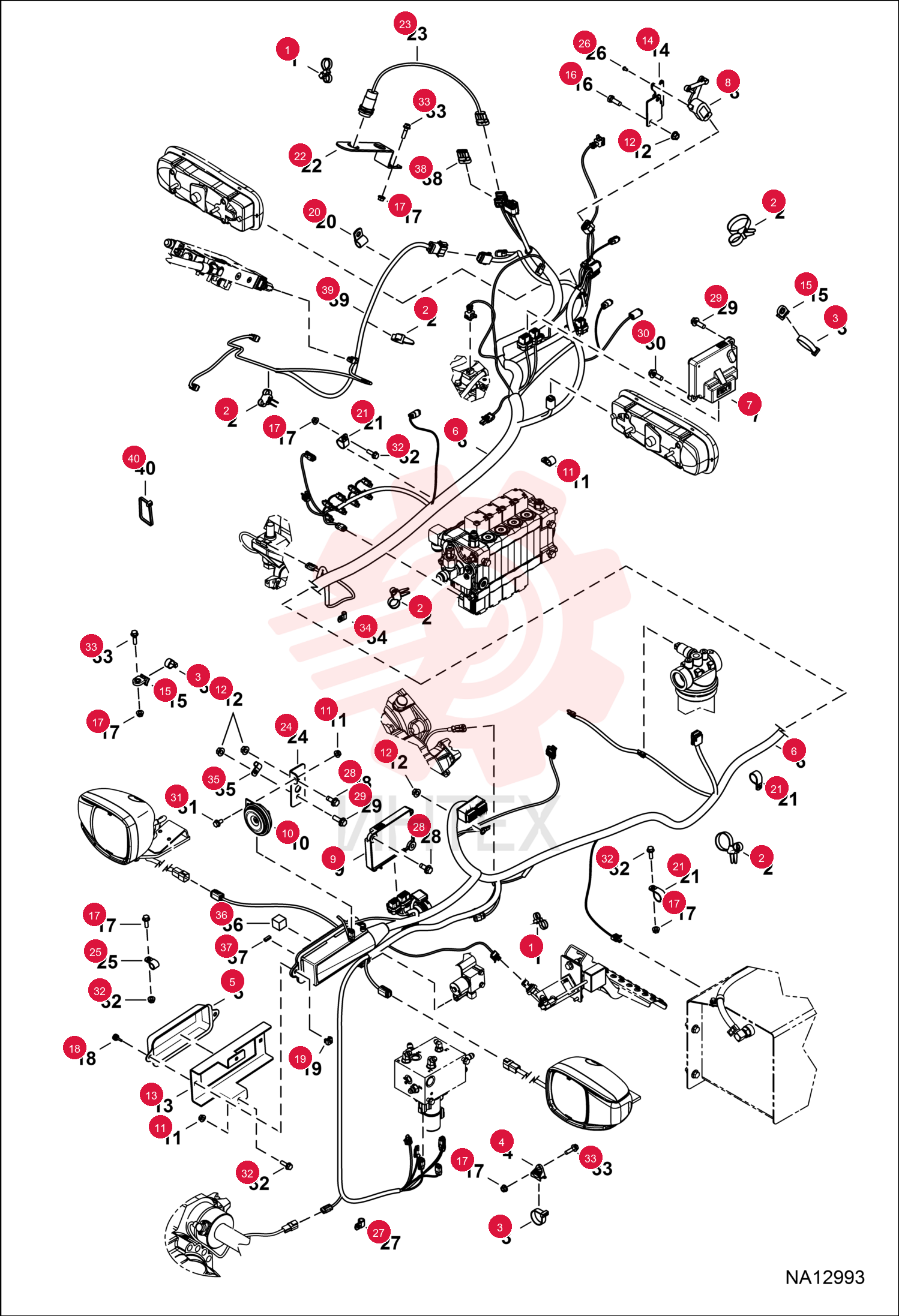

STRAP, TIE DUAL 7221316

STRAP, TIE DUAL 7221316

STRAP, TIE DUAL 7221316

1 7221316

  • 7221316 - STRAP
  • TIE DUAL

2 6678668

  • 6678668 - STRAP

3 6678669

  • 6678669 - STRAP T250 H/D

4 6678818

  • 6678818 - MOUNT

5 6716621

  • 6716621 - COVER
  • FUSE

6 7257484

  • 7257484 - HARNESS FRAME

7 7333154

  • 7333154 - HARNESS FRAME

8 7163743

  • 7163743 - CONTROLLER

9 7164102

  • 7164102 - SENSOR
  • BOOM

10 7164106

  • 7164106 - CONTROLLER

11 7164107

  • 7164107 - HORN
  • ALARM

12 30H37

  • 30H37 - CLIP INSULATED

13 43DM10

  • 43DM10 - NUT FLANGED HEX

14 7171780

  • 7171780 - BRACKET

15 7175031

  • 7175031 - BRACKET

16 7342959

  • 7342959 - BRACKET SENSOR

17 6684641

  • 6684641 - MOUNT

18 4CM1030

  • 4CM1030 - SCREW

19 43DM8

  • 43DM8 - NUT FLANGED HEX

20 7181242

  • 7181242 - SCREW

21 7181243

  • 7181243 - NUT

22 30H40

  • 30H40 - CLAMP

23 30H57

  • 30H57 - CLAMP

24 7275332

  • 7275332 - BRACKET

25 7209507

  • 7209507 - SENSOR
  • RETRACT

26 7191369

  • 7191369 - BRACKET
  • HORN

27 30H45

  • 30H45 - CLIP

28 27CM510

  • 27CM510 - SCREW HX SOC HD CAP

29 30H30

  • 30H30 - CLIP

30 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

31 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

32 29CM1035

  • 29CM1035 - SCREW HEX 10MMX35MM

33 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

34 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

35 29CM830

  • 29CM830 - SCREW HEX

36 30H19

  • 30H19 - CLIP

37 30H23

  • 30H23 - CLAMP

38 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

39 6663289

  • 6663289 - FUSE
  • 5A

40 6654806

  • 6654806 - FUSE
  • 15A

41 6654804

  • 6654804 - FUSE
  • 7.5 AMP

42 6654805

  • 6654805 - FUSE 10A

43 7337044

  • 7337044 - PLUG 4 PINS ASSEMBLY

44 7337565

  • 7337565 - HARNESS VALVE

45 6624289

  • 6624289 - STRAP
  • TIE
