New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

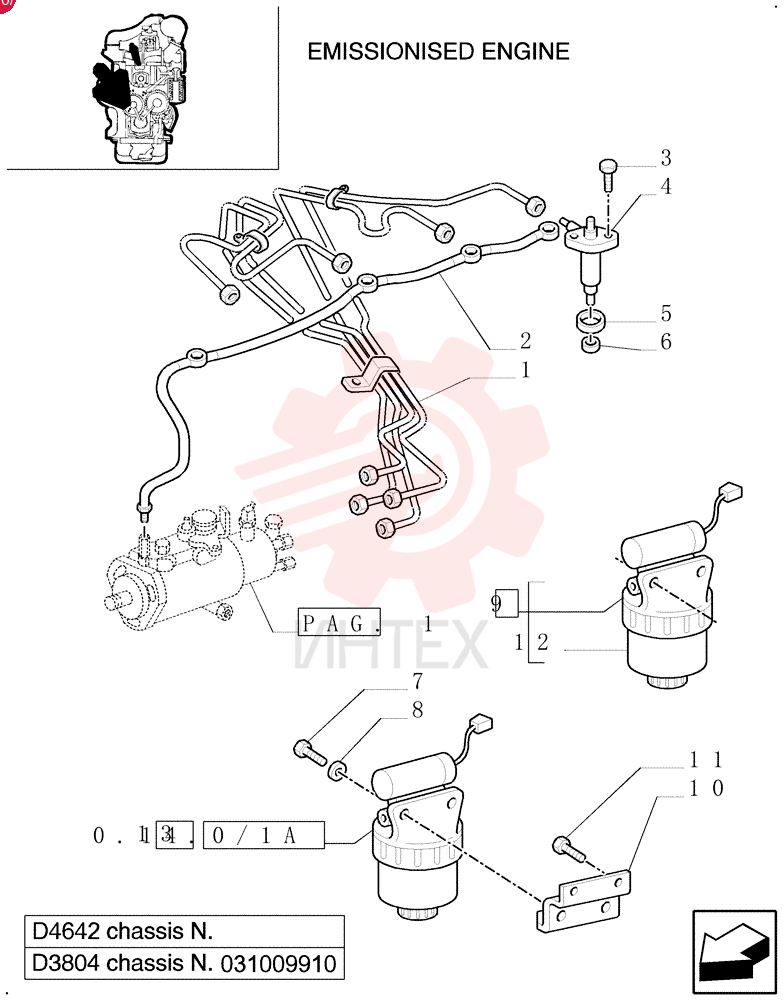

PIPE SET,6 mm DIA x 625 mm L

PIPE SET,6 mm DIA x 625 mm L

PIPE SET,6 mm DIA x 625 mm L

1 87801362

  • 87801362 - PIPE SET
  • 6 mm DIA x 625 mm L

2 87801722

  • 87801722 - TUBE
  • 8.1 mm OD x 482.5
  • 180 mm L

3 87840522

  • 87840522 - BOLT
  • Hex Flg
  • 5/16" - 18 x 1.38"

4 87801043

  • 87801043 - FUEL SYSTEM INJECTOR

5 87801043R

  • 87801043R - REMAN-FUEL INJECTOR

6 87801043C

  • 87801043C - CORE-FUEL INJECTOR

7 87801167

  • 87801167 - FUEL SYSTEM INJECTOR

8 87801167R

  • 87801167R - REMAN-FUEL INJECTOR

9 87801167C

  • 87801167C - CORE-FUEL INJECTOR

10 81806277

  • 81806277 - SEAL
  • 20.83mm ID x 31.75mm OD x 8.13mm Thk

11 81873921

  • 81873921 - SEALING WASHER
  • 7.4mm ID x 13.75mm OD x 1.6mm Thk

12 302264S36

  • 302264S36 - SCREW

13 44877S36

  • 44877S36 - WASHER
  • 10.41mm ID x 19.05mm OD x 2.41mm Thk

14 87802202

  • 87802202 - FUEL FILTER

15 87801487

  • 87801487 - BRACKET

16 83995273

  • 83995273 - FLANGE BOLT
  • Hex
  • 3/8" - 16 x 0.88"

17 87801285

  • 87801285 - FUEL FILTER
  • 79.2mm OD x 152.4mm L

18 87802202

  • 87802202 - FUEL FILTER
