(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

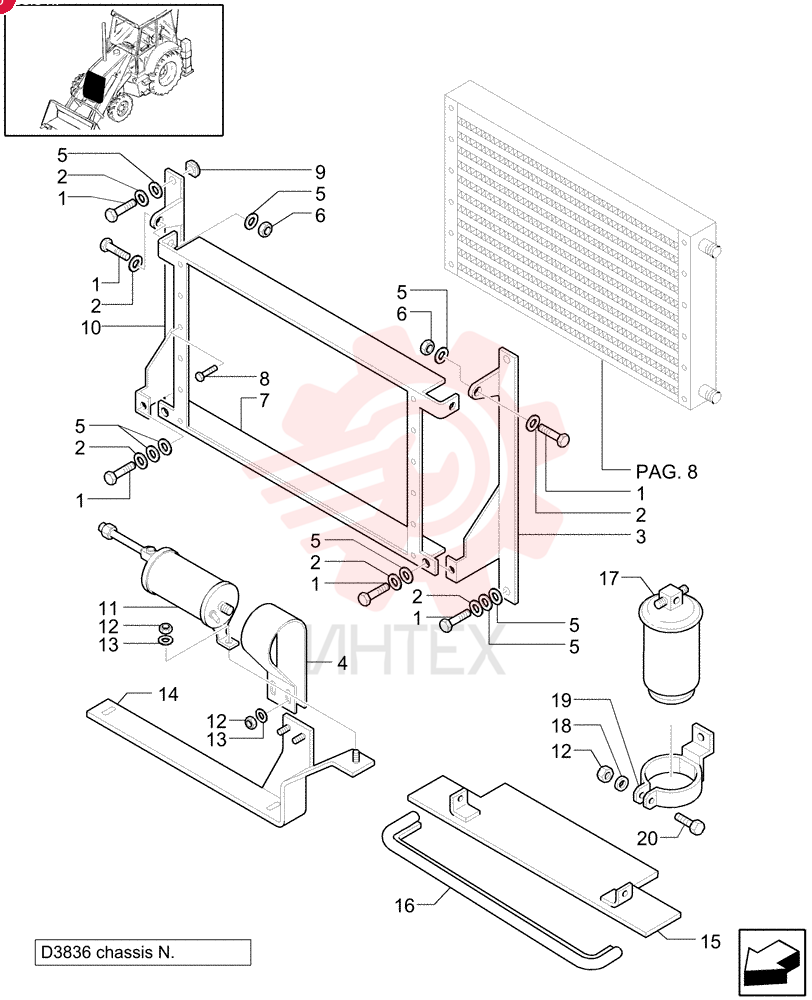

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

2 16043224

  • 16043224 - BOLT
  • Hex
  • M8 x 16mm
  • Cl 8.8

3 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

4 85804092

  • 85804092 - SUPPORT

5 85804066

  • 85804066 - BRACKET

6 10519624

  • 10519624 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

7 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

8 85804075

  • 85804075 - FRAME

9 85804417

  • 85804417 - SELF-TAP SCREW

10 85804416

  • 85804416 - SPRING NUT

11 85804076

  • 85804076 - SUPPORT

12 85804063

  • 85804063 - RECEIVER-DRYER

13 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8

14 10519404

  • 10519404 - WASHER
  • 6.4mm ID x 11.95mm OD x 1.6mm Thk

15 85804071

  • 85804071 - SUPPORT

16 85812050

  • 85812050 - PANEL

17 85812060

  • 85812060 - SEAL

18 85812095

  • 85812095 - RECEIVER-DRYER

19 12643704

  • 12643704 - WASHER
  • 6.15mm ID x 18mm OD x 1.5mm Thk

20 85812049

  • 85812049 - BRACKET

21 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd
