New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

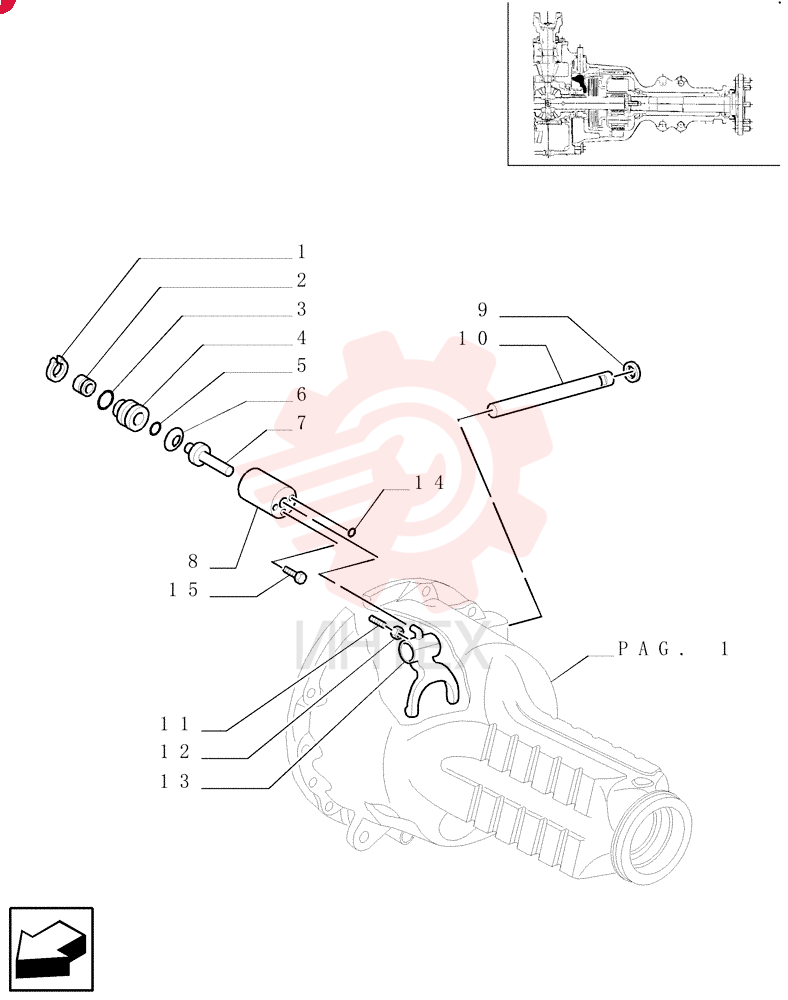

SNAP RING,1.688", Int, #168

SNAP RING,1.688", Int, #168

SNAP RING,1.688", Int, #168

1 86517825

  • 86517825 - SNAP RING
  • 1.688"
  • Int
  • #168

2 86517781

  • 86517781 - PLUG

3 86517780

  • 86517780 - PLUNGER

4 86517824

  • 86517824 - O-RING
  • 0.139" Thk x 1.187" ID
  • -217
  • Cl 6
  • 90 Duro

5 788421

  • 788421 - O-RING
  • 0.07" Thk x 1.489" ID
  • -29

6 86517779

  • 86517779 - SPRING WASHER

7 86517778

  • 86517778 - ROD

8 86517777

  • 86517777 - BODY

9 81800480

  • 81800480 - SEAL
  • 21.21mm ID x 29.21mm OD x 5.59mm Thk

10 86517776

  • 86517776 - SHAFT

11 81804978

  • 81804978 - SET SCREW
  • Hex Hd
  • 3/8"-24 x .97"
  • Cone Pt

12 87308

  • 87308 - JAM NUT
  • Jam
  • 3/8"-24
  • G2

13 86517775

  • 86517775 - FORK

14 86512844

  • 86512844 - O-RING
  • 0.07" Thk x 0.239" ID
  • -10
  • Cl 6
  • 90 Duro

15 83925617

  • 83925617 - BOLT
