New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

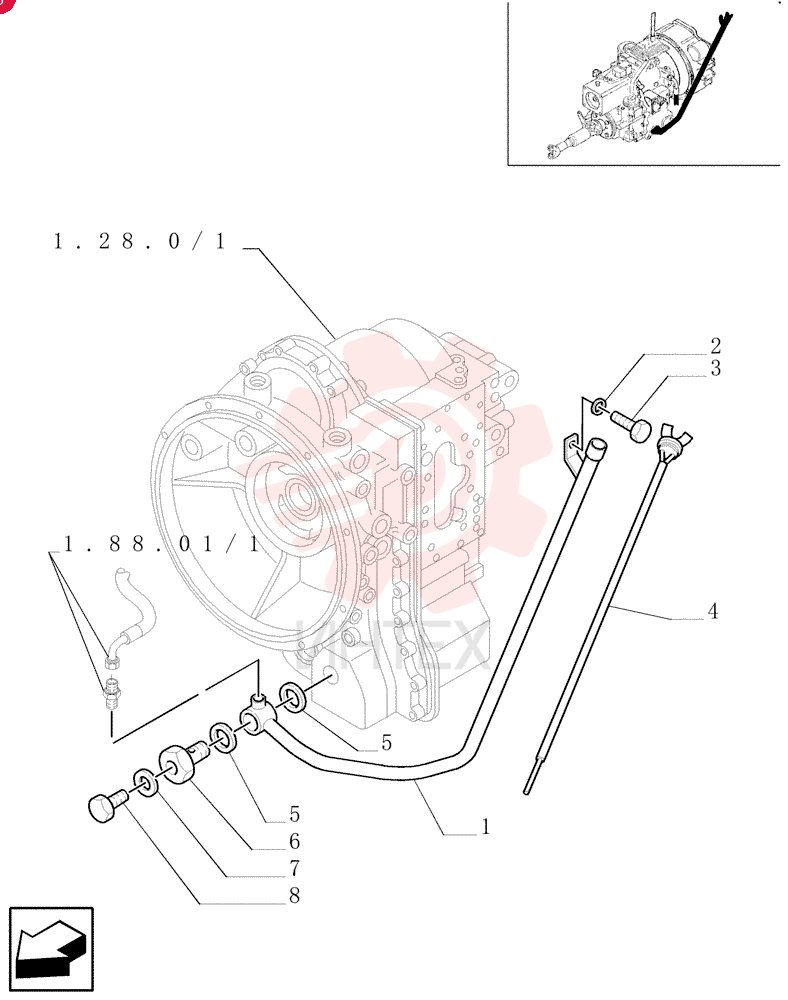

TUBE,25 mm DIA

TUBE,25 mm DIA

TUBE,25 mm DIA

1 85802462

  • 85802462 - TUBE
  • 25 mm DIA

2 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

3 16043124

  • 16043124 - SCREW
  • Hex
  • M8 x 1.25 x 14mm
  • Cl 8.8
  • Full Thd

4 85804849

  • 85804849 - DIPSTICK
  • 837mm L

5 85802349

  • 85802349 - SEAL

6 85802348

  • 85802348 - BANJO BOLT

7 4858610

  • 4858610 - SEAL
  • 18.3mm ID x 24mm OD x 1.5mm Thk

8 10300811

  • 10300811 - PLUG
  • M18 x 1.5 x 14
  • Cl5.8
