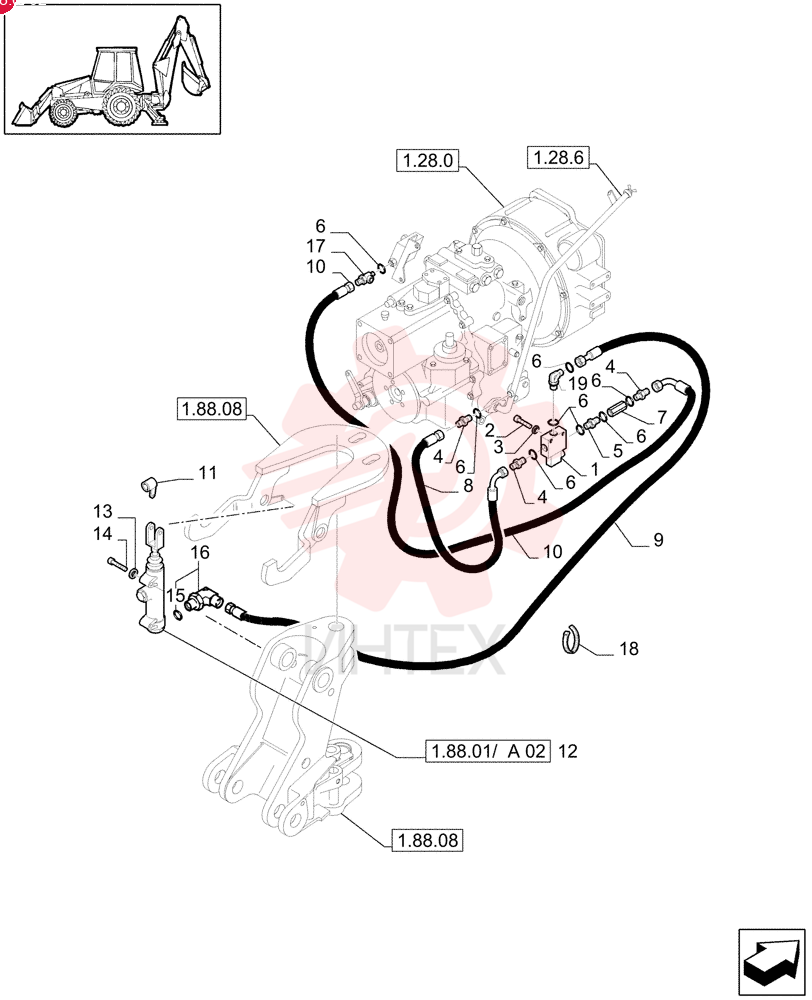

SOLENOID VALVE 85809298 (3)
1 85809298
- 85809298 - SOLENOID VALVE
2 10903221
- 10903221 - SCREW
- Hex
- M6 x 40mm
- Cl 8.8
3 11197774
- 11197774 - BELLEVILLE WASHER
- M6 Bolt Size x 12mm OD x 1.2mm Thk
4 85803312
- 85803312 - HYD CONNECTOR
- 7/16"-20 JIC x 9/16"-18 ORB
5 85803313
- 85803313 - HYD CONNECTOR
- 9/16" - 18 ORB x 9/16" - 18 ORB
6 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
7 85803307
- 85803307 - CHECK VALVE
8 85803309
- 85803309 - HYDRAULIC HOSE
- 450mm lg
9 85824090
- 85824090 - FLEXIBLE HOSE
- 6.4mm ID x 1400mm L
10 85803308
- 85803308 - FLEXIBLE HOSE
- 1000mm lg
11 85802890
- 85802890 - CLAMP
- 28mm
- Coat
- 12.5mm Bolt Hole
- P Type
12 85824088
- 85824088 - HYDRAULIC CYLINDER
13 87362349R
- 87362349R - REMAN-HYD CYLINDER
14 87362349C
- 87362349C - CORE-HYD CYLINDER
15 11193874
- 11193874 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
16 16044424
- 16044424 - BOLT
- Hex
- M8 x 1.25 x 60mm
- Cl 8.8
17 14437585
- 14437585 - O-RING
- 8.00mm ID x 1.50mm
18 85824089
- 85824089 - 90 ELBOW
- 7/16-20 JIC x M10 x 1
19 85806170
- 85806170 - TEE
20 79072960
- 79072960 - CABLE TIE
- 200mm L
21 85803332
- 85803332 - CABLE TIE
- M4.8 x 180
22 85802234
- 85802234 - 90 ELBOW
- 7/16"-20 JIC x 9/16"-18 ORB
